M19 300V Waterproof Circular Data Connector IP67 16 Pin PA66 For Communications Equipment

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE,Rohs,TUV,UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Rated Voltage:	300V	Flame-resistant Rating:	UL94-V0
Material:	PA66,Brass Gold-Plated	Operating Temperature:	-40℃-+105℃
Connecting Type:	Quick Lock	Industry Fields:	Communication Equipment
Highlight:	M19 waterproof circular connector , 16 pin PA66 data connector , IP67 waterproof communication connector

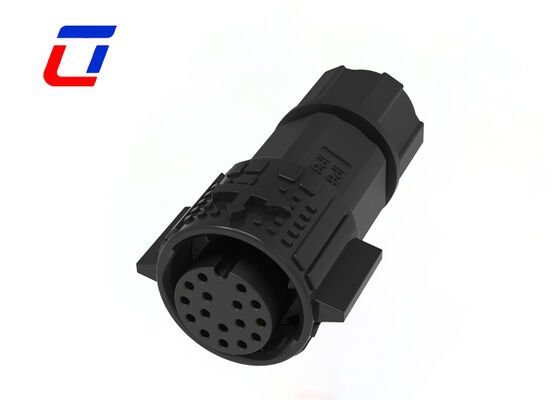

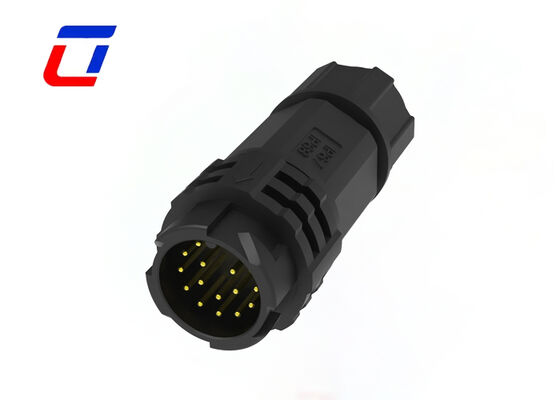

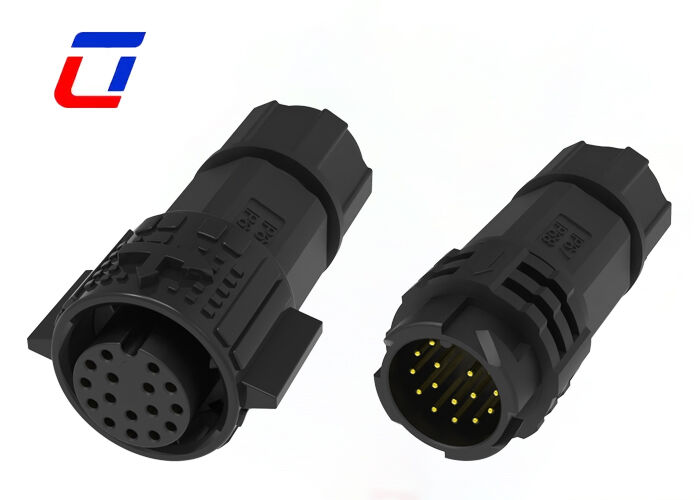

M19 300V Waterproof Circular Data Connector IP67 16 Pin PA66 For Communications Equipment

Product Overview

This M19 16-pin circular data connector provides reliable, waterproof connectivity solutions for communications equipment with advanced features and robust construction.

Self-locking Quick Connect: Thread-free mating system locks automatically upon insertion and unlocks with gentle pull. Vibration-resistant and anti-loosening design ensures stable connection for uninterrupted communication signal transmission.
IP67 Waterproof & Dustproof: Multi-layer sealing gaskets provide IP67 protection, effectively blocking dust, splashing water, and condensation. Operates stably in humid, dusty, and harsh environments.
16-Pin Multi-Channel Transmission: Supports parallel transmission of multi-channel communication signals with 300V rating. One connector replaces multiple ports to simplify wiring and save installation space.
PA66 Engineering Plastic Housing: High-strength, flame-retardant material with excellent toughness, impact resistance, and anti-aging properties. Resistant to bumps and pulling during equipment operation.
Gold-Plated Brass Contacts: Low contact resistance, oxidation resistance, and corrosion resistance. Maintains stable conductivity after repeated plugging cycles and reduces signal attenuation.
Communications Equipment Focus: Specifically developed for communication signal transmission requirements with strong anti-interference performance.

Main Features

Push lock quick release system
Multicore options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Cable assembly service supported
OEM/ODM welcome

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Technical Specifications

Electrical Parameters
Number of Poles	16Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: How many materials you can provide?

A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirements to choose the material.

Q: Can I have custom label?

A: Yes, of course, you can make your own private label and package. If you need to design the packaging, we also have professional designer to serve you.
