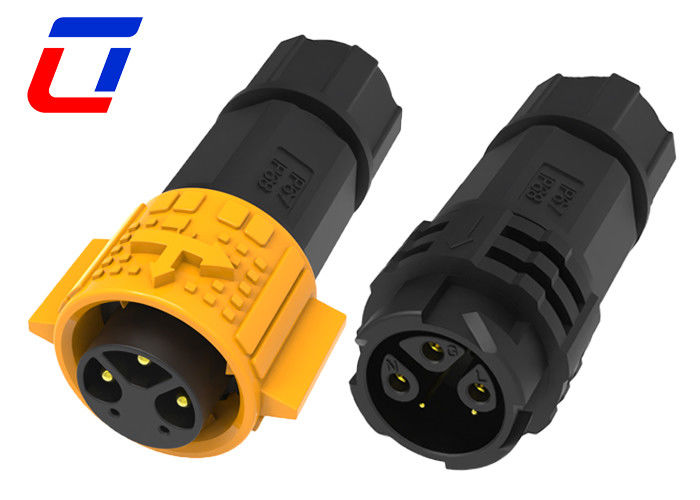

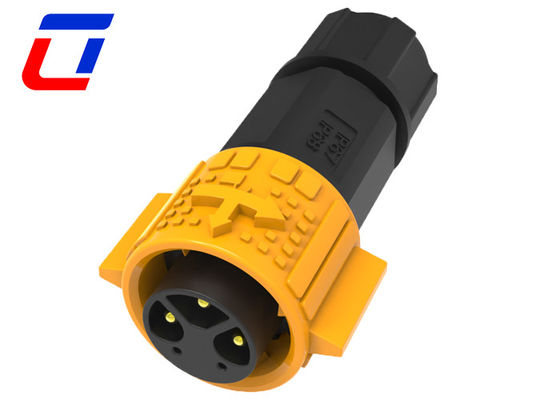

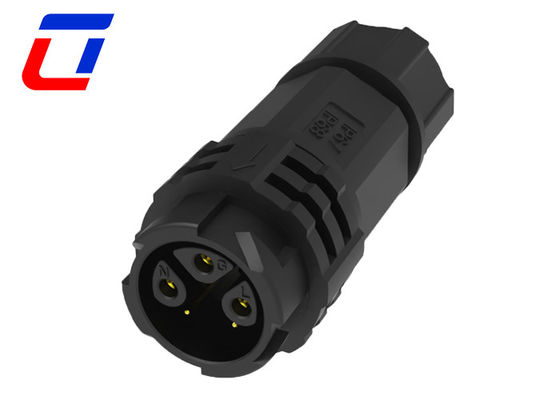

3+2 Pin Waterproof Male Female Connector 15A Circular Power Signal Connector

3+2Pin Waterproof Male Female Connectors , Power Signal Combined Waterproof Circular Connector

Quick Details of 5Pin waterproof Connector

  This M19 model connectors is specialized for various power signal comblined applications, easy ooperation design in push locking system, just need a second to insert, then it will lock automatically.

Power & Singal together in one set design is getting more and more popular to many device, which solve the power and signal connector separated using perfectly, especially for the space limited application.

Cable assembly available for Multi pin Connectors is supported in Ulinkcon,just please share cable request in details, custom service available.

Main Features

• Push lock quick release system
• Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
• 3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
• 6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
• Field assembly version:both wire to wire and wire to board options
• Current rated 20A for long time working
• Cable assembly service supported, welcome to custom
• OEM/ODM welcome
• Item Name : M19 Waterproof Cable Connector
• Specifications : Straight male-female mating, elbow male-female mating, front-mounted wire -to- board, rear-mounted wire -to-board,integrated injection molding
• Coupling way: Self-locking
• Pins number :2-22 pins
• Plug : Assembly type and Injection type available
• Socket: Front Mount, Back Mount, PCB Mount
• Waterproof grade: IP67/ IP68
• Connector type :Assembly lock screw；Assembly welding；Injection molding with cable
• Wire gauge: 1.0-6.0mm² (18AWG-10AWG)
• Wiring range Assembled: 6. 0mm~16mm；Molding 6. 0mm”16.5 mm
• Durability :3000 times
• Applicabletemperature: -40℃~105​

Application industries

• Communications Application
• product coding machines
• inventory product coding
• inkjet systems
• Solar System
• industrial inkjet equipment
• Electric power equipment
• Laboratory forensic&pathology equipment
• Communications equipment
• Heavy machinery

Production Dimension

More Technical Details

FAQ

Q1:What is rated voltage?

A1:Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.

Q2:What is rated Current?

A2: Rated current, also known as operating current. With the rated voltage, as in the case below the rated current, air plug in general can work properly. Plug in the aviation design process, through the thermal design of the connector to meet the requirements of the rated current, because in contact with on a current flow out of date, due to conductor resistance and contact resistance, contact on will be heat. When the heat exceeds a certain limit, the plug will damage the insulation and the formation of air exposure on the surface of the coating to soften, resulting in failure.

Q3:How to choose the suitable connector?

A3: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style need to pre-cable or not. If needed,then confirm the next.
* Confirm Cable guage
* Confirm Cable Length and Material.

       Q4:What is the MOQ ?

       A1:Our MOQ is 1pcs.
       Q5:When you ship my order?

       A2:Normally 2-3 days after receiving your payment, but it can be negotiated based on order qty and production schedule.
       Q6:Can I have custom label?

       A3:Yes,of course,you can make you own private label and package,if you need to design the packaging ,we also have professionaldesigner to serve you.
