3+4 Pin 15A Waterproof Male Female Connectors , Waterproof Plug And Socket
Main Features
- Push lock quick release system
- Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
- 3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
- 6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
- Field assembly version:both wire to wire and wire to board options
- Current rated 20A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
Application industries
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery

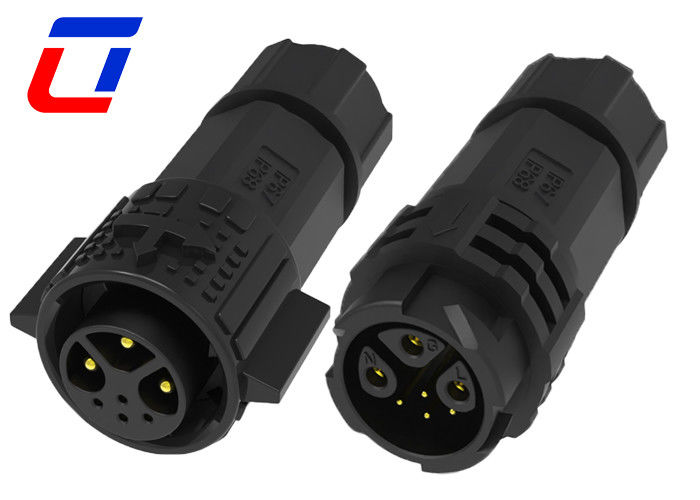

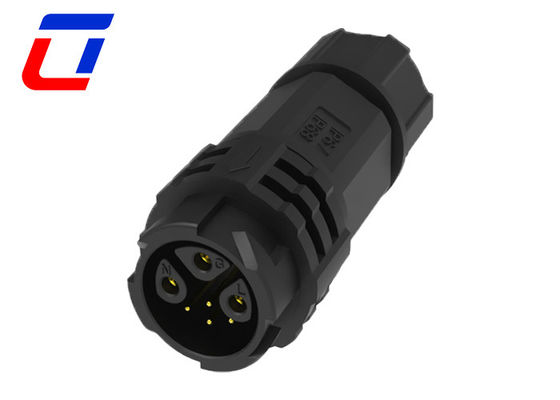

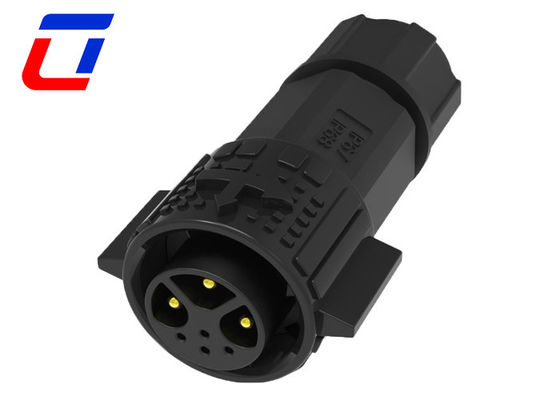

Quick Details of 7 Pin waterproof Connector
This M19 model connectors is specialized for various power signal comblined applications, easy ooperation design in push locking system, just need a second to insert, then it will lock automatically.
Power & Singal together in one set design is getting more and more popular to many device, which solve the power and signal connector separated using perfectly, especially for the space limited application.
Cable assembly available for Multi pin Connectors is supported in Ulinkcon,just please share cable request in details, custom service available.
| Product Type Features |
| Connector System |
Cable-to-Cable |
| Sealable |
Yes |
| Connector & Contact Terminates To |
Wire & Cable |
| Circular Connector Type |
Plug, Receptacle |
| Shell Type |
Plastic Shell |
| Product Type |
Connector Kit |
| Configuration Features |
| Number of Positions |
3+4 |
| Number of Signal Positions |
4 |
| Contacts Preloaded |
Yes |
| Electrical Characteristics |
| Operating Voltage (VAC) |
600V max. |
| Operating Voltage (VDC) |
600V max. |
| Body Features |
| Shell Material |
PA66 |
| Circular Connector Insulation Material Type |
Low Fire Hazard Thermoplastic |
| Hermetically Sealed |
Yes |
| Entry Style |
Side |
| Environmental Protection Type |
Elastomer Sealed, Hermetically Sealed |
| O-Ring Material |
Elastomer Sealed, Hermetically Sealed |
| Environmental Protection |
Yes |
| Contact Features |
| Contact Current Rating (Max) (A) . |
15A max. |
| Circular Connector Contact Type |
Pin-Socket |
| Mechanical Attachment |
| Connector Mounting Type |
Cable Mount (Free-Hanging) |
| Mating Alignment Type |
Keyed |
| Mating Retention |
With |
| Dimensions |
| Wire Size (AWG) |
20AWG,18AWG,16AWG,14AWG, |
| Usage Conditions |
| Operating Temperature Range (°C) |
-40 ~105°C |
| IP Water Sealing Level |
IP67 |
| IP Dust Sealing Level |
6 |
| Industry Standards |
| UL Flammability Rating |
UL 94V-0 |
Production Dimension
More Technical Details
FAQ
