10A 300V M16 IP67 Waterproof Connector Wire To Board 300V Industrial Male Female Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Contacts:	4 Pin	Current:	10A For Power
Voltage Rating:	300 V	Flame-resistant Rating:	UL94-V0
Contact Material:	Brass Gold-Plated	Sealing Material:	Sealing Gasket
Highlight:	10A 300V M16 waterproof connector , IP67 wire to board connector , 300V industrial male female connector

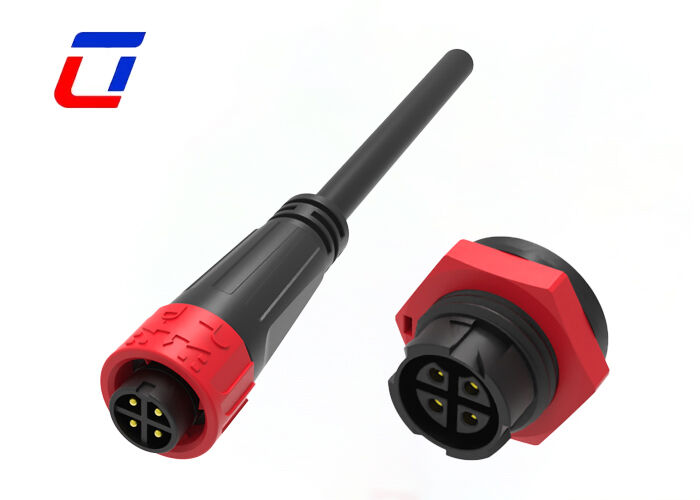

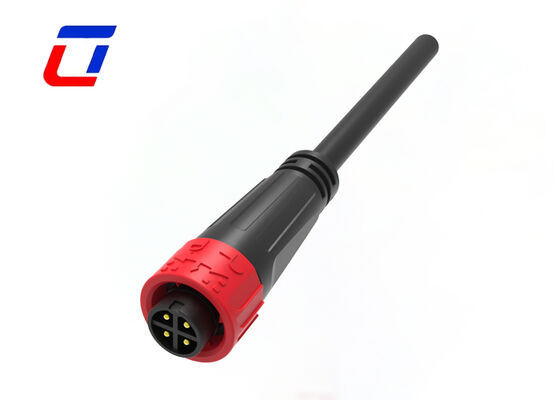

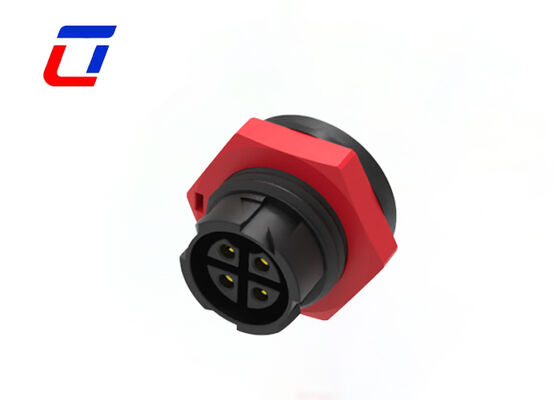

10A 300V M16 IP67 Waterproof Connector Wire To Board 300V Industrial Male Female Connector

This M16 wire-to-board waterproof connector is rated 10A, 300V, featuring industrial male and female matched connectors. It adopts a push-lock structure without threads. Push Lock quick mating allows tool-free fast connection, designed for linking cables to PCB boards. Rated IP67, it protects against dust, rain and condensation for humid and dusty industrial environments.

Product Overview

4 Pin Waterproof Connector, M16 10A PA66 Push Locking Wire Board Connectors

Wire-To-Board Solution Simplifies PCB Layout: Board receptacle soldered to PCB while cable side can be quickly plugged. Reduce complicated wiring and save internal space, ideal for modular industrial equipment design.
Thread-Free Push-Lock Mechanism: Push-lock self-locking design with no thread twisting. Push to lock, tool-free hand mating, greatly improving mass assembly and on-site maintenance efficiency.
Stable Electrical Performance 10A,300V: Industrial current & voltage rating. Contacts deliver great conductivity and low temperature rise to meet power supply needs of medium-low power industrial devices.
IP67 Industrial Dust & Water Protection: Precision sealing gasket design, dust-tight and splash-proof against rain and condensation. Protect PCB circuits and reduce short circuit hazards under humid conditions.
Vibration Resistant For Harsh Industrial Conditions: High-strength engineering plastic housing with wide temperature and impact resistance. Nickel-plated contacts maintain stable contact under continuous vibration to avoid poor connection.
Male & Female Pairs, Wide Application: Matched male and female connectors with standard M16 circular size, suitable for industrial control modules, sensors, automation units and outdoor monitoring instruments for board connection.

Main Features

Push lock quick release system, hassle-free operation
Multic-core are available for selection: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
Field assembly version: wire to wire / wire to board
High current rated waterproof connector good choice up to 10A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters

Number of Poles	4Pin waterproof connector
Current Rating	10A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Production Dimension

More Technical Details

Frequently Asked Questions

Q1: How many materials you can provide?

A1: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirements to choose the material.

Q2: Do you support product customization?

A2: Yes, customization is available for specifications, colors and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.

Q3: How do you guarantee product quality?

A3: We implement strict quality control throughout the production process: raw material inspection, in-line testing, and final sampling inspection. All products come with a 12-month warranty against manufacturing defects.
