Name: 20A IP67 Waterproof Quick Lock Electrical Connectors M19 5 Pin Plastic Male Female Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Male Female Connector

20A IP67 Waterproof Quick Lock Electrical Connectors M19 5 Pin Plastic Male Female Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	5 Pin	Rated Voltage:	300V
Flame-resistant Rating:	UL94-V0	Material:	Nylon
Protection Level:	IP67	Operating Temperature:	-40℃~+105℃
Highlight:	20A waterproof electrical connectors , M19 5 pin quick lock connector , IP67 male female plastic connector

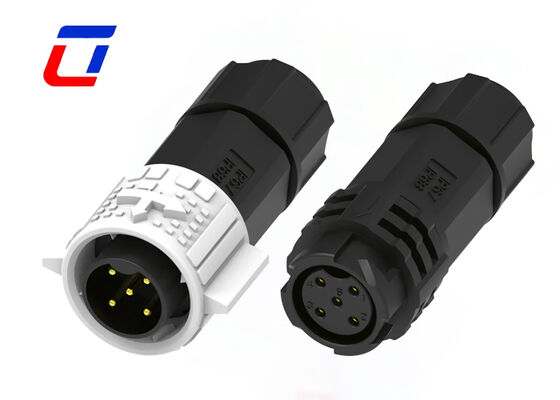

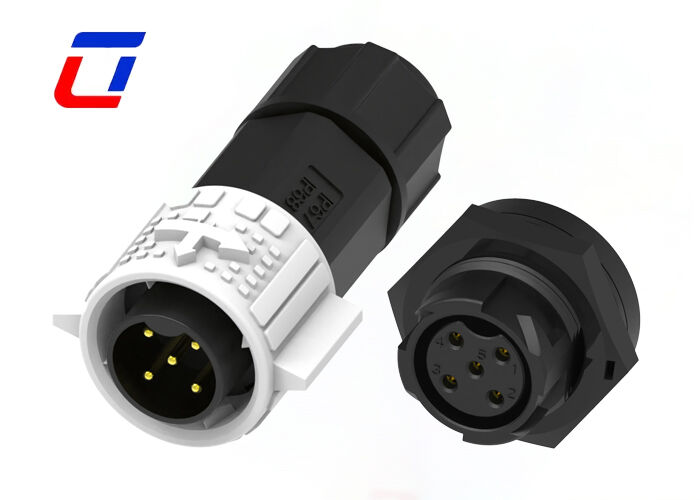

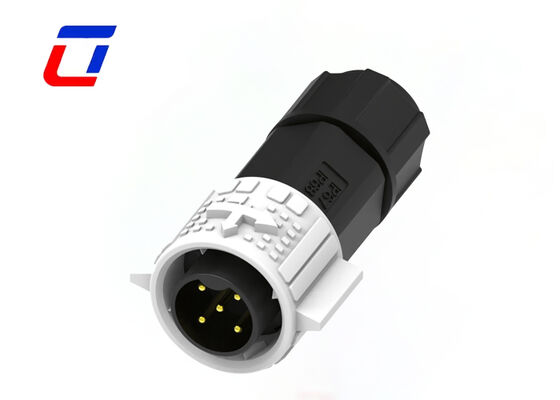

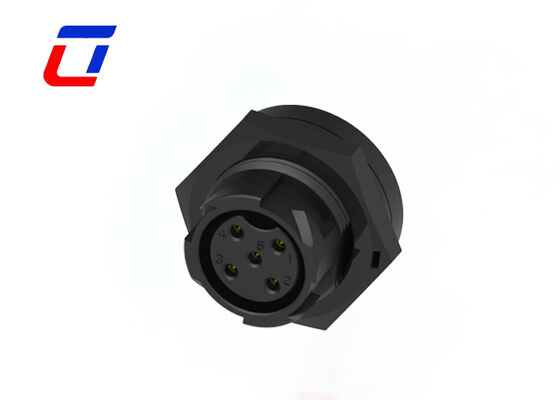

20A IP67 Waterproof Quick Lock Electrical Connectors M19 5 Pin Plastic Male Female Connector

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Quick Description

Ulinkcon M19 5Pin IP67 waterproof quick-lock electrical connector is specially optimized for 20A high-current power transmission. Adopting full-plastic male and female insulation structure without complex data function, it focuses purely on stable outdoor electrical power connection. Equipped with quick self-locking design and IP67 all-weather protection, it features strong load capacity, easy installation and high safety, ideal for outdoor electrical equipment and lighting power supply systems.

5-Pin Pure Electrical Layout & 20A High Current:Optimized 5-pin power-only layout with enlarged conductive area supports 20A continuous high-current transmission. Low heat generation and low voltage drop ensure stable pure power output without signal circuit load, perfectly meeting high-power low-voltage power supply demands.
IP67 Grade Waterproof & Dustproof:Built-in precision sealing gaskets form a fully enclosed cavity to achieve IP67 protection. It effectively resists rain splash, water accumulation, dust and moisture erosion, ensuring reliable all-weather operation for externally installed and wall-mounted outdoor equipment.
Full-Plastic Insulated Male & Female Structure:Adopts high-strength insulating plastic with no exposed metal parts. Excellent insulation performance prevents electric leakage, greatly improving safety performance for outdoor electrical wiring projects.
Tool-Free Quick Lock Connection:Standard snap self-locking structure enables fast plug-and-lock assembly without tools. It improves efficiency for mass wiring and daily maintenance. The reinforced locking design is vibration-proof and anti-loosening to ensure uninterrupted power connection.
Low-Loss Pure Power Transmission:Pin structure is professionally optimized for high-current power transmission. Free of signal circuit interference, it avoids abnormal heating, power attenuation and voltage instability, ensuring long-term stable full-load operation of outdoor electrical devices.
Weather Resistance & Wide Engineering Compatibility:UV-resistant, temperature-resistant and anti-aging housing plus corrosion-resistant conductive pins adapt to harsh outdoor environments. Widely applied in outdoor lighting power supply, industrial electrical equipment and garden power modules. Strict factory testing guarantees stable mass supply quality.

Electrical Parameters
Number of Poles	5Pin
Current Rating	20A max.
Voltage Rating	300VAC max
Durability Voltage	1000VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Design Sketch
