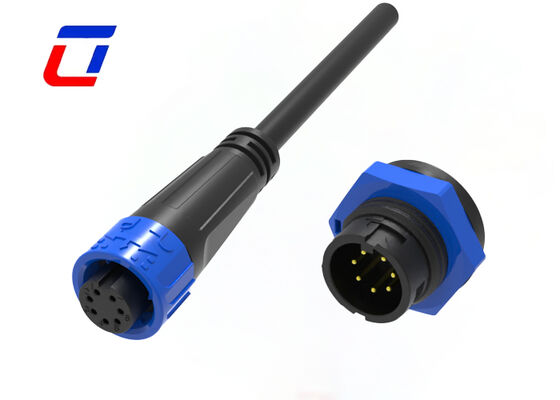

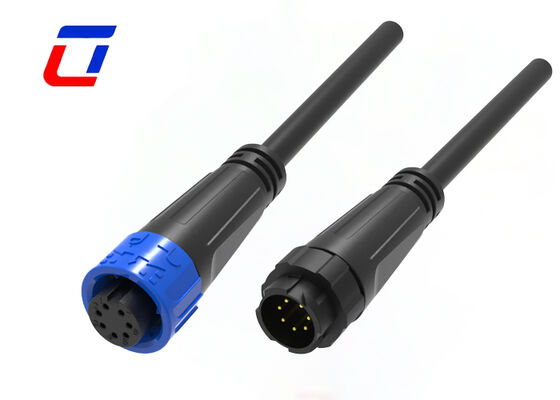

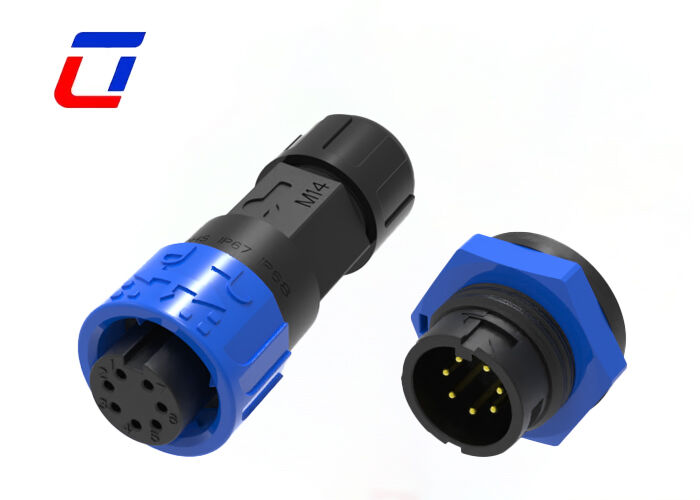

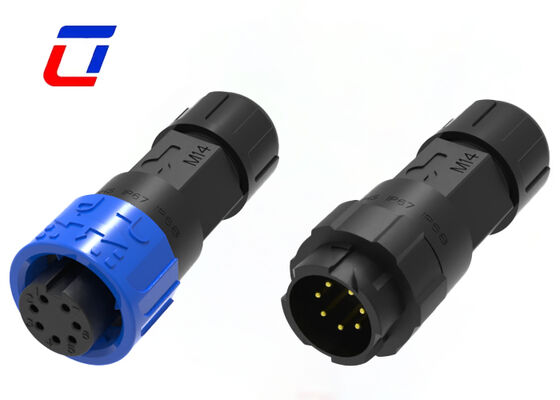

Low Voltage 300V M16 7 Pin Data Quick Connector IP67 Waterproof Male Female Connector China

Low Voltage 300V M16 7 Pin Data Quick Connector IP67 Waterproof Male Female Connector China

  • Low Voltage 300V M16 7 Pin Data Quick Connector IP67 Waterproof Male Female Connector China
  • Low Voltage 300V M16 7 Pin Data Quick Connector IP67 Waterproof Male Female Connector China
  • Low Voltage 300V M16 7 Pin Data Quick Connector IP67 Waterproof Male Female Connector China
  • Low Voltage 300V M16 7 Pin Data Quick Connector IP67 Waterproof Male Female Connector China
Low Voltage 300V M16 7 Pin Data Quick Connector IP67 Waterproof Male Female Connector China
Product Details:
Place of Origin: China
Brand Name: Ulinkcon
Certification: CE/Rohs/TUV/UL
Model Number: M16
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: 1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time: 3~6working days
Payment Terms: T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability: 100000 pairs Montly
Contact Now
Detailed Product Description
Pin: 7Pin Current Rating: 5A 300V
Protection Level: IP67 Flame-resistant Rating: UL94-V0
Contact Material: Brass Gold-Plated Specific Application Scenarios: Irrigation Systems/Industrial Sensors
Highlight:

Low Voltage 300V M16 Connector

,

7 Pin Data Quick Connector

,

IP67 Waterproof Male Female Connector

5A M16 Nylon 7 Pin Waterproof Connector 300V Data Quick Lock Connector
Product Overview
1. Safe Low-Voltage & Multi-Channel Data Transmission
Designed for 300V low-voltage safe operation, this M16 7-pin connector supports simultaneous multi-channel data signal transmission. The reasonable pin layout effectively avoids signal crosstalk and data loss. Featuring low power consumption and stable signal accuracy, it is perfectly tailored for intelligent equipment and industrial data connection scenarios.
2. User-Friendly Quick Connection Design
Adopts plug-and-play quick connection structure with precise male-to-female alignment. Tool-free installation enables fast wiring and efficient equipment debugging. It supports frequent disassembly and routine maintenance, bringing high compatibility and convenient operation for daily engineering use.
3. IP67 Professional All-Weather Protection
Built with high-precision sealing construction to reach IP67 waterproof and dustproof grade. It effectively resists rainwater immersion, dust accumulation, moisture and fog erosion in outdoor environments. The tight sealing prevents pin oxidation, rust and short-circuit failure, ensuring stable performance in harsh working conditions.
4. Safe & Sturdy Insulated Housing
Integrally molded with high-quality insulating engineering material, the housing provides excellent electrical insulation to prevent electric leakage and ensure low-voltage operation safety. With outstanding wear resistance, extrusion resistance and aging resistance, it maintains stable structure without cracking or loosening after long-term service.
5. Universal M16 Size & Versatile Application
Standard M16 circular size is highly compatible with most industrial controllers, outdoor electrical devices and intelligent instruments. Widely applied in data acquisition equipment, intelligent control terminals, outdoor lighting systems, security devices and small automated wiring systems.
Main Features
  • Push lock quick release system for easy installation
  • Multiple core options: 2Pin, 3Pin, 4Pin, 5Pin, 7Pin, 8Pin, 24Pin configurations
  • Field assembly versions: wire to wire and wire to board
  • Cable assembly service supported with custom options available
  • OEM/ODM services welcome
Electrical Parameters
Number of Poles 7Pin
Current Rating 5A max.
Voltage Rating 60VAC max
Durability Voltage 500VAC @ 60 s.
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Operation Parameters
Voltage Rating 300VAC max
Current Rating 5A max
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 8.0mm ~ 10.0mm
Max Cable Cross Section Area 0.5mm² ~ 2.5mm²
Application Industries
  • Growth Lights
  • Communications Equipment
  • Product Coding Machines
  • Inventory Product Coding Systems
  • Inkjet Systems
  • Solar Systems
  • Industrial Inkjet Equipment
  • Electric Power Equipment
  • Laboratory Forensic & Pathology Equipment
  • Heavy Machinery
Product Images
M16 7-pin waterproof connector design specifications and technical details M16 7-pin waterproof connector application and installation examples
Frequently Asked Questions
How to track my shipment?

Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.

Where is your factory located?

Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.

 Can I pay after receiving the goods?

 For first - time cooperation, advance payment is required to ensure production smoothness. For long - term trusted clients, flexible payment terms can be discussed after several successful orders.
