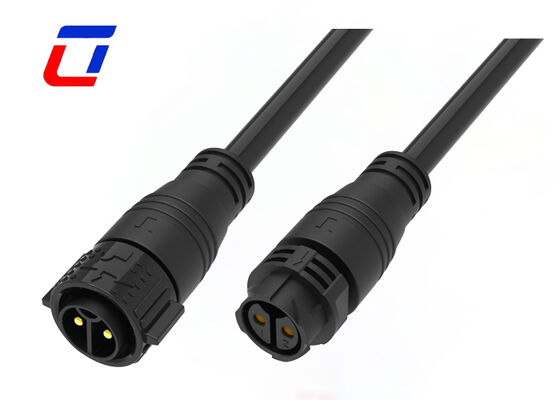

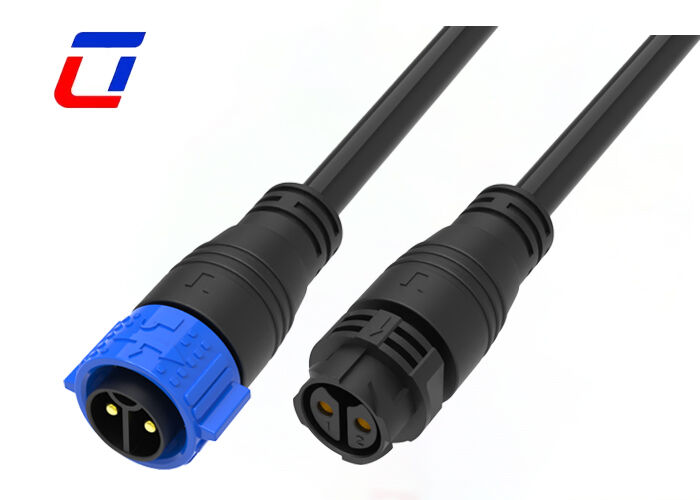

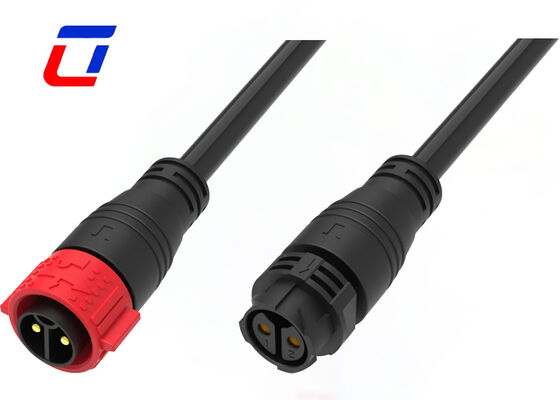

Name: PA66 M25 IP67 2 Pin Waterproof Connector 600V Quick Release Molded Wire Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Home Products Waterproof Male Female Connector

PA66 M25 IP67 2 Pin Waterproof Connector 600V Quick Release Molded Wire Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	2PIN	Current:	50A For Power
Flame-resistant Rating:	UL94-V0	Waterproof Rating:	IP67
Temperature Range:	-40℃~+105℃	Material:	Nylon
Highlight:	PA66 M25 waterproof connector , 2 pin quick release wire connector , 600V molded male female connector

M25 2 Pin High Current Power Connector 600V Waterproof Cable Connector

Product Overview

M25 2 Pin Waterproof DC Power Connector 50A Male To Female Connectors

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin, 5+2Pin and 2+20Pin available
Field assembly version: both wire to wire and wire to board options
High current rated waterproof connector good choice up to 50A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Product Description

1. Stable Electrical Specifications
Rated working voltage up to 600V, 2-pin layout compatible with AC & DC power supply, no overheating under long-lasting heavy load
Conductive pins deliver low contact resistance and minor power loss, guaranteeing steady current output for high-power equipment
2. Robust PA66 Integrated Housing
Made of modified PA66 engineering plastic, the housing boasts great toughness and impact resistance, resisting crack and deformation over long service time
Outstanding insulation performance prevents electric leakage under high voltage, stable performance under extreme high & low temperature
3. IP67 Full Sealed Waterproof & Dustproof
Integrated elastic sealing gasket fits tightly to block rainwater, dust, mist and grease from penetrating the interior
IP67 protection grade supports temporary water immersion and dusty outdoor working conditions without short circuit or bad contact
4. Quick Release Plug & Disconnect Design
One-click quick release structure enables tool-free disassembly, greatly saving time for installation and maintenance
Buckle locking mechanism keeps tight connection, avoiding loose contact and power cut under vibration
5. Molded Integrated Cable Connector
Integrated molded cable end features strong pull resistance, effectively preventing wire breakage and water ingress at wiring joint
Universal M25 dimension fits most wiring connection of outdoor electrical and industrial control devices
6. Wide Application Range
Perfect for photovoltaic systems, outdoor lighting, energy storage power, mini industrial machinery and DC power supply instrument

Electrical Parameters

Number of Poles	2Pin waterproof connector
Current Rating	50A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC max
Current Rating	50A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max. Cable Cross Section Area	0.5mm² ~ 6.0mm²

Production Dimension

More Technical Details

Frequently Asked Questions

Are your products certified? What certifications do you have?

All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

Can I have custom label?

Yes, of course, you can make your own private label and package. If you need to design the packaging, we also have professional designer to serve you.

What is your Minimum Order Quantity (MOQ)?

The MOQ varies by product type—usually 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long-term cooperation.
