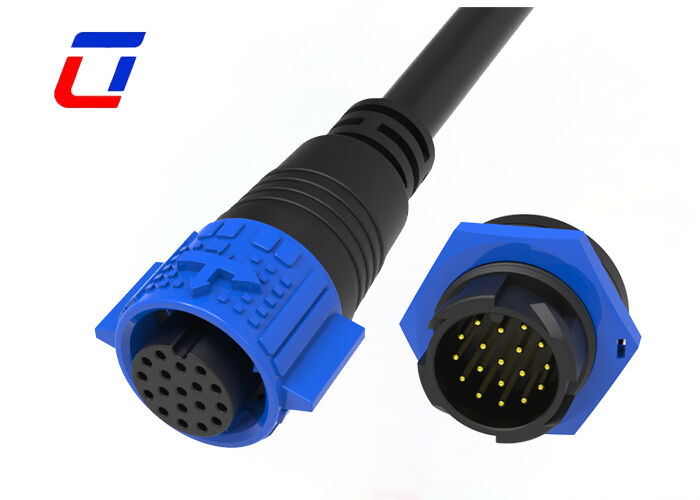

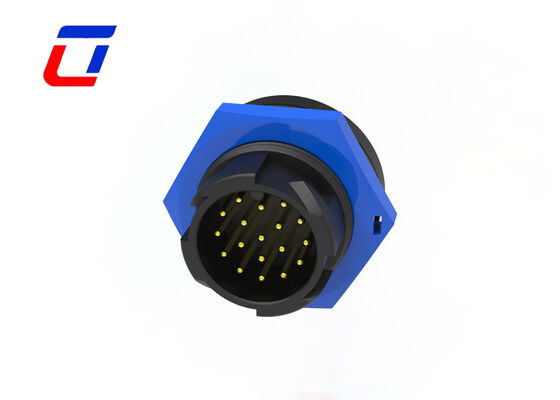

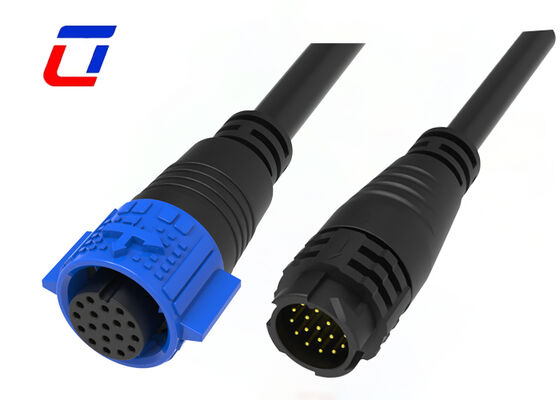

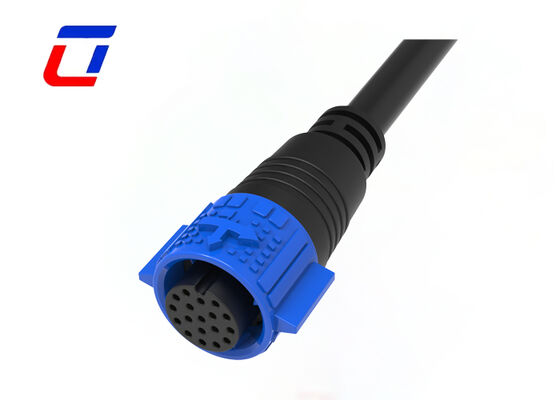

Name: M19 IP67 18 Pin Cable Connector Outdoor Waterproof Quick Connector To Communications Equipment
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Male Female Connector

M19 IP67 18 Pin Cable Connector Outdoor Waterproof Quick Connector To Communications Equipment

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	18Pin	Current Rating:	5A For Signal
Rated Voltage:	300V	Material:	Nylon
Flame-resistant Rating:	UL94-V0	Sealing Material:	Sealing Gasket
Highlight:	M19 IP67 waterproof connector , 18 pin quick connector , outdoor waterproof cable connector

IP67 Waterproof Connectors M19 18 Pin Wire To Board For Data

Product Overview

18 Pin Cable Connector M19 Wire To Wire / Board Outdoor Quick Lock Signal Connectors

Key Features

Specification: M19 standard, 18-pin design, specially adapted for signal transmission of communication equipment
Protection: IP67 waterproof and dustproof, resistant to outdoor rain and dust, suitable for harsh outdoor environments
Connection: Quick-connect design, smooth plugging and firm locking, improving on-site installation and maintenance efficiency
Transmission: Pins made of high-conductivity material, stable signal transmission, reducing interference and attenuation
Durability: UV-resistant, impact-resistant shell, high and low temperature resistant, suitable for long-term outdoor use
Application: Directly connect to various outdoor communication equipment, such as base stations, outdoor switches, etc.

Technical Specifications

Parameter	Specification
Number of Poles	18Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Configuration Options

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 5A for long time working
Cable assembly service supported
OEM/ODM welcome

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Product Design

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: How to buy your products?

A: You need to do as followings:

Confirm Current Rating and Number of Contacts
Confirm Assembly style
Confirm Cable Wire gauge
Confirm Cable Length and Material

Q: Are your products certified? What certifications do you have?

A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
