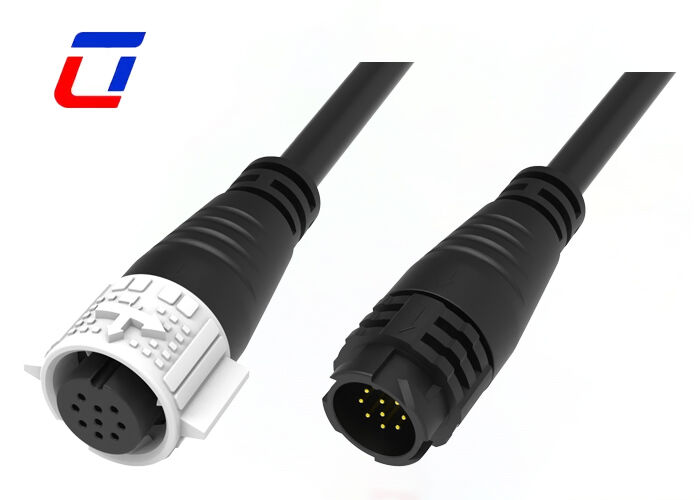

Name: IP67 M19 9 Pin Push Locking Cable Male Female Connector ODM Outdoor Waterproof Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Male Female Connector

IP67 M19 9 Pin Push Locking Cable Male Female Connector ODM Outdoor Waterproof Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	9Pin For Data	Current Rating:	5A
Material:	PA66	Protection Level:	IP67
Contact Material:	Brass Gold-Plated	Temperature:	-40~105℃
Highlight:	IP67 waterproof M19 connector , 9 pin push lock connector , outdoor waterproof male female connector

M19 9 Pin Male Cable Connector - Industrial Waterproof IP67 Connector

9 Pin Data Connector M19 IP67 Waterproof Connector

Main Features

Push lock quick release system for easy connection
Multicore options: 2Pin, 3Pin, 4Pin, 5Pin for Power applications
Power signal combined options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
Signal options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
Field assembly version with wire to wire and wire to board options
5A current rating for continuous operation
Cable assembly service supported with custom options available
OEM/ODM services welcome

Application Industries

Growth Lights
Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Product Overview

IP67 Waterproof & Dustproof
IP67 rated protection, suitable for outdoor and harsh industrial environments, stable and safe.

M19 Standard Circular Design
Standard M19 circular size, good compatibility, easy installation and replacement.

9-Pin Data Connector
9-pin configuration dedicated for stable data and signal transmission in control systems.

Push Locking Mechanism
Push-lock quick connection, tool-free, fast plugging and stable connection.

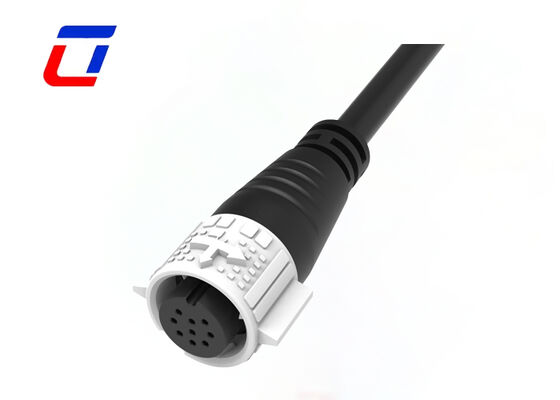

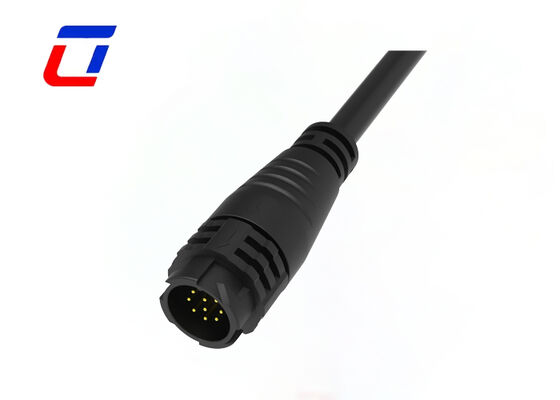

Male & Female Cable Type
Male and female butt-joint for cable connection, convenient for on-site wiring and maintenance.

ODM Supported
Professional manufacturer supports ODM customization to meet different project requirements.

Electrical Parameters

Number of Poles	9Pin
Current Rating	5A max
Voltage Rating	60VAC max
Durability Voltage	500VAC @ 60s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.

Q: How to track my shipment?

A: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real - time status online or contact our team for updates.

Q: How can I get samples?

A: We are pleased to provide samples, with freight costs covered by the customer. Please provide your courier account number and detailed address for immediate sample shipment.

Q: Are your products certified? What certifications do you have?

A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
