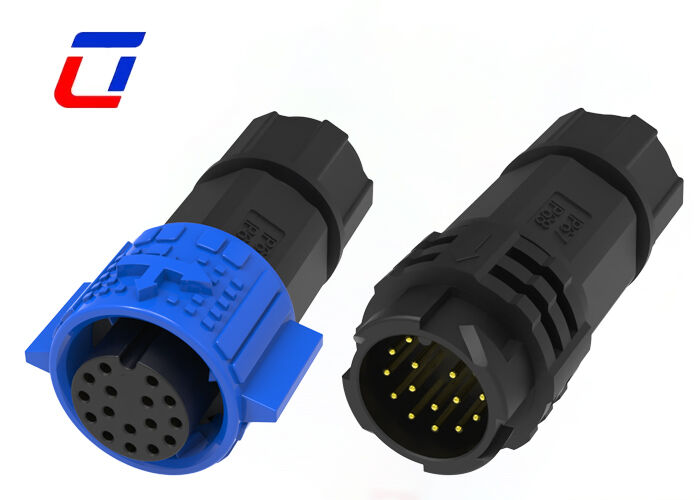

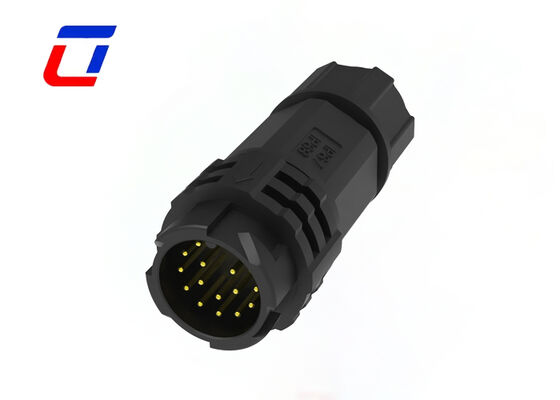

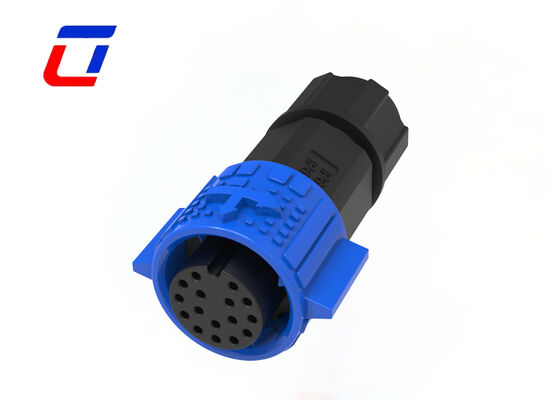

Name: M19 16 Pin Outdoor Lighting Connectors Low Current PA66 Cable To Cable Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Male Female Connector

M19 16 Pin Outdoor Lighting Connectors Low Current PA66 Cable To Cable Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Current Rating:	5A	Pin:	16Pin
Rated Voltage:	300V	Material:	Nylon
Operating Temperature:	-40℃-+105℃	Protection Level:	IP67
Highlight:	M19 16 pin waterproof connector , PA66 cable to cable connector , low current outdoor lighting connector

Product Overview

M19 IP67 Circular Connectors Male To Female Industrial Connector

Core Specifications

M19 specification with 16-pin design for low-current transmission
PA66 material construction for weather resistance and corrosion protection
Specifically designed for outdoor lighting applications
IP67 rated for dust and moisture protection in outdoor environments

Technical Features

Push lock quick release system for easy installation
Multiple pin configurations available: 2Pin-18Pin options
Power and signal combined configurations: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin, 2+20Pin
Field assembly versions: wire-to-wire and wire-to-board options
5A current rating for continuous operation
Cable assembly service and OEM/ODM support available

Application Industries

Growth Lights
Communications Equipment
Product Coding Machines
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Electrical Specifications

Parameter	Specification
Number of Poles	16Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters

Parameter	Specification
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Parameter	Specification
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Product Images

Design Sketch

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: What shipping methods do you offer? How long is the delivery time?

A: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.

Q: How to track my shipment?

A: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.
