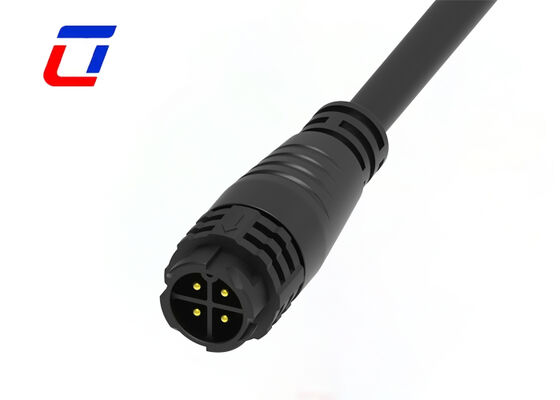

15A 4Pin M19 Waterproof Electrical Connectors Male To Female Power Cable Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	4Pin	Current Rating:	15A
Rated Voltage:	300V	Material:	Nylon
Color:	Red Blue White Black Yellow	Flame-resistant Rating:	UL94-V0
Highlight:	15A waterproof power connector , M19 male female electrical connector , 4Pin waterproof cable connector

15A 4Pin M19 Waterproof Electrical Connectors Male To Female Power Cable Connector

Product Overview

IP67 waterproof M19 4-pin male to female outdoor cable connector designed specifically for outdoor and industrial power transmission scenarios. This connector provides reliable power supply and harsh environment tolerance for various small and medium-sized industrial equipment and outdoor power systems.

Key Features

Push lock quick release system for easy operation
Multiple pin configurations available: 2Pin, 3Pin, 4Pin, 5Pin for power applications
Power-signal combined options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
Signal-only configurations: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
Field assembly versions for both wire-to-wire and wire-to-board applications
15A rated current for continuous operation
Cable assembly service supported with customization options
OEM/ODM services available

Electrical Parameters

Number of Poles	4Pin
Current Rating	15A max
Voltage Rating	300VAC max
Durability Voltage	1000VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application Industries

Growth Lights
Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Product Design

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: Do you support product customization?

A: Yes, customization is available for specifications, colors, logos, and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.

Q: How to track my shipment?

A: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.
