Name: Low Current Waterproof Connector 7 Pin M19 OEM IP67 Connectors For Lighting Equipment
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Male Female Connector

Low Current Waterproof Connector 7 Pin M19 OEM IP67 Connectors For Lighting Equipment

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	7Pin	Current Rating:	5A
Connector Type:	Quick Lock Connector	Rated Voltage:	300V
Material:	Nylon	Protection Level:	IP67
Highlight:	7 pin waterproof connector IP67 , M19 waterproof connector for lighting , low current waterproof connector OEM

Low Current Waterproof Connector 7 Pin M19 OEM IP67 Connectors For Lighting Equipment

Product Overview

7 Pin Male Female Connector M19 Wire To Board Outdoor Connectors

Core Positioning: A wire-to-board male-female connector designed specifically for harsh outdoor environments, compatible with precision M19 housing specifications. Focusing on strong environmental adaptability and reliable connection performance, it is a core connection component for various industrial and outdoor equipment.

Core Parameters: 7-pin configuration, supporting simultaneous and stable transmission of power and signals; with IP67 waterproof rating, suitable for complex outdoor working conditions.

Performance Advantages: Adopting precise male-female mating + anti-loose locking structure, which can resist disconnection caused by vibration and external impact, ensuring long-term stable operation; high-quality plastic housing with corrosion-resistant metal contacts enhances durability and service life.

Installation & Compatibility: Wire-to-board design simplifies wiring and assembly processes; standard M19 size is compatible with most industry-standard interfaces, significantly reducing installation time and maintenance costs.

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Technical Specifications

Electrical Parameters
Number of Poles	7Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.
Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone
Operation Parameters
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

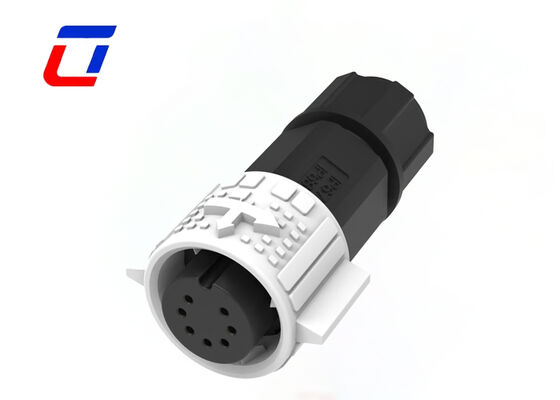

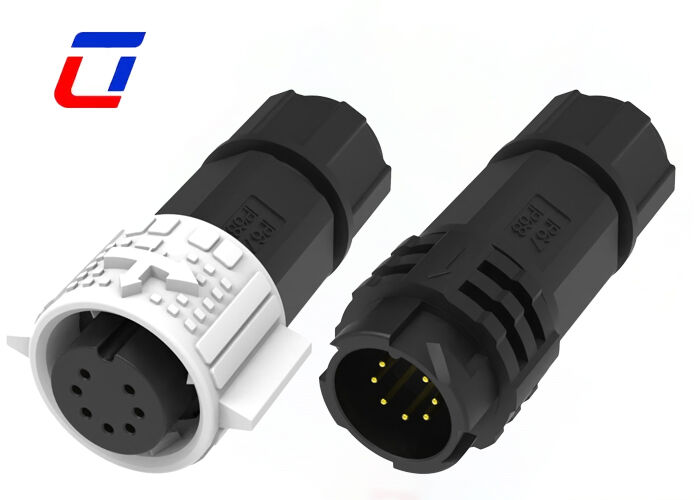

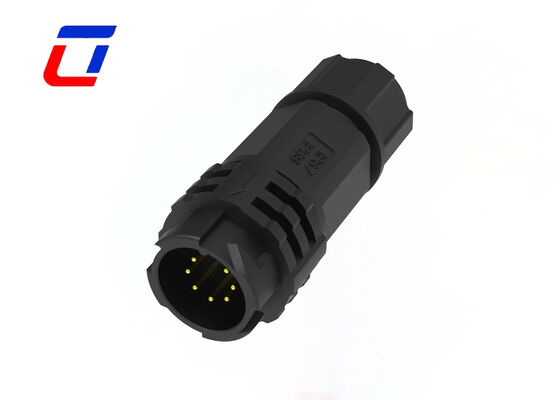

Product Images

Design Sketch

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: How to track my shipment?

A: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.

Q: How many materials you can provide?

A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirements to choose the material.
