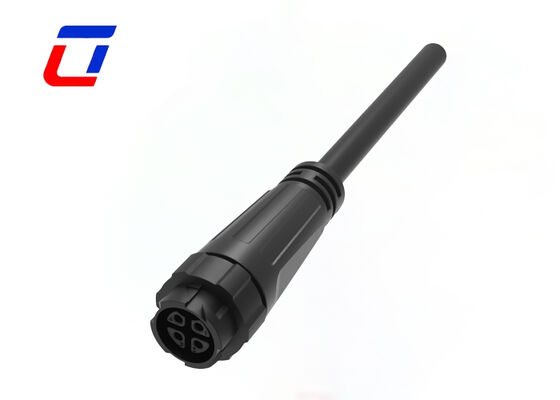

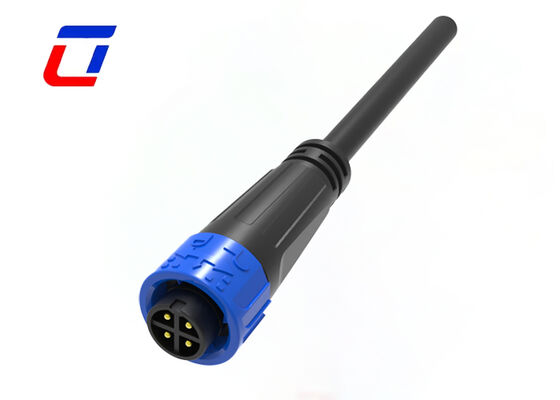

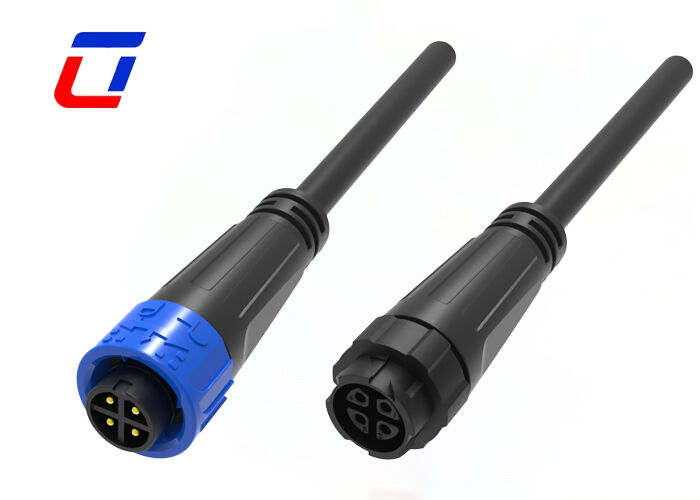

Name: M16 IP67 Connector 4 Pin Push Locking Cable To Cable Connector For New Energy
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products Waterproof Male Female Connector

M16 IP67 Connector 4 Pin Push Locking Cable To Cable Connector For New Energy

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Contacts:	4 Pin	Current:	Max 10A
Voltage Rating:	300 V	Waterproof Level:	IP67
Material Of Copper Needles:	Copper Alloy	Housing Material:	Flame-Retardant Plastic
Highlight:	M16 IP67 waterproof connector , 4 pin push locking connector , new energy cable connector

M16 IP67 Connector 4 Pin Push Locking Cable To Cable Connector For New Energy

Product Overview

4 Pin Waterproof Connector, M16 10A PA66 Push Locking Wire To Wire Connectors

Industrial Waterproof Circular Connector Features

High-Quality Materials: Flame-retardant engineering plastic housing with V0-level flame retardancy and excellent UV aging resistance, capable of withstanding high and low temperature (-40℃~+105℃) shocks; gold-plated copper alloy contacts with outstanding conductivity, oxidation resistance and wear resistance
Protection Performance: IP67 waterproof and dustproof rating with double sealing + thread-reinforced sealing structure, effectively resisting erosion from rainwater, sand, dust, electrolyte mist, etc.
Connection Design: Exclusive push-lock locking structure for one-key locking/unlocking, featuring convenient operation, firm locking, anti-vibration and anti-falling; cable-to-cable direct connection design requiring no professional tools
Application Scenarios: New energy vehicle auxiliary power supply systems, photovoltaic energy storage equipment wiring, internal connections of charging piles, power transmission of electric forklifts, and power supply lines of new energy sightseeing vehicles

Main Features

Push lock quick release system for hassle-free operation
Multic-core options available: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
Field assembly versions: wire to wire / wire to board
High current rated waterproof connector suitable for up to 10A continuous operation
Cable assembly service supported with customization options
OEM/ODM services available

Electrical Parameters

Number of Poles	4Pin waterproof connector
Current Rating	10A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Production Dimension

More Technical Details

Frequently Asked Questions

Can I get a free sample before placing a bulk order?

We offer free samples for standard models, but the shipping cost is at your expense. For customized samples, a small fee will apply and can be deducted from the formal order later.

Do you support product customization?

Yes, customization is available for specifications, colors and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.

How to track my shipment?

Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.
