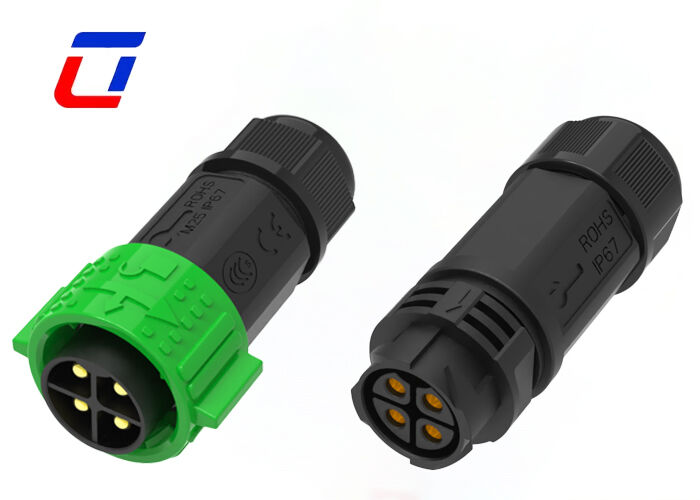

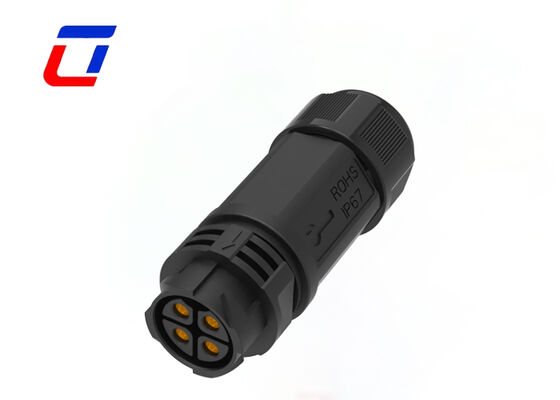

Name: M25 4 Pin IP67 Power Connector 50A Brass Push Locking Cable To Cable Waterproof Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Home Products Waterproof Male Female Connector

M25 4 Pin IP67 Power Connector 50A Brass Push Locking Cable To Cable Waterproof Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	4Pin	Current:	50A
Gender:	Male/Female	Material:	Nylon
Protection Level:	IP67	Flame-resistant Rating:	UL94-V0
Highlight:	4 pin IP67 waterproof connector , brass push locking power connector , 50A cable to cable connector

M25 4 Pin IP67 Power Connector 50A Brass Push Locking Cable To Cable Waterproof Connectors

Product Overview

Waterproof Electrical 500V M25 4 Pin Waterproof Push Lock Connectors designed for high-current power transmission in demanding industrial environments.

Key Features

Cable-to-cable waterproof connector for high-current power transmission
M25 size installation compatibility
4-pin configuration with 50A rated current
High-conductivity brass contacts with excellent oxidation resistance
Weather-resistant PA66 housing material
IP67 waterproof and dustproof rating
Push-locking structure for easy operation and vibration resistance

Technical Specifications

Electrical Parameters

Parameter	Specification
Number of Poles	4Pin
Current Rating	50A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s

Technical Parameters

Parameter	Specification
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Parameter	Specification
Voltage Rating	600VAC max
Current Rating	30A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max Cable Cross Section Area	0.5mm² ~ 6.0mm²

Additional Features

Push lock quick release system
Multicore options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin, 5+2Pin and 2+20Pin available
Field assembly version: both wire to wire and wire to board options
High current rated waterproof connector up to 50A for continuous operation
Cable assembly service supported with custom options
OEM/ODM welcome

Application Industries

Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery
Outdoor Lighting
Industrial Equipment Power Supply
New Energy Vehicle Auxiliary Power Supply
Marine Equipment
Construction Machinery

Production Dimension

Technical Details

Frequently Asked Questions

Q1: What is rated voltage?

A1: Rated voltage, also known as operating voltage, depends on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly below their rated voltage.

Q2: What payment methods do you accept?

A2: We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.

Q3: What shipping methods do you offer? How long is the delivery time?

A3: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3-7 working days for small parcels; 2) Air freight: 7-15 working days; 3) Sea freight: 20-45 working days. Delivery time varies by destination and shipping method.
