Name: 60V Low Voltage Wire Connectors M16 7Pin Waterproof Nylon Circular Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products Waterproof Male Female Connector

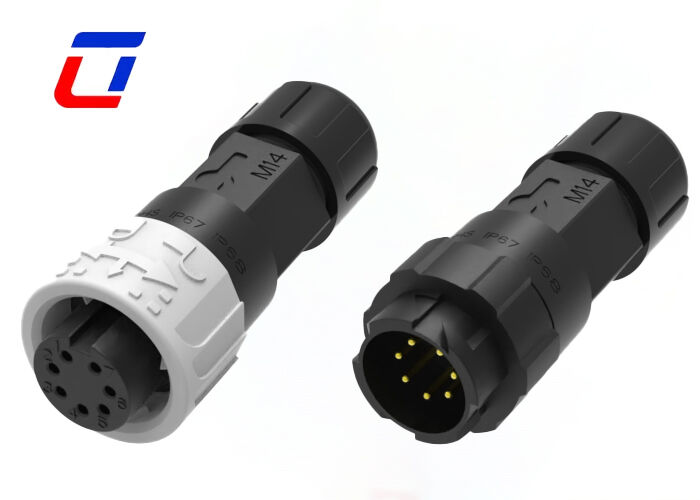

60V Low Voltage Wire Connectors M16 7Pin Waterproof Nylon Circular Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	7Pin	Connector Type:	Male/Female Quick Connector
Current Rating:	5A	Rated Voltage:	60V
Protection Level:	IP67	Color:	Red/Blue/Green/White/Yellow
Highlight:	60V waterproof circular connector , M16 7Pin low voltage connector , nylon waterproof male female connector

M16 Male Female 7 Pin Waterproof Connectors For Low Power Signal

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin ,7Pin,8Pin,2+4Pin
Field assembly version:wire to wire / wire to board
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Quick Description

Core Specifications: 7-pin configuration, compatible with M16 standard mounting size, rated voltage 60V low voltage, specially designed for cable connection in low-voltage electrical systems
Material Features: Adopts nylon shell material, which has both light weight, good corrosion resistance and anti-aging performance, suitable for use in various complex environments
Protection Capability: Equipped with reliable waterproof performance, which can effectively resist dust intrusion and temporary water immersion, ensuring the stability and safety of low-voltage circuit connection
Transmission Performance: Suitable for power and signal transmission in low-voltage scenarios, with stable contact and low impedance, meeting the connection needs of most low-voltage electronic equipment
Application Scenarios: Widely used in low-voltage lighting equipment, small household appliances, security sensing equipment, outdoor low-voltage instruments and other low-voltage scenarios requiring waterproof connection

Electrical Parameters
Number of Poles	7Pin
Current Rating	5A max.
Voltage Rating	60VAC max
Durability Voltage	500VAC @ 60 s.

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm²~ 2.5mm²

Design Sketch

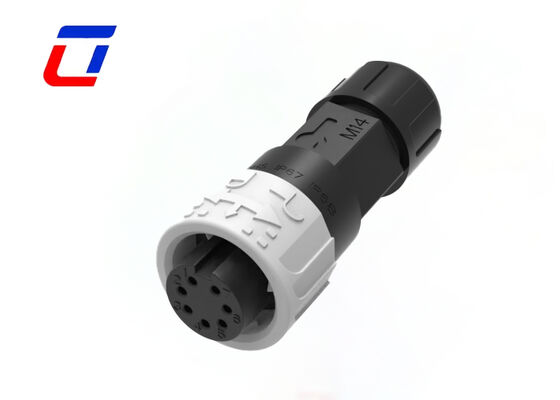

60V Low Voltage Wire Connectors M16 7Pin Waterproof Nylon Circular Connector 0

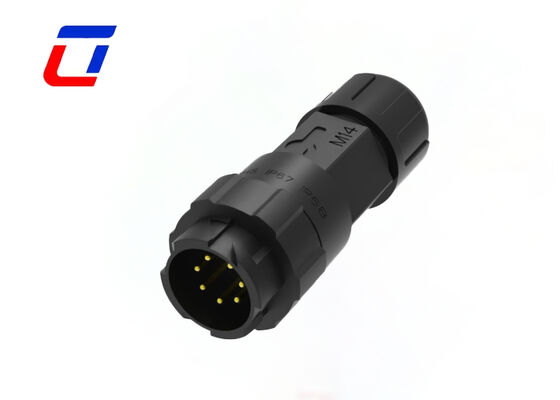

60V Low Voltage Wire Connectors M16 7Pin Waterproof Nylon Circular Connector 1

FAQ

1. Q: How to track my shipment?
A: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.

2. Q: What payment methods do you accept?

A: We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.

3. Q: How can I get samples?

A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.

4. Q: Do you accept other payment currencies besides USD?

A: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.
