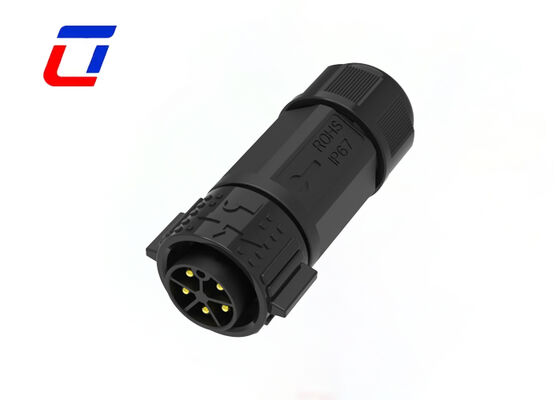

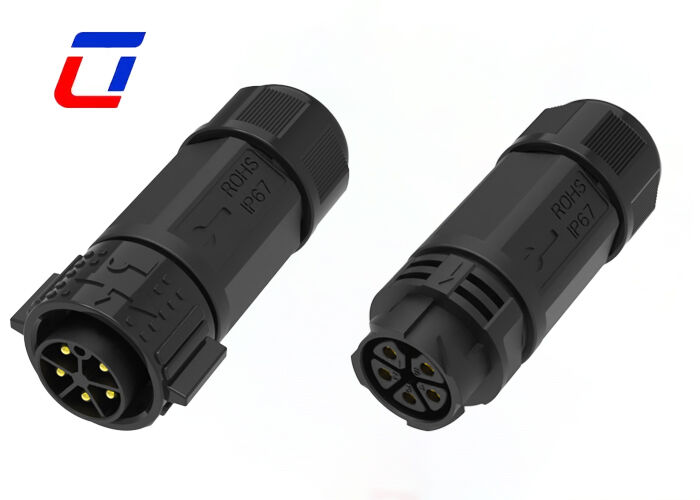

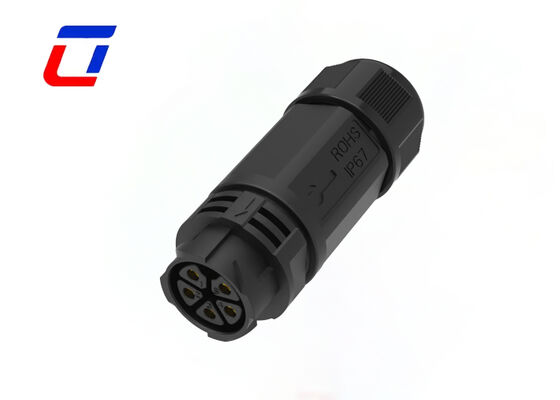

Name: 50A M25 5 Pin Male Female Connector IP67 Quick Release Solar Connectors For Power
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Home Products Waterproof Male Female Connector

50A M25 5 Pin Male Female Connector IP67 Quick Release Solar Connectors For Power

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	5Pin	Current:	30A
Rated Voltage:	500V	Gender:	Male/Female
Protection Level:	IP67	Flame-resistant Rating:	UL94-V0
Highlight:	50A M25 waterproof solar connector , IP67 quick release power connector , 5 pin male female solar connector

5 Pin Waterproof Power Connector M25 Push Lock Male To Female Connectors

Quick Details of IP67 Waterproof connector

High-Current Core Specifications: Adopts a 5Pin male-female plug-in structure with a rated current of up to 50A, specially designed for high-power transmission scenarios in solar energy systems; the interface specification is M25 standard, and the pin layout is optimized to achieve efficient and stable power transmission, adapting to the connection needs of core equipment such as solar panels and inverters.

IP67 High-Level Waterproof and Dustproof: Features IP67 protection level, which can completely prevent dust intrusion and can be immersed in 1-meter water depth for 30 minutes without affecting performance; the shell adopts a sealed integrated design with a special waterproof rubber ring, effectively resisting the erosion of outdoor harsh environments such as rain, dew and sand, ensuring the connection reliability of solar outdoor operations.

Quick Release Convenient Operation Design: Equipped with a quick release structure, plug-in operation can be completed without additional tools, greatly improving the efficiency of installation, maintenance and repair of solar equipment; it has clear snap-lock feedback during connection, effectively preventing connection loosening caused by misoperation, and avoiding the cumbersome plug-in problem of traditional connectors.

Weather-Resistant Materials and Safety Performance: The conductor is made of high-conductivity brass material, and the surface is anti-oxidation treated to reduce contact resistance and transmission loss, adapting to long-term work with 50A high current; the shell is made of UV-resistant and aging-resistant engineering plastics, which can resist material aging caused by strong outdoor sun and rain, and has excellent insulation performance to eliminate potential safety hazards such as electric leakage and short circuit.

Main Feature

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin,3+2Pin,3+3Pin,3+9Pin,3+13Pin,5+2Pin and 2+20Pin available
Field assembly version:both wire to wire and wire to board options
High current rated waterproof connector good choice up to 30A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters
Number of Poles	5Pin waterproof connector
Current Rating	50A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Operation Parameters
Voltage Rating	600VAC max
Current Rating	30A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max.Cable Cross Section Area	0.5mm² ~ 6.0mm²

Production Dimension

More Technical Details

FAQ

Q1:How can I get samples?

A1:It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.

Q2:What is your Minimum Order Quantity (MOQ)?

A2: The MOQ varies by product type—usually 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long - term cooperation.

Q3:How to track my shipment?

A3: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real - time status online or contact our team for updates.

Q4:Can I pay after receiving the goods?
A4: For first - time cooperation, advance payment is required to ensure production smoothness. For long - term trusted clients, flexible payment terms can be discussed after several successful orders.

50A M25 5 Pin Male Female Connector IP67 Quick Release Solar Connectors For Power 2
