Name: 300V Molded Cable Connector M19 3+3 Multi Pin Quick Lock LED Wire To Wire Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Male Female Connector

300V Molded Cable Connector M19 3+3 Multi Pin Quick Lock LED Wire To Wire Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3+3Pin	Waterproof Rating:	IP67
Current:	15A	Temperature Range:	-40℃~+105℃
Flame-resistant Rating:	UL94-V0	Connecting Mode:	Push Locking
Highlight:	300V M19 waterproof wire connector , 3+3 pin quick lock connector , LED wire to wire connector

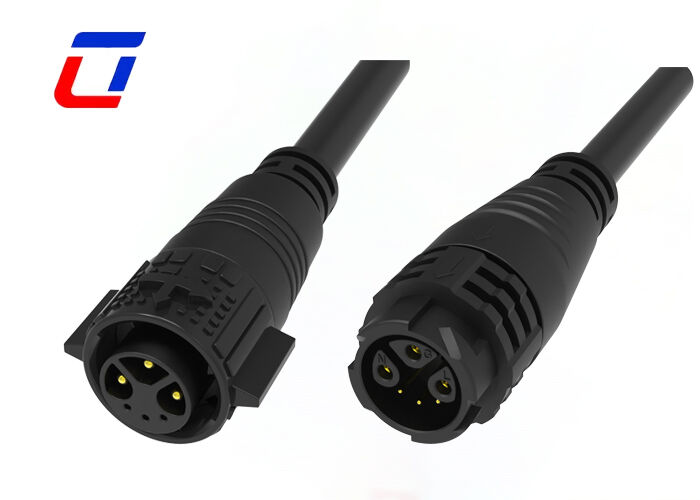

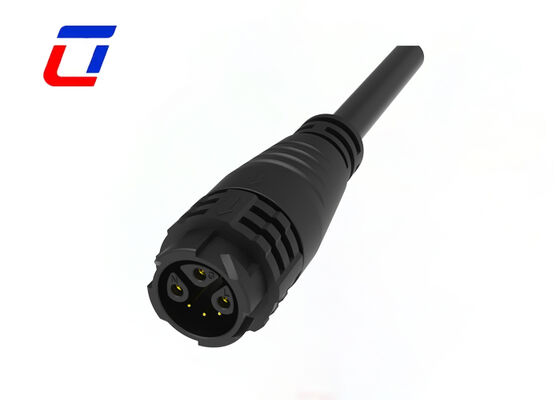

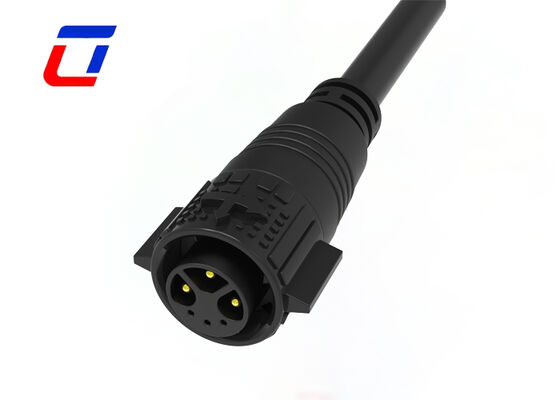

300V Molded Cable Connector M19 3+3 Multi Pin Quick Lock LED Wire To Wire Connector

Product Overview

Waterproof Wire To Wire Connector M19 3+3 Pin 15A Quick Connector designed for reliable power and signal transmission in demanding industrial applications.

Key Features

Push lock quick release system for easy installation
Multiple core configurations: 2Pin, 3Pin, 4Pin, 5Pin for Power
Combined power/signal options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin, 2+20Pin
Signal-only options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin, 18Pin
Field assembly versions: wire to wire and wire to board options
20A current rating for continuous operation
Cable assembly service and OEM/ODM support available

Technical Specifications

Product Type Features	Cable-to-Cable, Sealable, Plastic Shell, Connector Kit
Configuration Features	3+3 Pin (3 power, 3 signal), Contacts Preloaded
Electrical Characteristics	600V AC/DC max operating voltage, 15A max contact current rating
Body Features	PA66 Shell Material, Low Fire Hazard Thermoplastic, IP67 Rated
Contact Features	Pin-Socket Contact Type
Mechanical Attachment	Cable Mount, Keyed Alignment, Mating Retention
Dimensions	Wire Size: 20AWG, 18AWG, 16AWG, 14AWG
Usage Conditions	Operating Temperature: -40°C to 105°C, IP67 Water/Dust Sealing
Industry Standards	UL 94V-0 Flammability Rating

Application Industries

Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Power Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Production Dimensions

Technical Details

Frequently Asked Questions

Q1: What is rated voltage?

A1: Rated voltage, also known as operating voltage, depends primarily on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly when operated below their rated voltage.

Q2: Who is responsible for customs clearance? Do you provide necessary documents?

A2: We provide complete customs clearance documents including commercial invoice, packing list, bill of lading, and certification reports. Customs clearance fees and duties are the responsibility of the buyer under EXW/FOB terms. We can assist with document preparation as needed.
