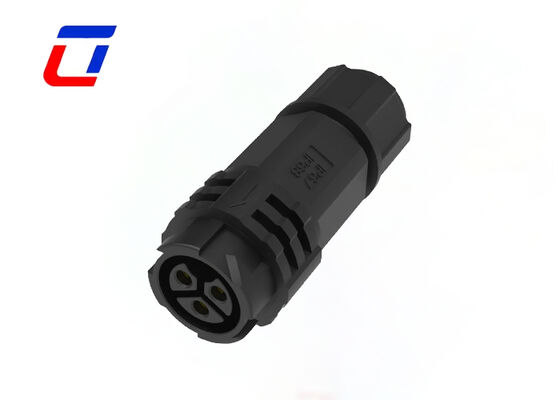

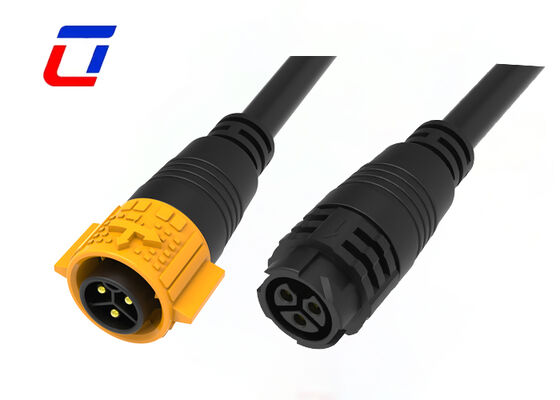

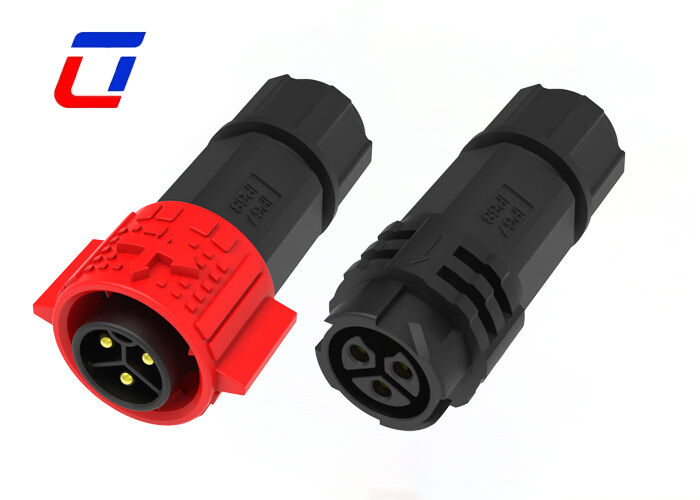

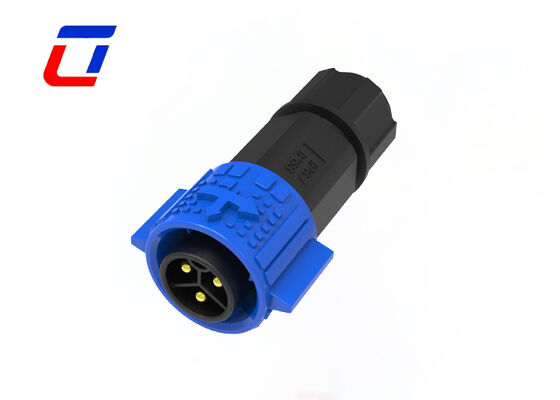

M19 3 Pin 300V Waterproof Cable Connector Quick Lock For Industrial Production

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Gender:	Male To Female	Color:	White Blue Red Black Yellow
Material:	PA66 And Brass Tin Plated	Current Rating:	20A
Rated Voltage:	300V	Flame-resistant Rating:	UL94-V0
Highlight:	M19 waterproof cable connector , 3 pin quick lock connector , 300V industrial waterproof connector

M19 3 Pin 300V Waterproof Cable Connector Quick Lock For Industrial Production

Product Overview

The M19 3-pin 300V waterproof cable connector is specifically designed for industrial production scenarios, serving as a core connection component that balances safe transmission and efficient operation. Engineered for industrial-grade reliability, it is compatible with automated production lines, equipment control units, and other applications, effectively solving signal and power transmission challenges in humid and dusty environments.

Main Features

Item Name: M19 Waterproof Cable Connector
Specifications: Straight male-female mating, elbow male-female mating, front-mounted wire-to-board, rear-mounted wire-to-board, integrated injection molding
Coupling Way: Self-locking
Pins Number: 2-22 pins
Plug: Assembly type and Injection type available
Socket: Front Mount, Back Mount, PCB Mount
Waterproof Grade: IP67/IP68
Connector Type: Assembly lock screw; Assembly welding; Injection molding with cable
Wire Gauge: 1.0-6.0mm² (18AWG-10AWG)
Wiring Range Assembled: 6.0mm~16mm; Molding 6.0mm~16.5mm
Durability: 3000 times
Applicable Temperature: -40℃~105℃

Technical Specifications

Electrical Parameters
Number of Poles	3 pin waterproof wire connector
Current Rating	20A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.
Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone
Operation Parameters
Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

Frequently Asked Questions

What shipping methods do you offer? How long is the delivery time?

We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3-7 working days for small parcels; 2) Air freight: 7-15 working days; 3) Sea freight: 20-45 working days. Delivery time varies by destination and shipping method.

Do you accept other payment currencies besides USD?

Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.

When do you ship my order?

Normally 2-3 days after receiving your payment, but it can be negotiated based on order quantity and production schedule.

Can I have custom label?

Yes, of course. You can create your own private label and packaging. If you need packaging design, we also have professional designers to serve you.
