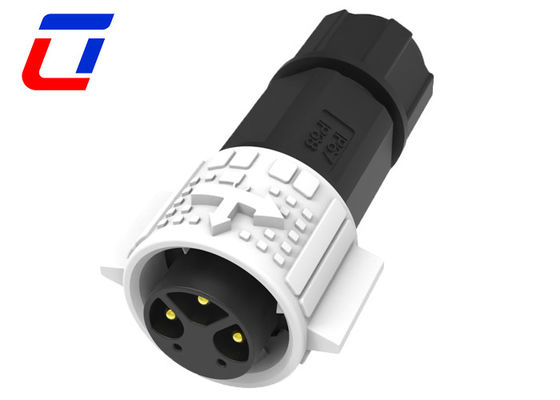

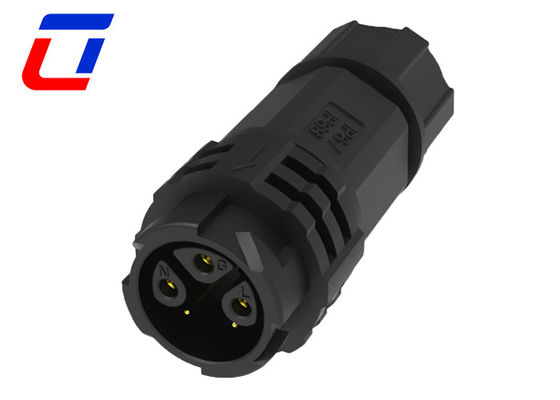

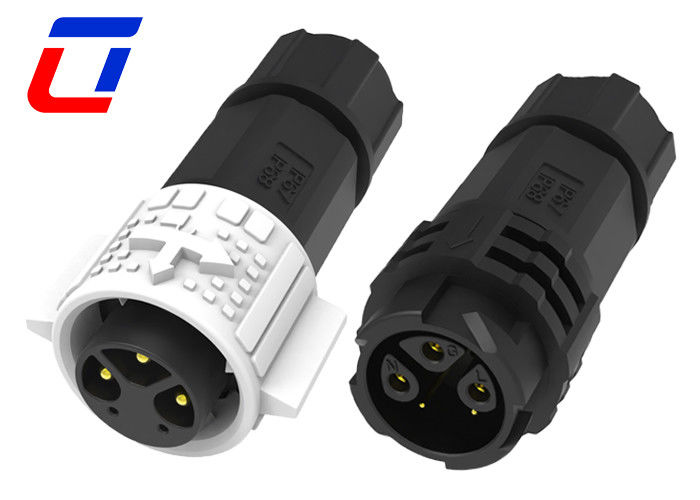

3+2 Multi Pin M19 Plastic Waterproof Male Female Welding Cable Connectors

3+2 Multi Pin M19 Plastic Waterproof Male Female Welding Cable Connectors

Main Features

• Item Name : M19 Waterproof Cable Connector
• Specifications : Straight male-female mating, elbow male-female mating, front-mounted wire -to- board, rear-mounted wire -to-board,integrated injection molding
• Coupling way: Self-locking
• Pins number :2-24 pins
• Plug : Assembly type and Injection type available
• Socket: Front Mount, Back Mount, PCB Mount
• Waterproof grade: IP67/ IP68
• Connector type :Assembly lock screw；Assembly welding；Injection molding with cable
• Wire gauge: 1.0-6.0mm² (18AWG-10AWG)
• Wiring range Assembled: 6. 0mm~16mm；Molding 6. 0mm”16.5 mm
• Durability :3000 times
• Applicabletemperature: -40℃~105​

Quick Description

3+2 Multi Pin M19 Plastic Waterproof Male Female Welding Cable Connectors is specialized for various power signal comblined applications, easy ooperation design in push locking system, just need a second to insert, then it will lock automatically.

Power & Singal together in one set design is getting more and more popular to many device, which solve the power and signal connector separated using perfectly, especially for the space limited application.

Cable assembly available for Multi pin Connectors is supported in Ulinkcon,just please share cable request in details, custom service available.

Design Sketch

FAQ

1. Q: How can you guarantee the production qual

ity ?

A:Our production quality follow ISO9001 We have 20years experience of QC team.We have strictly quality control system in our production process. We have 4times inspection for each finished product before package Third part in-spection accepxable.

2. Q: How to buy your products?

A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.

3. Q: When you ship my order?

A:Normally 2-3 days after receiving your payment, but it can be negotiated based on order qty and production schedule.

4. Q: Can I have custom label?

A:Yes,of course,you can make you own private label and package,if you need to design the packaging ,we also have professionaldesigner to serve you.
