Name: 300V 10A IP67 Power Connectors M16 Panel Mount Connector 3 Pin Push Locking
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Price: Negotiable USD
Availability: InStock

Home Products IP67 Waterproof Connector

300V 10A IP67 Power Connectors M16 Panel Mount Connector 3 Pin Push Locking

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Ulinkcon
Certification:	CE,Rohs,TUV
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3Pin	Rated Voltage:	300V
Current:	10A Max For Power	Flame-resistant Rating:	UL94-V0
Contact Material:	Brass Gold-Plated	Operating Temperature:	-40~+105℃
Highlight:	300V 10A M16 power connector , IP67 waterproof panel mount connector , 3 pin push locking connector

300V 10A IP67 Power Connectors M16 Panel Mount Connector 3 Pin Push Locking

Product Overview

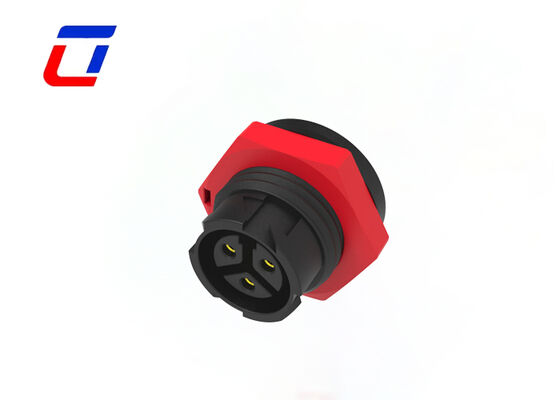

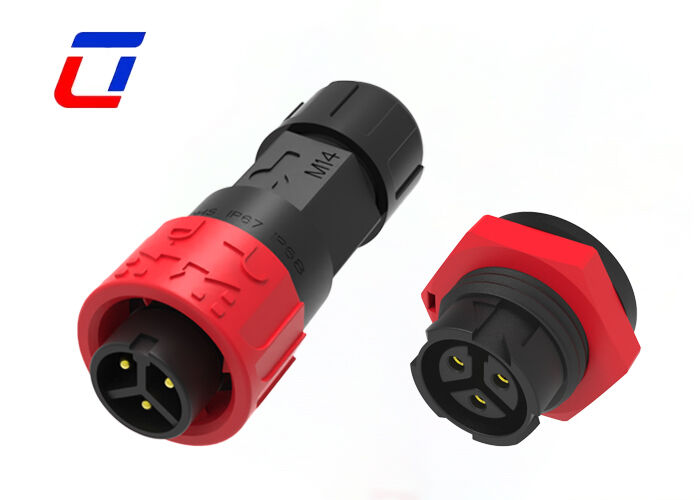

M16 3 Pin Panel Mount Power Connector rated at 300V, 10A, featuring a push-locking structure without threads. The flange receptacle mounts directly through cutouts on equipment panels. Matched male and female pairs with IP67 rating make this connector ideal for industrial devices, outdoor LED lighting, and testing instruments.

Key Features

Push-lock quick release system for easy operation
Multiple pin configurations available: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
Field assembly versions: wire to wire and wire to board options
High current rating up to 10A for long-term operation
Cable assembly service supported with customization options
OEM/ODM services available

Technical Specifications

Electrical Parameters

Number of Poles	3Pin waterproof connector
Current Rating	10A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Design & Construction Features

Thread-Free Push-Lock Quick Connection

Push-lock self-locking design eliminates thread twisting. Push to lock with hand-operated fast mating and disconnection, improving assembly and maintenance efficiency.

300V 10A Reliable Electrical Performance

3 pure power contacts rated at 10A per pin with 300V voltage resistance. Provides stable current carrying and low temperature rise for medium and low power equipment power supply.

IP67 Dust & Water Resistance

Multi-layer sealing gaskets provide dust-tight and splash-proof protection against rain and condensation. Reduces risk of short circuit and electric leakage in humid outdoor environments.

Vibration Resistant & Wide Temperature Housing

High-strength plastic housing with good impact resistance and wide temperature tolerance. Stays locked under continuous vibration and resists aging and cracking over long service time.

Versatile & Broad Application

Standard M16 circular size suitable for outdoor LED lighting, industrial control cabinets, monitoring meters, and automation equipment panel power input.

Application Industries

Communications Equipment

Product Coding Machines

Inventory Product Coding Systems

Inkjet Systems

Solar Systems

Industrial Inkjet Equipment

Electric Power Equipment

Laboratory Forensic & Pathology Equipment

Heavy Machinery

Production Dimension

Technical Details

Frequently Asked Questions

Who is responsible for customs clearance? Do you provide necessary documents?

We provide complete customs clearance documents including commercial invoice, packing list, bill of lading, and certification reports. Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.

Can I pay after receiving the goods?

For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.

What is rated voltage?

Rated voltage, also known as operating voltage, depends mainly on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly when operated below their rated voltage.
