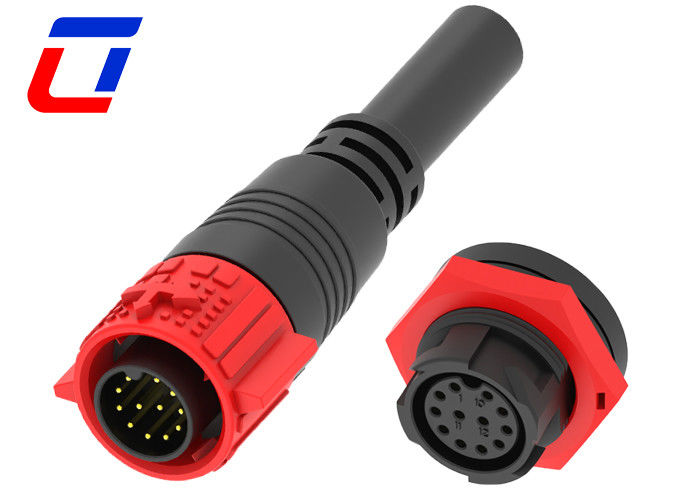

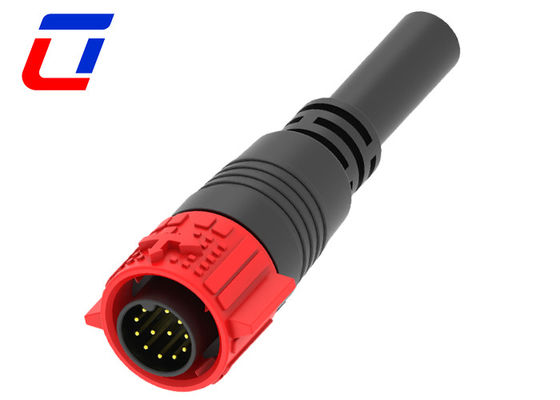

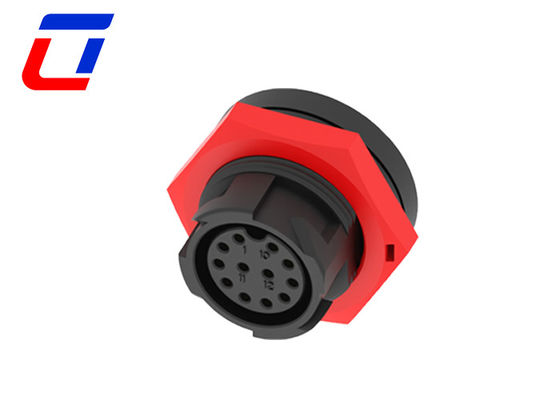

Pre Cable IP67 Waterproof Connector 12 Pin Gold Plated Wire Connectors

Quick Push Pull 12 Pin Pre-Cable Male Female Waterproof Connector IP67

Quick Description

1. Use alloy external protective material to effectively reduce electromagnetic and signal RF interference generated by external high current.
2. Four-point spiral locking with military standard.
3. Optional shell color to meet different environmental requirements.
4. 2-5PIN power supply, 6-22PIN signal is optional.
5. Rated current: 5A/12A/20A rms.
6. The IP67 protection level when mated

Main Features

• Push lock quick release system
• Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
• 3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
• 6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
• Field assembly version:both wire to wire and wire to board options
• Current rated 20A for long time working
• Cable assembly service supported, welcome to custom
• OEM/ODM welcome

• Item Name : M19 Waterproof Cable Connector
• Specifications : Straight male-female mating, elbow male-female mating, front-mounted wire -to- board, rear-mounted wire -to-board,integrated injection molding
• Coupling way: Self-locking
• Pins number :2-22 pins
• Plug : Assembly type and Injection type available
• Socket: Front Mount, Back Mount, PCB Mount
• Waterproof grade: IP67/ IP68
• Connector type :Assembly lock screw；Assembly welding；Injection molding with cable
• Wire gauge: 1.0-6.0mm² (18AWG-10AWG)
• Wiring range Assembled: 6. 0mm~16mm；Molding 6. 0mm”16.5 mm
• Durability :3000 times
• Applicabletemperature: -40℃~105​

Design Sketch

FAQ

Q1:What is the MOQ ?

A1:Our MOQ is 1pcs.
Q2:When you ship my order?

A2:Normally 2-3 days after receiving your payment, but it can be negotiated based on order qty and production schedule.
Q3:Can I have custom label?

A3:Yes,of course,you can make you own private label and package,if you need to design the packaging ,we also have professionaldesigner to serve you.

Q4: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.

Q5: How can I get samples?

A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.

Q6: How many materials you can provide?
A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
