Detailed Product Description

Number Of Pins:	5 Pin	Rated Voltage/current:	300V/20A
Flame-resistant Rating:	UL94-V0	Protection Level:	IP67
Gender:	Male/Female Plug	Contact Material:	Brass Gold-Plated
Highlight:	Waterproof DC power connector M25 , 5 pin 20A push lock connector , IP67 outdoor cable connector

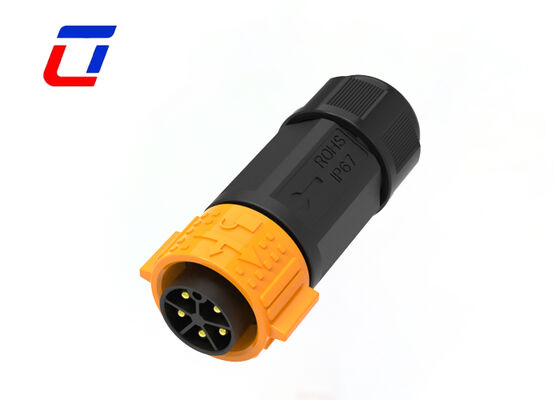

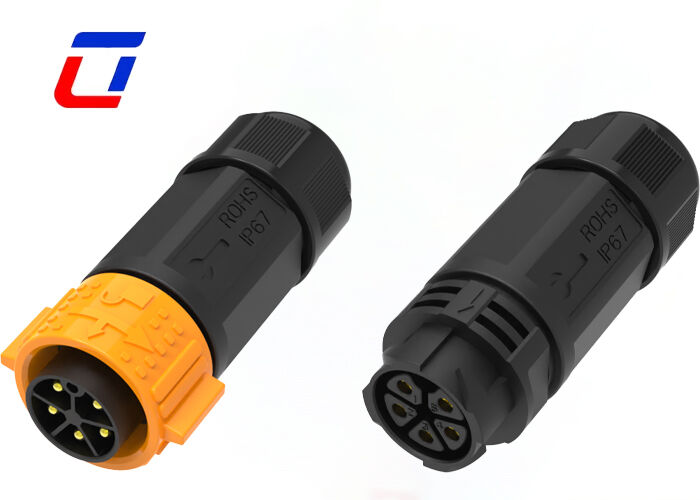

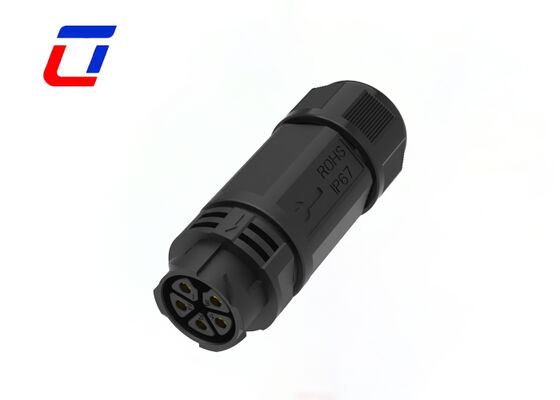

Waterproof DC Power Connector M25 5 Pin 20A Push Lock Outdoor Cable New Energy Connector

Widely applied in outdoor small photovoltaic systems, energy storage supporting equipment, new energy intelligent lighting, outdoor DC power supply equipment, garden new energy devices, mobile new energy power supply units, outdoor monitoring DC power supply systems and lightweight new energy industrial control equipment.

Product Overview

5-Pin Integrated DC Power & Signal Transmission: Adopting a professional 5-pin multi-channel layout, this connector is specially developed for DC power supply scenarios. It supports synchronous transmission of multiple DC power and auxiliary signals with independent isolated channels without crosstalk, simplifying complex wiring of new energy equipment and realizing integrated connection.
20A Stable DC Current Carrying Capacity: Rated at 20A standard current, it perfectly matches low-voltage DC new energy working conditions. Equipped with high-purity copper contacts, it features low power loss and low temperature rise. It supports long-term full-load operation with stable DC power output, effectively avoiding poor contact, overheating and power failure to ensure stable equipment operation.
All-weather Outdoor Waterproof & Weatherproof Performance: Built with integrated fully sealed structure and tight push-lock fitting design, the connector achieves seamless protection after docking. It resists water immersion, moisture, dust accumulation, corrosion and UV erosion, adapting to harsh outdoor environments such as open fields, humid venues and exposed working conditions for new energy equipment.
Tool-free Vibration-resistant Push Lock Structure: Featured with thread-free push-lock self-locking design, the male and female connectors can be automatically locked by simple pushing with firm and tight fitting. The anti-loosening and anti-drop structure adapts to outdoor vibration and bumpy working conditions. Press-to-release design enables fast manual assembly and disassembly without tools, improving field wiring and maintenance efficiency.
UV-resistant & Flame-retardant Durable Housing: One-piece injection molded with high-toughness eco-friendly engineering plastic, the housing is tensile, bend-resistant and impact-resistant. With excellent insulation, flame retardancy, aging resistance and UV resistance, it withstands long-term outdoor sun exposure, rain erosion and temperature changes without deformation or cracking.
Universal M25 Standard Specification: Adopting industrial standard M25 circular size with scientific pin spacing and sufficient insulation distance, it effectively prevents electric leakage and creepage under DC working conditions. Highly compatible with mainstream M25 matching accessories on the market, it is easy to replace and widely applicable for new energy cable docking and equipment upgrading.

Key Features

Push-lock quick release system for tool-free operation
Multiple pin configurations available: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin, 5+2Pin, and 2+20Pin
Field assembly versions: wire-to-wire and wire-to-board options
High-current rated waterproof connector suitable for continuous 20A operation
Cable assembly service supported with customization options
OEM/ODM services welcome

Electrical Specifications

Parameter	Specification
Number of Poles	5Pin waterproof connector
Current Rating	20A maximum
Voltage Rating	300VAC maximum
Durability Voltage	1500VAC @ 60 seconds

Technical Specifications

Parameter	Specification
Contact Resistance	10 mΩ maximum
Insulation Resistance	500 MΩ at 500VDC
Operating Temperature	-40°C to +105°C
IP Rating	IP67 (1 meter / 30 minutes)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Parameter	Specification
Voltage Rating	600VAC maximum
Current Rating	30A maximum
Minimum Wire Size OD	6.5mm - 10mm
Maximum Wire Size OD	10.5mm - 18mm
Maximum Cable Cross Section Area	0.5mm² - 6.0mm²

Application Industries

Communications equipment
Product coding machines and inkjet systems
Inventory product coding equipment
Industrial inkjet equipment
Solar power systems
Electric power equipment
Laboratory forensic & pathology equipment
Heavy machinery

Production Dimensions

Technical Details
