Name: M25 15A+5A Circular Multi Pin Connectors 3+3 Pin Quick Lock Wire To Board Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Home Products Multi Pin Connectors Waterproof

M25 15A+5A Circular Multi Pin Connectors 3+3 Pin Quick Lock Wire To Board Connector

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3+3 Pin	Current:	15A+5A
Material:	Nylon	Temperature Range:	-40℃~+105℃
Type:	Male Female Plug Socket	Flame-resistant Rating:	UL94-V0
Highlight:	M25 15A+5A circular multi pin connector , 3+3 pin quick lock wire to board connector , waterproof multi pin connectors with quick lock

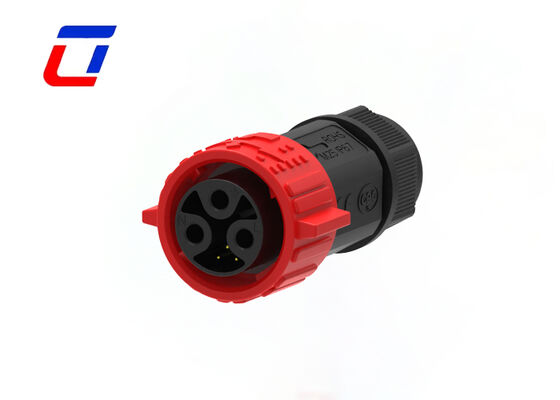

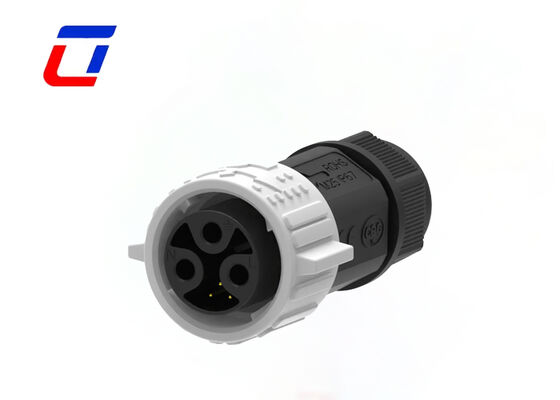

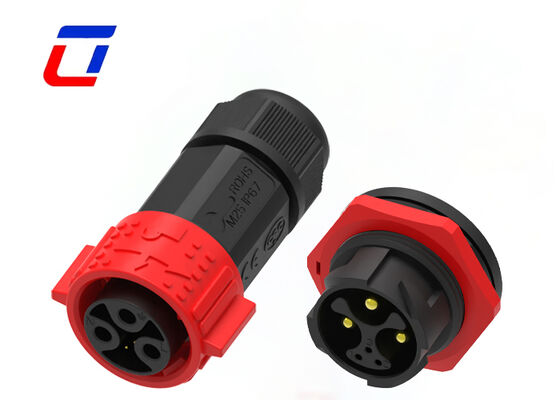

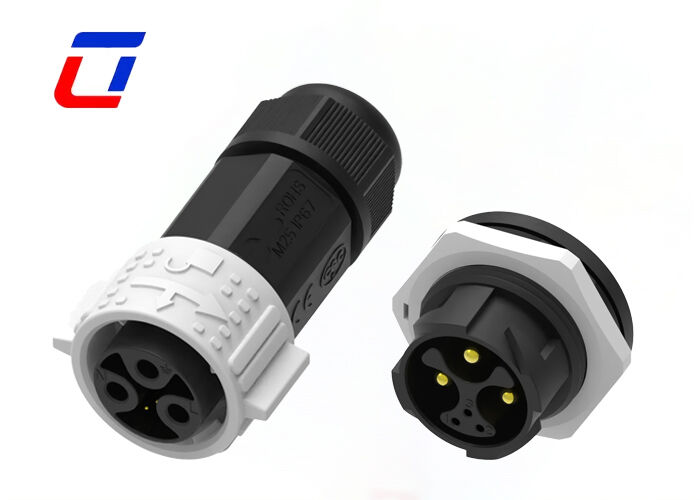

M25 15A+5A Circular Multi Pin Connectors 3+3 Pin Quick Lock Wire To Board Connector

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin and 2+20Pin
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Product Overview

3+3 Pin Partition Design for Isolated Power & Signal: Adopting a precise 3+3 pin partition structure, the connector realizes complete isolation of power and signal channels. 3 dedicated pins support 15A high-power power supply, while another 3 independent pins are for 5A weak signal transmission. The dual-loop design eliminates electromagnetic crosstalk and signal distortion, enabling synchronous and stable power supply and signal transmission for integrated equipment.
Professional Wire To Board Integrated Connection: Featured with standard wire-to-board structure, one end connects cables and the other end plugs directly into the equipment circuit board without extra adapters. It can be fixedly installed on the main control board, greatly simplifying internal equipment wiring, saving installation space, and making equipment assembly more compact and standardized for intelligent electronic control devices.
Dual Current Rating for Accurate Condition Matching: Designed with differentiated dual-load specifications, the main power channel stably bears 15A rated current for core equipment power supply, and the signal channel adapts to 5A low-current weak current transmission for sensor signals and control commands. The reasonable shunting design avoids overheating, signal attenuation and current disorder, ensuring ultra-stable operation.
Thread-free Quick Lock Self-locking Structure: Equipped with an upgraded tool-free quick-lock self-locking structure, it can be automatically locked by simple pushing with tight and shockproof connection. The anti-loosening and anti-drop structure resists equipment vibration and external pulling. Press-to-release design supports fast manual assembly and disassembly, greatly improving mass production and maintenance efficiency.
Standard M25 Universal Specification: Adopting industrial standard M25 circular size with reasonable pin spacing and sufficient insulation distance. The standardized structure is highly compatible with mainstream M25 matching accessories on the market for easy replacement. The large-size cavity provides excellent heat dissipation performance with low temperature rise during long-term operation.
Industrial-grade Flame-retardant & Insulated Housing: One-piece injection molded with high-strength flame-retardant engineering plastic, the housing features excellent insulation performance to prevent electric leakage and short circuit. It has outstanding aging resistance, temperature resistance and impact resistance, adapting to long-term continuous operation and closed high-temperature working conditions inside equipment with stable service performance.

Technical Specifications

Connector System	Cable-to-Cable/Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Number of Positions	3+3
Number of Signal Positions	3
Contacts Preloaded	Yes
Operating Voltage (VAC)	600V max.
Operating Voltage (VDC)	600V max.
Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Entry Style	Side
Environmental Protection Type	Elastomer Sealed, Hermetically Sealed
O-Ring Material	Elastomer Sealed, Hermetically Sealed
Environmental Protection	Yes
Contact Current Rating (Max) (A)	20A max.
Circular Connector Contact Type	Pin-Socket
Connector Mounting Type	Cable Mount (Free-Hanging)
Mating Alignment Type	Keyed
Mating Retention	With
Wire Size (AWG)	20AWG, 18AWG, 16AWG, 14AWG
Operating Temperature Range (°C)	-40 ~105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
UL Flammability Rating	UL 94V-0

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Production Dimension

Technical Details
