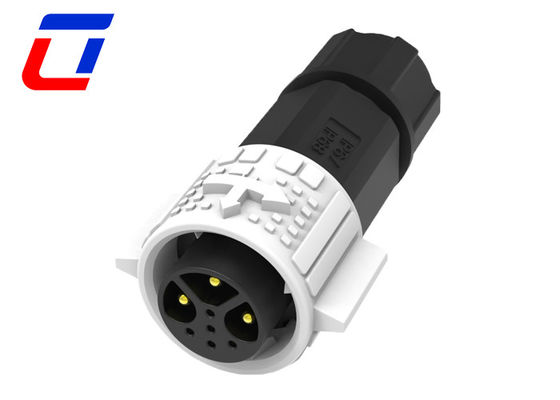

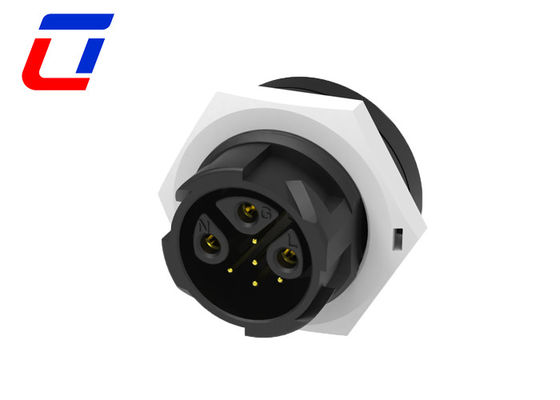

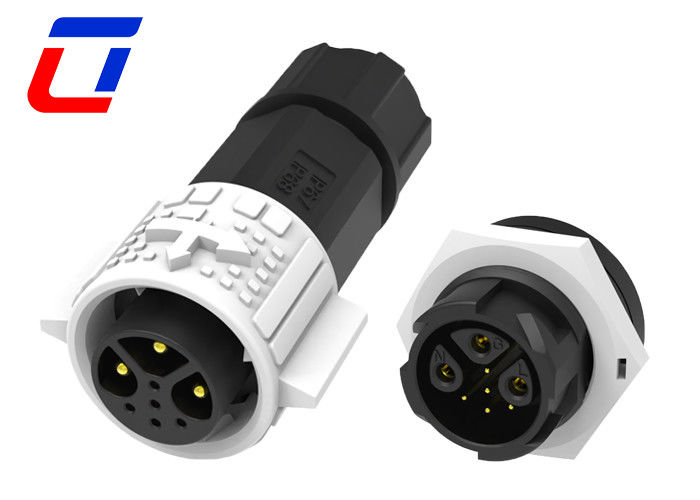

Name: M19 Multic Pin Male To Female Cable Connectors Waterproof 3 Power 5 Signal IP67
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Multi Pin Connectors Waterproof

M19 Multic Pin Male To Female Cable Connectors Waterproof 3 Power 5 Signal IP67

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T, D/P, L/C, D/A, , Western Union, MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Type:	XLR	Gender:	Male & Female
Connector Type:	Self-locking Male To Female	Application:	Electrical Equipment
Material:	PA66&Copper Alloy	Rated Voltage:	300V
Highlight:	Male To Female Cable Connectors IP67 , Male To Female Cable Connectors Waterproof , Cable Connectors Waterproof IP67

M19 Multic Pin Connectors Waterproof 3Power 5 Signal IP67

Quick Description

This model connectors is specialized for various power signal comblined applications, easy ooperation design in push locking system, just need a second to insert, then it will lock automatically.

Power & Singal together in one set design is getting more and more popular to many device, which solve the power and signal connector separated using perfectly, especially for the space limited application.

Cable assembly available for Multi pin Connectors is supported in Ulinkcon,just please share cable request in details, custom service available.

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Electrical Parameters
Number of Poles	7pin waterproof wire connector
Current Rating	15A max.
Voltage Rating	300VAC max5
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm2 ~ 2.5mm2

Design Sketch

M19 Multic Pin Male To Female Cable Connectors Waterproof 3 Power 5 Signal IP67 1
