Name: Waterproof Outdoor Cable Connector 8A 125V Push Locking M16 5 Pin Power Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products IP67 Waterproof Connector

Waterproof Outdoor Cable Connector 8A 125V Push Locking M16 5 Pin Power Connector

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Waterproof Rating:	IP67	Current:	8A
Rated Voltage:	125V	Operating Temperature:	-40℃~+105℃
Flame-resistant Rating:	UL94-V0	Industry Fields:	Security & Surveillance;Instruments & Meters
Highlight:	Waterproof M16 power connector , IP67 waterproof cable connector , 8A 125V push locking connector

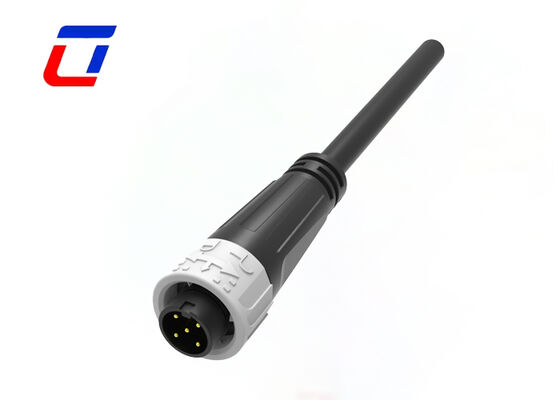

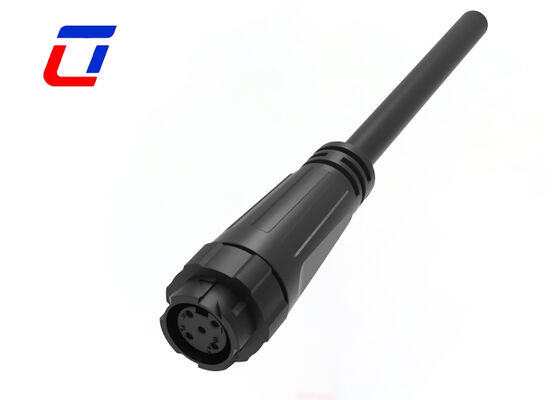

Waterproof Outdoor Cable Connector 8A 125V Push Locking M16 5 Pin Power Connector

Product Overview

5-Pin Multi-channel Integrated Transmission:Features an optimized 5-pin independent isolation design with no crosstalk between channels. It supports simultaneous low-voltage power supply and multi-group control signal transmission. The all-in-one connector simplifies complex wiring structures and meets the integrated connection needs of various small and medium-sized intelligent electrical devices.
8A 125V Low-voltage Safe Operation:Rated at 125V voltage and 8A current, this connector is specially designed for low-voltage weak current equipment. It delivers stable conduction performance with ultra-low working temperature rise. No virtual connection, power failure or current fluctuation occurs during operation, fully complying with safety standards for low-voltage lighting, sensors and smart devices.
Tool-free Push Lock Self-locking Structure:Adopts a thread-free professional push-lock self-locking design. The male and female connectors can be automatically locked with a simple push for tight and anti-loose connection. Press-to-release structure enables fast manual disassembly without tools, supporting repeated plugging and unplugging and improving construction efficiency greatly.
Full-sealed Outdoor Waterproof & Dustproof Performance:Equipped with high-elastic integrated sealing ring and tightly fitted push-lock structure, the connector achieves seamless closed protection after docking. It effectively prevents rain splash, shallow water immersion, moisture, dust and sediment intrusion, avoiding contact oxidation, short circuit and connection failure in harsh outdoor and humid environments.
Flame-retardant & Weather-resistant Plastic Housing:One-piece injection molded with high-quality eco-friendly flame-retardant plastic, the lightweight and tough housing resists bending, stretching and impact damage. With excellent aging resistance, temperature resistance and insulation performance, it maintains stable structure without cracking or deformation during long-term outdoor service.

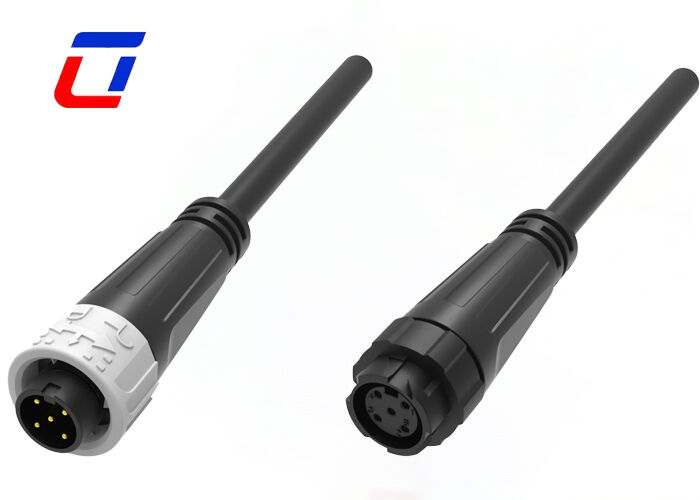

Universal Male & Female Wiring Solution:Comes with matched male and female terminals for flexible wire-to-wire docking. It supports free cable extension, transfer and capacity expansion without fixed interface restrictions. Suitable for equipment modification, outdoor wiring and external device expansion with strong universality and practicability.

Key Features

Push-lock quick release system
Multiple core options: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
Field assembly version supports both wire-to-wire and wire-to-board connections
High current rating up to 8A for continuous operation
Cable assembly service available for custom requirements
OEM/ODM services supported

Electrical Parameters

Parameter	Specification
Number of Poles	5Pin waterproof connector
Current Rating	8A max
Voltage Rating	125VAC max
Durability Voltage	500VAC @ 60 s

Technical Parameters

Parameter	Specification
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Communications equipment
Product coding machines
Inventory product coding systems
Inkjet systems
Solar power systems
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Heavy machinery

Production Dimension

Professional Manufacturer

Frequently Asked Questions

Q1: Are you a factory or trading company?

A1: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q2:What shipping methods do you offer? How long is the delivery time?

A2: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.

Q3: How to track my shipment?

A3: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real - time status online or contact our team for updates.
