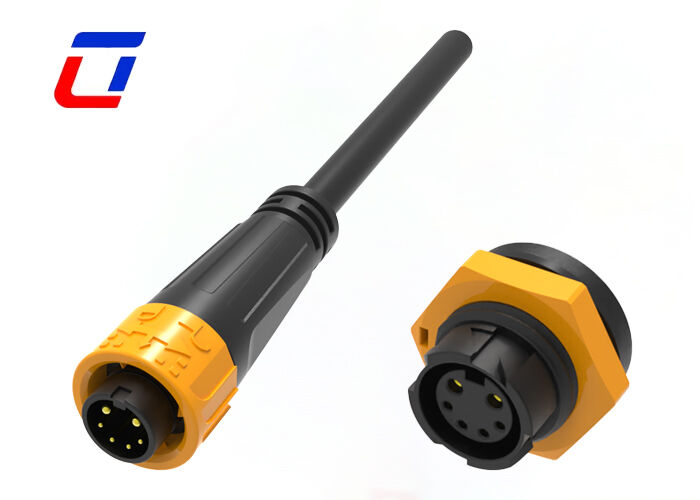

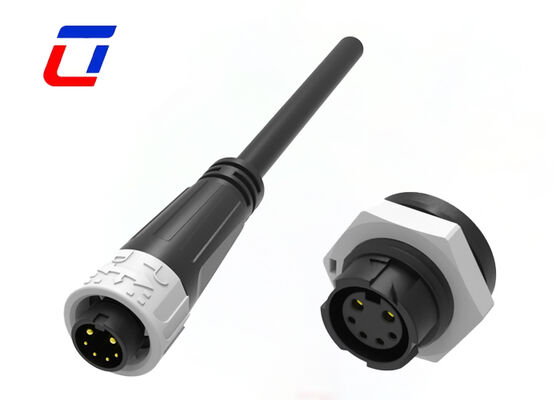

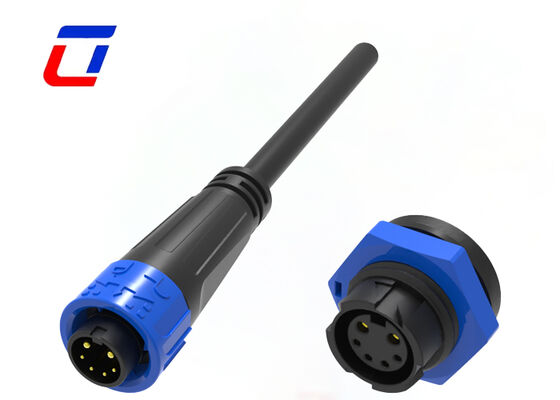

Name: 300V M16 2+4 Pin 20A Signal And Power Connectors IP67 Molded Cable Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products IP67 Waterproof Connector

300V M16 2+4 Pin 20A Signal And Power Connectors IP67 Molded Cable Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	2+4 Pin	Type:	Multi Pin Connector
Waterproof Level:	IP67	Flame-resistant Rating:	UL94-V0
Operating Temperature:	-40℃-+105℃	Contact Material:	Brass Gold-Plated
Highlight:	300V M16 waterproof connector , IP67 molded cable connector , 20A signal power connector

M16 2+4 Pin 20A Signal Power Connector IP67 Molded Cable Connectors

IP67 Quick Lock Connectors Application Industries

Growth Lights
Communications Application
Product Coding Machines
Inventory Product Coding
Inkjet Systems
Solar System
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Communications Equipment
Heavy Machinery

Product Features

Dual-function Integrated Design for Signal & Power: Adopts a unique 2+4 pin configuration. The 2 pins are dedicated for high-power power supply, while the 4 pins are used for precision signal transmission. It realizes synchronous connection of power and signals with a single connector, simplifies wiring structure, saves installation space and wiring costs, and perfectly meets the connection needs of integrated electrical equipment.
Excellent and Stable Electrical Performance: Rated at 300V voltage and 20A current, the connector delivers stable electrical performance. Its conductive pins are made of high-conductivity alloy material with low contact resistance and low power loss. It supports long-term stable power and signal transmission, effectively avoiding power failure, signal interruption and poor contact, adapting to conventional industrial electrical working conditions.
IP67 High-level Waterproof & Dustproof Protection: Featured with multi-layer sealing structure and integrated molding technology, it reaches IP67 protection grade. It is fully dust-tight and water-resistant, resisting moisture, condensed water, oil stains and corrosion. It can operate stably for a long time in harsh environments such as outdoor, humid and dusty scenarios with strong environmental adaptability.
Integrated Molded Structure for High Durability: Adopts one-piece cable injection molding process. The high-strength flame-retardant PA66 plastic shell features flame resistance, aging resistance, high and low temperature resistance, tensile and bending resistance. It prevents cable falling off, connector cracking and circuit aging, with high mechanical strength and long service life for long-term frequent use.
Standard M16 Specification with High Compatibility & Easy Installation: Designed with universal M16 circular connector standard and screw locking structure, it is easy to plug and unplug, firm in locking, anti-loosening and anti-misplug. No complex tools are required for installation and disassembly. The standardized size is highly compatible with most industrial equipment, outdoor lighting and automation equipment interfaces.

M16 2+4 Pin Technical Specifications

Electrical Parameters
Number of Poles	2+4 pin waterproof connector
Current Rating	15+5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Specifications

Frequently Asked Questions

Q1: How many materials you can provide?

A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.

Q2: How to track my shipment?

A: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.

Q3: How do you guarantee product quality?

A: We implement strict quality control throughout the production process: raw material inspection, in-line testing, and final sampling inspection. All products come with a 12-month warranty against manufacturing defects.
