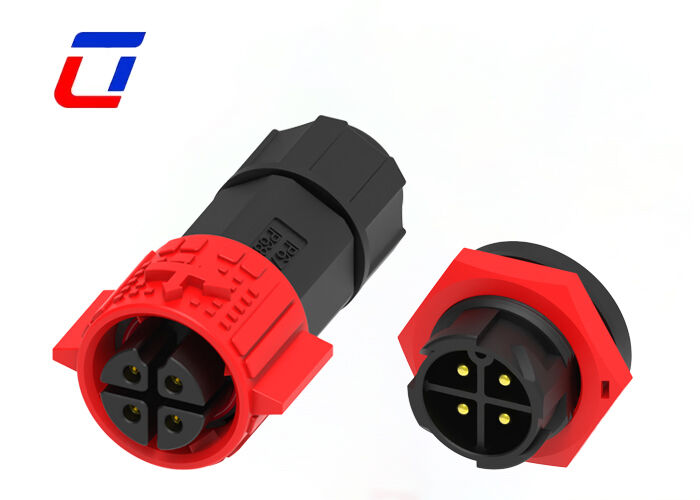

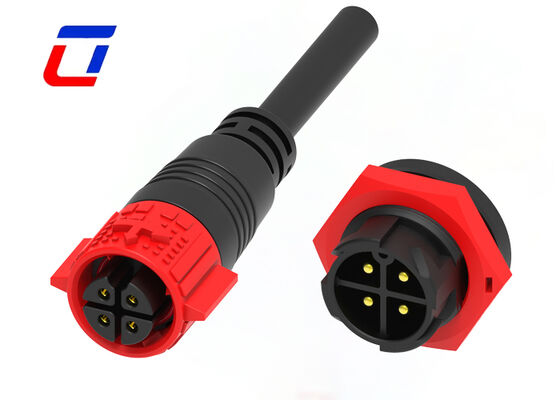

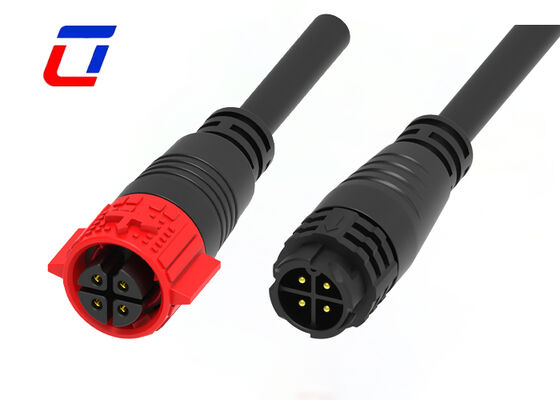

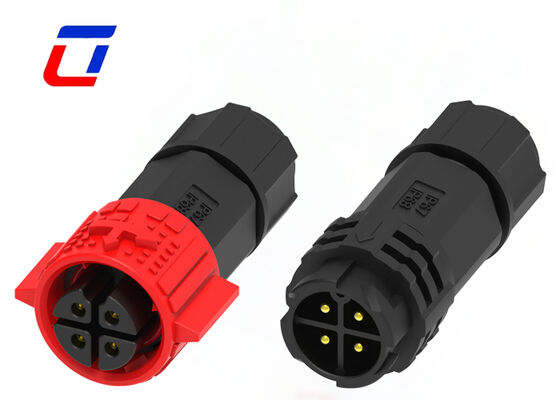

Name: 20A PA66 4 Pin Wire To Wire Connector M19 Push Lock IP67 Waterproof Power Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products IP67 Waterproof Connector

20A PA66 4 Pin Wire To Wire Connector M19 Push Lock IP67 Waterproof Power Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Current Rating:	15A	Rated Voltage:	300V
Material:	PA66	Flame-resistant Rating:	UL94-V0
Contact Material:	Brass Gold-Plated	Color:	Red Blue White Black Yellow
Highlight:	20A PA66 wire to wire connector , 4 pin M19 push lock connector , IP67 waterproof power connector

20A PA66 4 Pin Wire To Wire Connector M19 Push Lock IP67 Waterproof Power Connector

Quick Description

Ulinkcon M19 4Pin IP67 waterproof wire-to-wire connector is made of high-strength flame-retardant PA66 material, specially designed for 20A high-current pure power transmission. Adopting professional wire-to-wire docking and push-lock structure, it focuses on stable outdoor power supply without redundant signal functions. Featuring IP67 waterproof rating, low power loss and vibration resistance, it is a durable and efficient power connection solution for outdoor lighting and industrial power equipment.

4-Pin Pure Power Transmission & 20A High Current:Optimized 4-pin power-only layout with enlarged conductive area supports 20A continuous high-current transmission. It features low heat generation and low power loss without signal circuit interference, ensuring stable full-load power output for long-term outdoor low-voltage high-power equipment operation.
Flame-Retardant PA66 Industrial Housing:Constructed with high-strength PA66 engineering plastic with excellent flame retardancy and impact resistance. It resists high and low temperatures, UV radiation and deformation, adapting to harsh outdoor environments such as sun exposure, rain erosion and temperature changes with long service life.
Push-Lock & Flexible Wire-To-Wire Design:Professional wire-to-wire structure supports direct cable-to-cable interconnection with flexible wiring without board installation. The upgraded tool-free push-lock mechanism enables fast plugging and stable locking with anti-loosening and anti-vibration performance, greatly improving on-site wiring and maintenance efficiency.
IP67 All-Weather Waterproof & Dustproof Performance:Equipped with high-elastic sealing gaskets to form a fully enclosed cavity for standard IP67 protection. It effectively blocks rainwater, moisture, dust and sand ingress, avoiding electric leakage, short circuit and poor contact to ensure all-weather safe and stable operation of outdoor power equipment.

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters
Number of Poles	4Pin
Current Rating	20A max.
Voltage Rating	300VAC max
Durability Voltage	1000VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Design Sketch

FAQ

1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

2. Q: Can I have custom label?
A: Yes,of course,you can make you own private label and package,if you need to design the packaging ,we also have professionaldesigner to serve you.

3. Q: How can I get samples?

A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
