Name: 15A+5A Waterproof Multi Pin Connectors 3+4 Pin M19 Push Lock Cable To Board Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Multi Pin Connectors Waterproof

15A+5A Waterproof Multi Pin Connectors 3+4 Pin M19 Push Lock Cable To Board Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	3+4Pin	Current Rating:	15+5A
Rated Voltage:	300V	Material:	PA66
Protection Level:	IP67	Flame-resistant Rating:	UL94-V0
Highlight:	15A waterproof multi pin connector , 5A M19 push lock connector , 3+4 pin cable to board connector

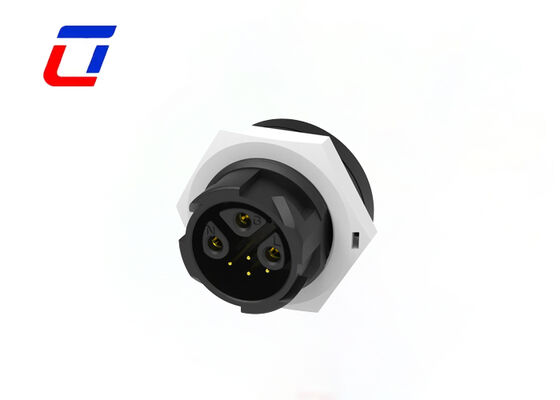

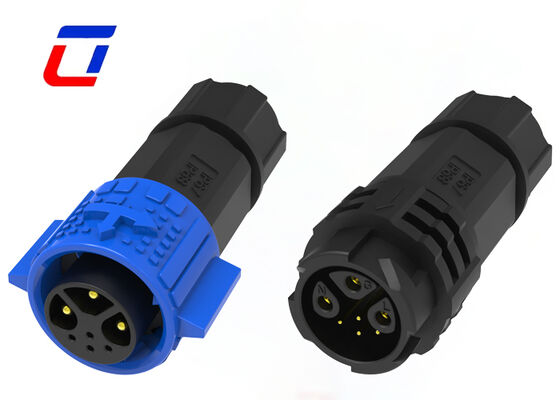

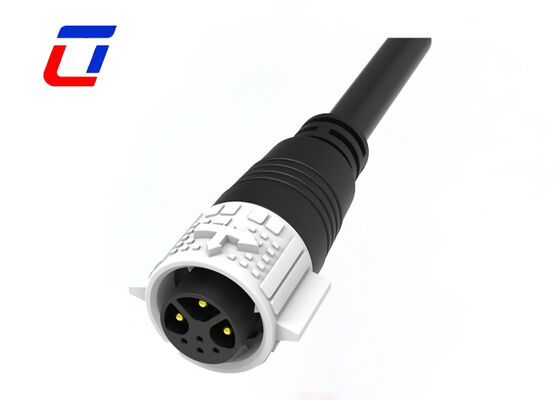

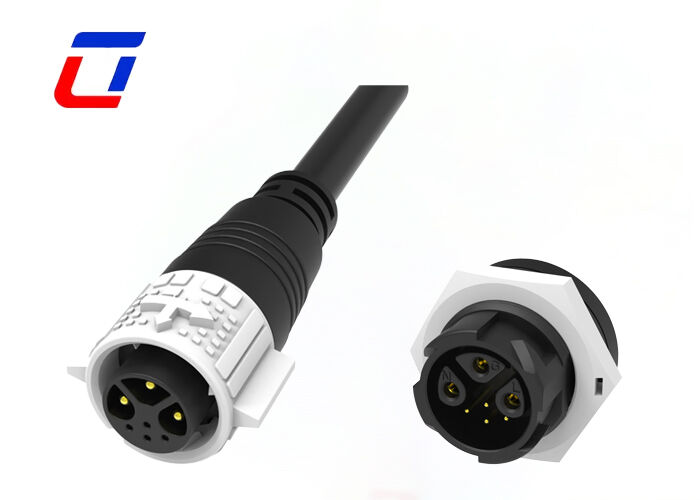

15A+5A Waterproof Multi Pin Connectors 3+4 Pin M19 Push Lock Cable To Board

Product Overview

Outdoor Waterproof Connector M19 3+4 Pin IP67 Waterproof Connector Wire To Board

Quick Description

3+4 Pin Separated Power & Signal Layout:Optimized 3+4 pin configuration achieves dual functional integration. 3 pins support 15A high-power main power supply for equipment load operation, while 4 independent pins undertake 5A multi-channel data signal transmission. It realizes one-piece power and signal docking and greatly simplifies onboard wiring layout.
Dual Current Rating for Graded Load Operation:Dual current design of 15A power and 5A signal avoids current conflict between strong and weak electricity. It effectively prevents unstable power output and signal disorder caused by current impact, ensuring safe and long-term continuous operation of intelligent equipment.
Precise Cable-To-Board Structure:Adopts standard cable-to-board docking design for direct PCB board installation. The integrated cable molding and precise board terminal positioning ensure compact and space-saving assembly, perfectly suitable for automated production and modular equipment internal wiring.
User-Friendly Push-Lock Connection:Upgraded push-type self-locking mechanism enables tool-free quick plugging and unlocking. Smoother operation than traditional snap locks, it improves efficiency for mass assembly and daily maintenance. The locked status remains firm against vibration and slight tension without disconnection.
Waterproof, Dustproof & Anti-Interference:Built-in high-elastic sealing gaskets provide excellent all-weather protection against rain, moisture and dust. Physical isolation between power and signal circuits shields electromagnetic interference, effectively avoiding light flicker, signal delay and data loss.
Industrial Weather Resistance & Wide Application:High-strength insulating and weather-resistant housing plus thickened conductive pins ensure UV resistance, temperature resistance and abrasion resistance. Widely applied in outdoor intelligent LED lighting, industrial controllers, security modules and new energy supporting devices, with strict factory testing and stable mass supply capacity.

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported
OEM/ODM welcome

Technical Specifications

Electrical Parameters
Number of Poles	3+4Pin
Current Rating	20A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.
Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Operation Parameters

Voltage Rating	600VAC max
Current Rating	20A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch
