Name: IP67 15A+5A M19 Multi Pin Waterproof Connector 3+9 Pin Power Data Connector Outdoor
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Multi Pin Connectors Waterproof

IP67 15A+5A M19 Multi Pin Waterproof Connector 3+9 Pin Power Data Connector Outdoor

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	12(3+9)Pin	Current:	15A Power+5A Signal
Voltage:	300V	Temperature Range:	-40℃~+105℃
Material:	Brass Gold-Plated	Flame-resistant Rating:	UL94-V0
Highlight:	IP67 waterproof multi pin connector , 15A+5A M19 power data connector , 3+9 pin outdoor waterproof connector

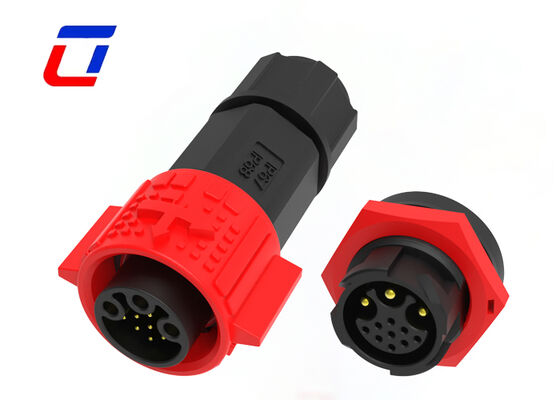

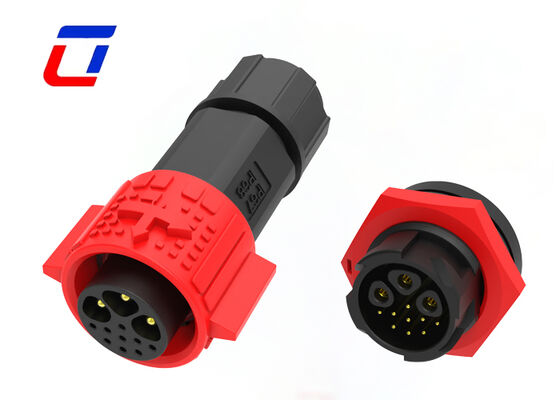

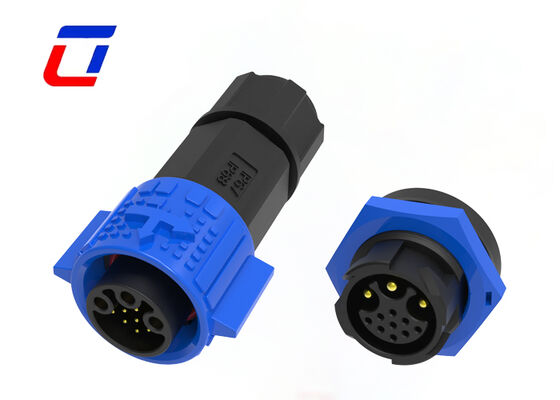

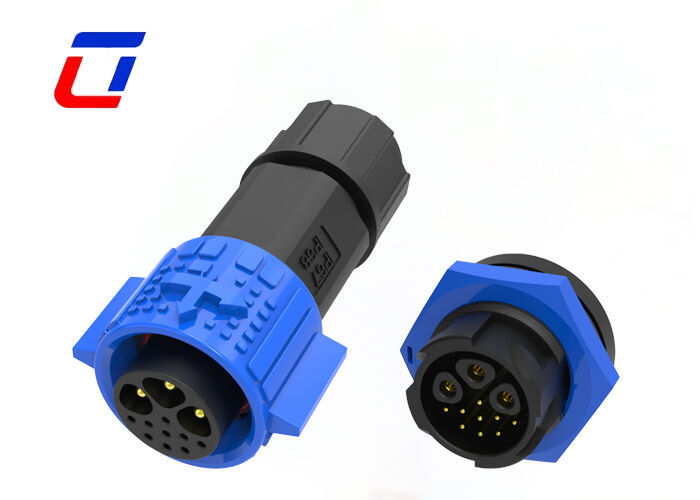

IP67 15A+5A M19 Multi Pin Waterproof Connector 3+9 Pin Power Data Connector Outdoor

Quick Release Wire Connector M19 3+9 Pin Waterproof 300V Connector

Ulinkcon M19 3+9 Pin outdoor waterproof connector features a unique partitioned design for power and data integration. It combines 15A high-current power supply and 5A stable data signal transmission in one connector. With standard IP67 waterproof rating, it perfectly meets the dual needs of power supply and signal transmission for outdoor intelligent equipment, lighting projects and industrial control devices, serving as an all-in-one composite connection solution.

3+9 Pin Integrated Power & Data Design:Adopts exclusive 3+9 pin layout for separated power and signal transmission. 3 pins support 15A high-power power supply, while 9 pins handle 5A low-voltage data signals. Physical isolation of circuits avoids crosstalk, replacing traditional dual-connector wiring and greatly simplifying on-site wiring structure.
Dual Current Rating for Precise Load Adaptation:Equipped with 15A main power output and 5A auxiliary signal transmission, matching both high-power equipment power supply and low-voltage signal control requirements. It ensures synchronous stable operation of equipment power and data feedback, effectively preventing overload and low-voltage failure.
IP67 Standard Outdoor Protection:Built with integrated precision sealing structure and high-elastic waterproof gaskets to achieve IP67 waterproof and dustproof performance. It resists rain splash, dust accumulation, moisture condensation and temperature difference erosion, ensuring reliable all-weather operation in conventional harsh outdoor environments.
Anti-Interference & Lossless Transmission:Independent partition wiring separates power circuits from data circuits, eliminating electromagnetic interference caused by high current. It effectively avoids signal lag, data loss and equipment flicker, ensuring accurate and stable transmission of control data and feedback signals.
Tool-Free Quick Lock Installation:Adopts classic thread-free self-locking structure of M19 series. Plug and lock instantly without tools, saving installation and maintenance time for outdoor and high-altitude operations. The reinforced locking design is vibration-proof and anti-loosening for long-term stable connection.

Main Features

Push lock quick release system for easy operation
Multiple core configurations: 2Pin, 3Pin, 4Pin, 5Pin for Power
Power-signal combinations: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
Signal-only options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
Field assembly versions available: wire-to-wire and wire-to-board options
20A current rating for long-term operation
Cable assembly services supported with customization options
OEM/ODM services welcome

Technical Specifications

Connector System	Cable-to-Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Material	PA66
Number of Poles	3+9
Current Rating	15A+5A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s
Operating Temperature Range	-40°C to 105°C
IP Protection Rating	IP67
Durability Rating	250-251 cycles
UL Flammability Rating	UL 94V-0
