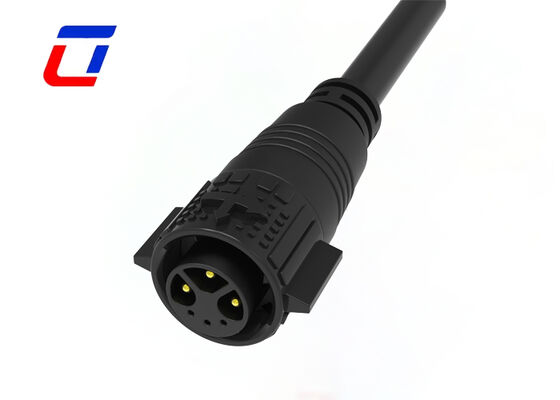

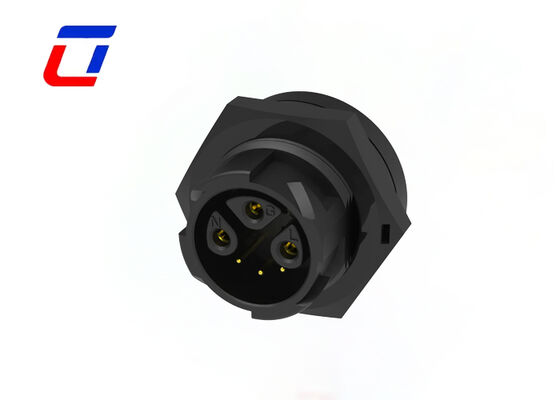

PA66 M19 Outdoor Waterproof Cable Connector Power And Signal 3+3 Multi Pin Connectors 300V

1. 3+3 Split Pin Design for Isolated Power & Signal

• This M19 multi-pin connector adopts a 3+3 independent functional layout with dual integrated circuits. 3 pins are dedicated for power supply while 3 separate pins for signal transmission. Physical isolation completely eliminates electromagnetic crosstalk and current interference.
• Rated at 300V low voltage with sufficient electrical safety margin, it supports simultaneous stable power output and multi-channel precise signal transmission, greatly simplifying equipment wiring harness arrangement.
• Evenly distributed and independently insulated pins ensure sensitive transmission response without data loss or signal delay, supporting long-term continuous operation of intelligent electrical equipment.

2. Premium PA66 Weather-Resistant Housing

• The connector shell is made ofhigh-strength virgin PA66 plastic, featuring high toughness, impact resistance and compression resistance. It resists deformation and damage caused by mechanical collision and equipment vibration.
• With outstanding UV resistance, temperature resistance and aging resistance, the material withstands long-term outdoor sun exposure, rain erosion and extreme temperature changes without yellowing or embrittlement.
• Flame-retardant and high-insulation properties meet 300V low-voltage safety standards, effectively preventing electric leakage, short circuit and static interference for safe outdoor operation.

3. Full-Coverage Outdoor Waterproof & Dustproof Performance

• Equipped with precision closed-loop sealing structure and high-elasticity rubber ring, the connector achieves all-round protection against rain splash, water immersion, dust accumulation and condensed moisture after tight docking.
• Optimized for harsh outdoor and humid industrial environments, it avoids power failure and signal abnormality caused by terminal oxidation and dust accumulation, reducing equipment maintenance frequency.
• Aging-resistant sealing components maintain durable and stable sealing performance after repeated plugging and long-term operation, ensuring all-weather reliable connection.

4. Stable & Easy-To-Install Docking Structure

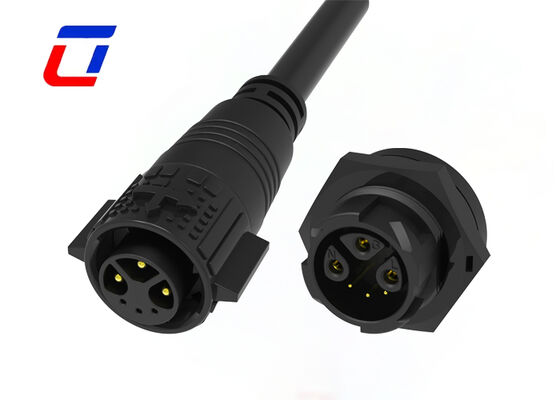

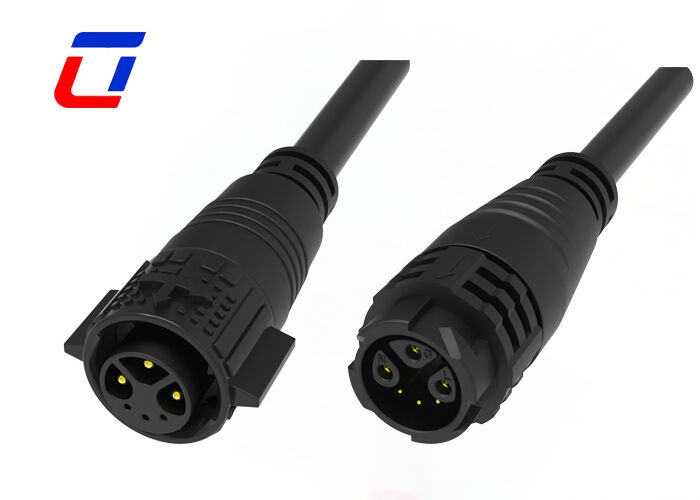

• Standard M19 circular male-female plug-in design is fully compatible with mainstream wire harnesses. It supports fast tool-free installation with high docking tolerance for mass production and on-site wiring.
• Built-in anti-loosening limit structure ensures tight locking, resisting equipment vibration and wire pulling to prevent accidental disconnection and poor contact.
• High-purity internal conductive pins feature low transmission loss and excellent anti-oxidation performance, ensuring stable electrical performance and long service life in complex environments.

5. Wide Application Versatility

• Ideal for integrated power and signal connection of outdoor intelligent devices, industrial automation terminals, landscape lighting systems and security monitoring equipment.
• Perfect for electrical equipment requiring simultaneous power & signal transmission, PA66 weather resistance and outdoor waterproof durability under 300V low voltage conditions.
