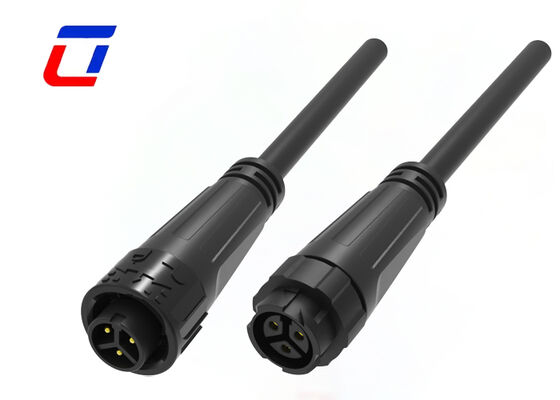

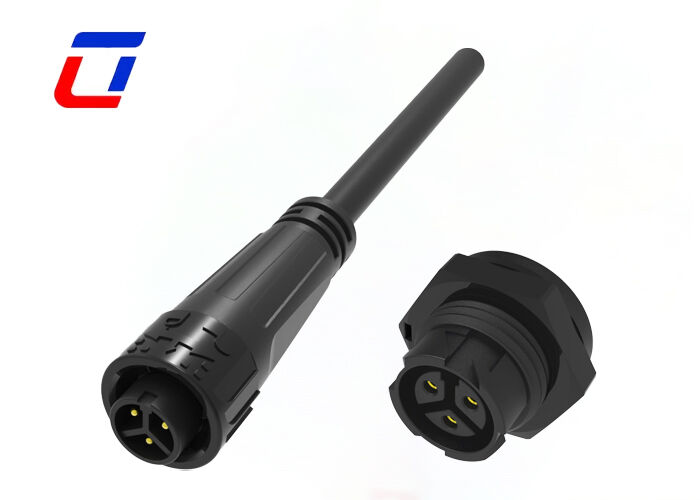

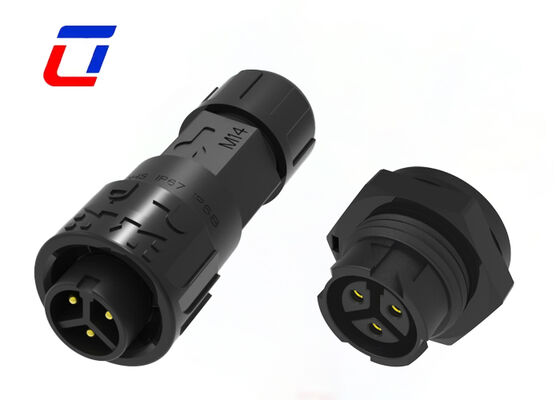

Name: IP67 3 Pin Connector Male And Female M16 10A 300V Waterproof Power Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products IP67 Waterproof Connector

IP67 3 Pin Connector Male And Female M16 10A 300V Waterproof Power Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3Pin Wire To Wire/Board	Current:	10A Max For Power
Rated Voltage:	300V	Waterproof Rating:	IP67
Flame-resistant Rating:	UL94-V0	Color:	Red Blue White Black Yellow
Highlight:	IP67 waterproof power connector , M16 3 pin connector , 10A 300V waterproof connector

3 Pin Connector Male And Female M16 10A 300V Waterproof Power Connector

3 Pin Power Connector Product Overview

1. Standard Electrical Parameters
Rated 300V voltage and 10A current, 3-pin circuit design for stable power supply of low-voltage devices
Conductive pins feature low contact resistance, no obvious overheating under long continuous operation with low power loss
Matched male and female set delivers stable conduction without intermittent power failure

2. IP67 All-Weather Sealing Protection
Built-in high-elastic sealing gasket fits tightly to block rain, dust, mist and grease from entering interior
IP67 rating supports outdoor humid and dusty environments, preventing pin oxidation and short circuit
Temperature & aging resistant, sealing performance remains reliable after long-term outdoor use

3. Universal M16 Circular Size
Standard M16 circular dimension fits most standard equipment holes, easy to install and replace
Compact round design saves internal space of devices and keeps wiring tidy

4. Durable Insulated Plastic Housing
Integrated premium engineering plastic with outstanding insulation to avoid electric leakage risks
Impact and wear resistant, high toughness against crack during frequent assembly and disassembly

5. Wide Application
Perfect for outdoor lighting, mini industrial controllers, security devices, smart home and small outdoor electrical power connection

M16 IP67 Waterproof Connectors Key Features

Push lock quick release system for easy operation
Multiple pin configurations available: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
Field assembly versions: wire to wire and wire to board options
High current rating up to 10A for long-term operation
Cable assembly service supported with customization options
OEM/ODM services available

Technical Specifications Of 3 Pin Power Connector

Electrical Parameters

Number of Poles	3Pin waterproof connector
Current Rating	10A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Production Dimension

Technical Details

Frequently Asked Questions

Who is responsible for customs clearance? Do you provide necessary documents?

We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.

Are your products certified? What certifications do you have?

All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

Can I have custom label?

Yes,of course,you can make you own private label and package,if you need to design the packaging ,we also have professionaldesigner to serve you.
