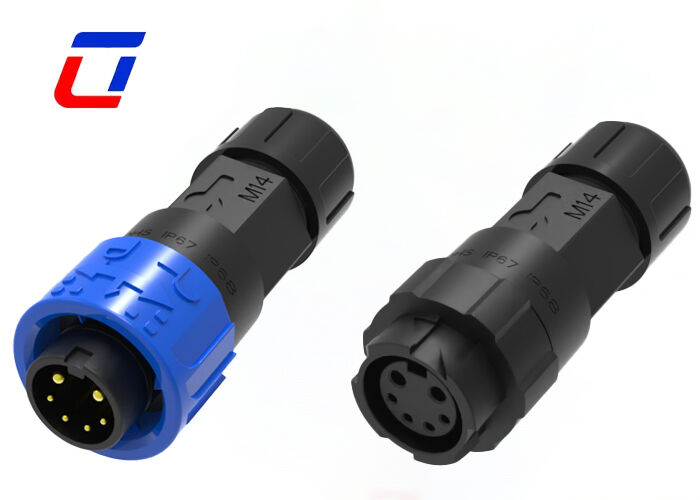

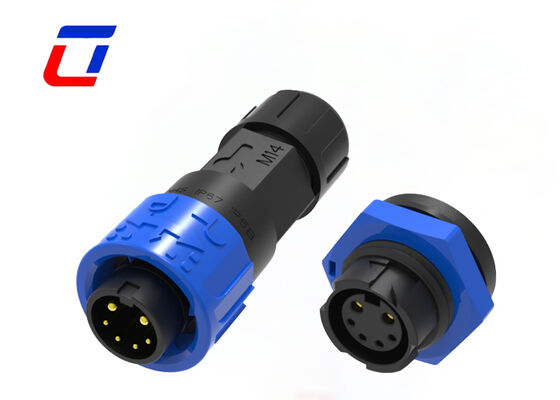

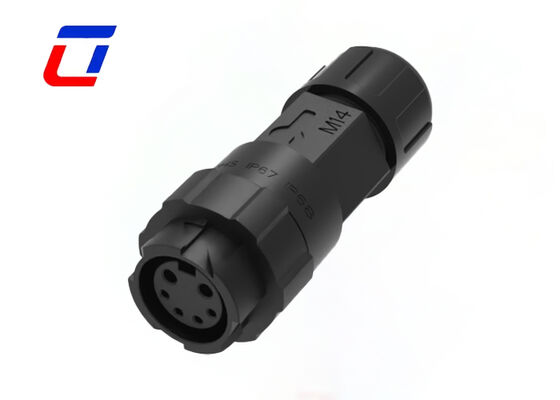

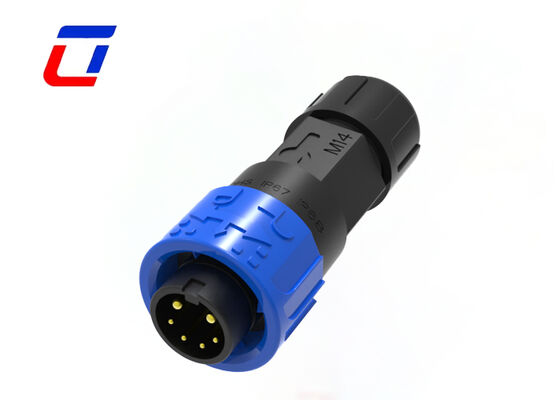

Name: M16 2+4 Pin Plastic Circular Connector 300V Waterproof Outdoor Electrical Signal Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products IP67 Waterproof Connector

M16 2+4 Pin Plastic Circular Connector 300V Waterproof Outdoor Electrical Signal Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:

2+4pin Power&Data

Material:

PA66,UL94-V0

Contact Material:

Brass Gold-Plated

Operating Temperature:

-40℃-+105℃

Highlight:

M16 plastic circular connector waterproof

4 pin electrical signal connector 300V

IP67 waterproof outdoor connector

M16 2+4 Pin Circular Connector ODM Industrial Power And Signal Plug

The UL94-V0 certified M16 2+4 multi-pin male and female wire connector is a fire-resistant integrated connection solution for combined power and signal transmission. Adopting a professional 2+4 pin grouping design, it realizes independent power supply and multi-channel signal transmission in one compact unit. Equipped with advanced tool-free Push Lock self-locking structure and IP67 waterproof performance, this mini M16 connector delivers superior fire safety, stable conductivity and strong environmental adaptability for industrial and outdoor electrical applications.

IP67 Quick Lock Connectors Application Industries

Growth Lights
Communications Application
Product Coding Machines
Inventory Product Coding
Inkjet Systems
Solar System
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Communications Equipment
Heavy Machinery

Product Features

1. 2+4 Pin Power & Signal Hybrid Design

Feature 2 power pins + 4 signal pins hybrid structure, 15A rated current for power transmission and 5A for precise signal transmission
Rated 300V voltage, independent power and signal circuits avoid current interference, effectively prevent signal delay, distortion and noise
Integrates power supply and signal transmission in one single connector, greatly simplifies equipment wiring layout

2. Reliable Electrical Performance

Optimized current-carrying design ensures stable power output without overheating or voltage drop under long-term heavy load
Sensitive and accurate signal transmission guarantees precise equipment control and stable system operation
Excellent electrical compatibility for long-term continuous operation of low-voltage outdoor electrical devices

3. High-Strength Plastic Construction

Made of premium integrated engineering plastic, lightweight, tough, wear-resistant and anti-breakage
Superior insulation performance effectively prevents electric leakage, ensuring safe daily operation
Anti-aging and weather-resistant, suitable for long-term outdoor application

4. Outdoor Waterproof & Dustproof Protection

High-elastic sealing structure ensures tight fitting, effectively blocking water, moisture, dust and sand intrusion
Resists harsh outdoor conditions such as rain, snow, high humidity and strong sunlight, avoiding oxidation and short circuit
All-weather protection greatly extends the service life of the connector and equipment

5. Standard M16 Universal Size

Standard M16 circular dimension with strong compatibility, fits most industrial and outdoor equipment mounting holes
Precise male and female mating ensures tight connection, easy for installation, inspection and replacement

6. Wide Application

Ideal for outdoor lighting, security monitoring, new energy equipment, industrial automation, outdoor electrical control systems and instrument power & signal connection

M16 2+4 Pin Technical Specifications

Electrical Parameters
Number of Poles	2+4 pin waterproof connector
Current Rating	15+5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Specifications

Frequently Asked Questions

Q1: Who is responsible for customs clearance? Do you provide necessary documents?

A: We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.

Q2: How to track my shipment?

A: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.

Q3: How many materials you can provide?

A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
