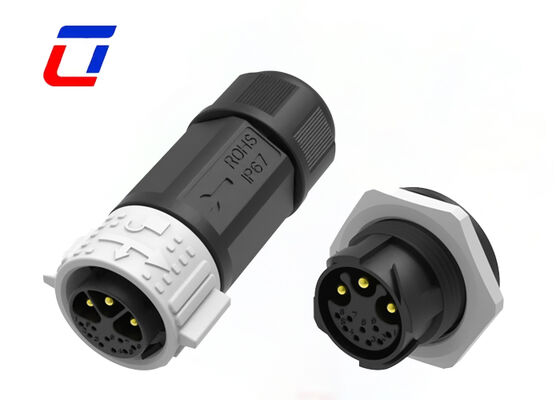

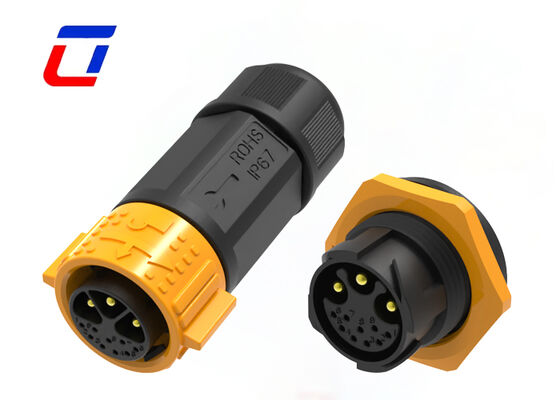

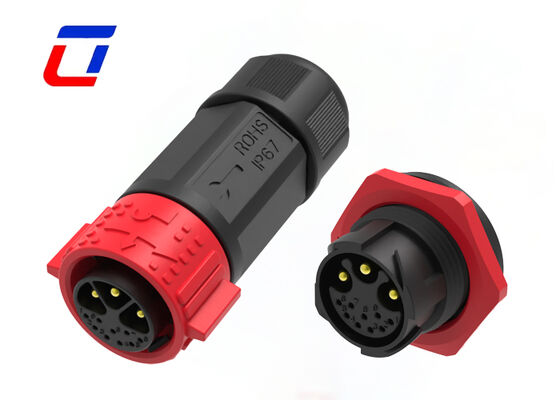

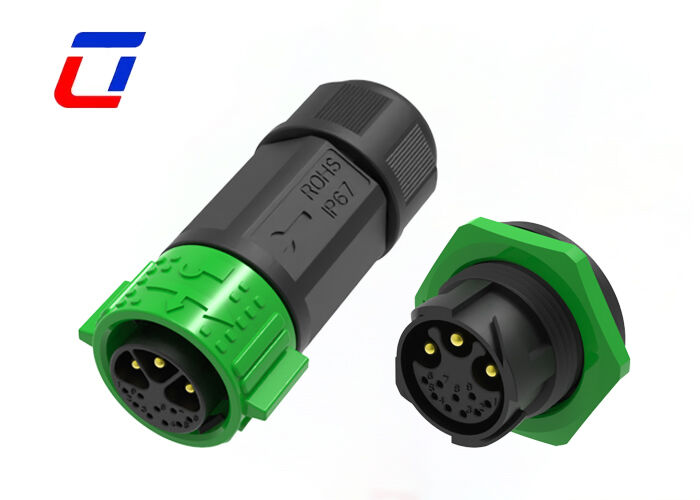

Multi Pin Connector 3+9 Pin M25 20A 300V Outdoor Waterproof Connector
Main Features
- Push lock quick release system
- Multic-core options: 2Pin,3Pin,4Pin,5Pin,3+2Pin,3+3Pin,3+9Pin,3+13Pin and 2+20Pin
- Field assembly version:both wire to wire and wire to board options
- Current rated 20A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
Application industries
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
Quick Details of 3+9Pin Connector Male female
Quick Self-Locking Structure (Thread-Free)
One-press snap locking design, clear locking click feedback, anti-loosening anti-vibration structure, no need to screw and twist; avoid accidental disconnection under long-term vibration working conditions, support over 5000 times stable plug-in cycles.
3+9 Hybrid Pin Layout (Power + Signal Separation)
3 large-diameter power pins for main power circuit, 9 small signal pins for sensor, communication and control lines, independent pin isolation design to avoid signal interference, realize one connector for dual transmission.
High Performance PA66 Housing
UL94-V0 flame retardant PA66 nylon, high tensile strength, anti-aging, oil resistance, acid and alkali corrosion resistance, wide working temperature range -40℃ ~ +105℃, adapt outdoor and equipment internal harsh temperature environment.
IP67 Full Sealing Protection
Integrated high elastic silicone O-ring sealing system, fully mated locking up to IP67 protection grade, prevent water splash, dust, moisture infiltration, suitable for outdoor, workshop, equipment cabinet and other wet/dusty scenarios.
300V Safe Rated Voltage
Standard rated voltage 300V AC/DC, gold-plated copper alloy pins, ultra-low contact resistance, stable conductive performance, no heating during long-time continuous load operation, safe for new energy power loop.
Safe & Environmentally Friendly
Fully compliant with RoHS & REACH environmental standards, non-toxic and pollution-free materials, optional panel mount / cable straight type two installation forms, support customer customized pin current and cable size.
| Product Type Features |
| Connector System |
Cable-to-Board |
| Sealable |
Yes |
| Connector & Contact Terminates To |
Wire & Cable |
| Circular Connector Type |
Plug, Receptacle |
| Shell Type |
Plastic Shell |
| Product Type |
Connector Kit |
| Configuration Features |
| Number of Positions |
3+9 |
| Number of Signal Positions |
9 |
| Contacts Preloaded |
Yes |
| Electrical Characteristics |
| Operating Voltage (VAC) |
600V max. |
| Operating Voltage (VDC) |
600V max. |
| Body Features |
| Shell Material |
PA66 |
| Circular Connector Insulation Material Type |
Low Fire Hazard Thermoplastic |
| Hermetically Sealed |
Yes |
| Entry Style |
Side |
| Environmental Protection Type |
Elastomer Sealed, Hermetically Sealed |
| O-Ring Material |
Elastomer Sealed, Hermetically Sealed |
| Environmental Protection |
Yes |
| Contact Features |
| Contact Current Rating (Max) (A) . |
15A max. |
| Circular Connector Contact Type |
Pin-Socket |
| Mechanical Attachment |
| Connector Mounting Type |
Cable Mount (Free-Hanging) |
| Mating Alignment Type |
Keyed |
| Mating Retention |
With |
| Dimensions |
| Wire Size (AWG) |
20AWG,18AWG,16AWG,14AWG, |
| Usage Conditions |
| Operating Temperature Range (°C) |
-40 ~105°C |
| IP Water Sealing Level |
IP67 |
| IP Dust Sealing Level |
6 |
| Industry Standards |
| UL Flammability Rating |
UL 94V-0 |
Production Dimension
More Technical Details
FAQ
Q1:What is rated voltage?
A1:Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.
Q2:What if there are quality issues with the received goods?
A2: Please provide photos/videos of the defective products within 7 days of receipt. We will verify the issue and offer solutions such as free replacement, repair, or partial refund based on the situation.
Q3:How do you guarantee product quality?
A3:We implement strict quality control throughout the production process: raw material inspection, in-line testing, and final sampling inspection. All products come with a 12-month warranty against manufacturing defects.
