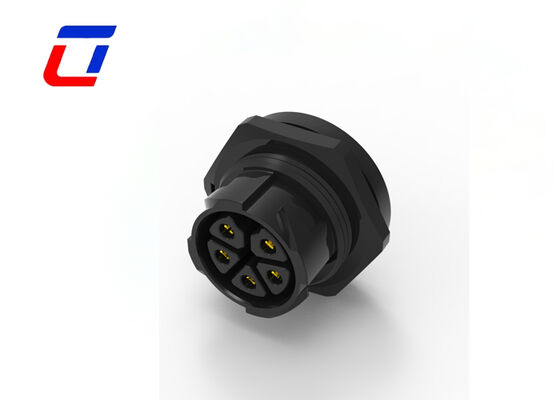

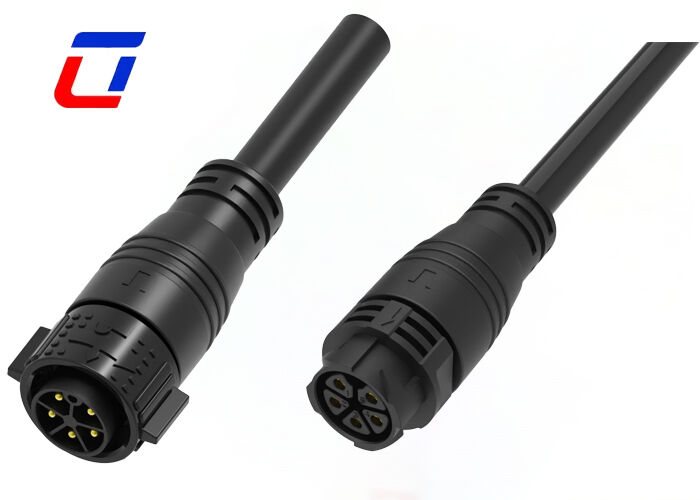

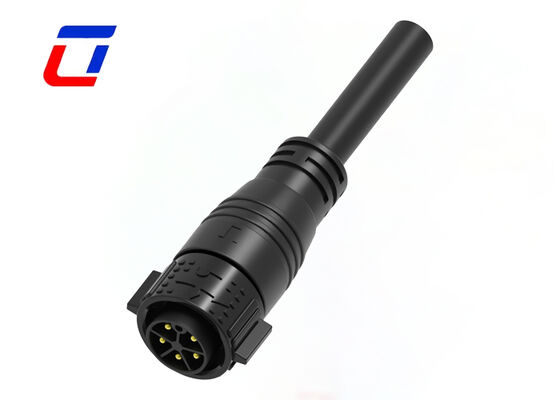

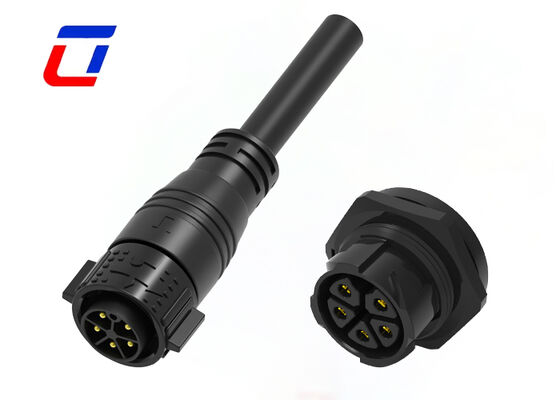

Quick Lock M25 20A 5 Pin Electrical Male Female Connectors
This M25 5-pin electrical wire-to-board connector is a 300V round waterproof connector designed for industrial power applications. Featuring a push-lock quick-release system and male-female bulkhead design, it provides reliable power connectivity for panel-mounted equipment in demanding environments.
Product Overview
1. Standard Electrical Parameters
Rated current 20A, 5-pin matched male and female set realizes multi-circuit power transmission with stable current output
Comply with RoHS environmental standard, free of harmful heavy metals, fully compliant for overseas export
2. PA66 Flame Retardant Plastic Housing
Constructed with high-strength PA66 plastic, impact-proof and anti-aging, no cracking or embrittlement after long service
Excellent insulation performance avoids leakage risk, stable physical and electrical performance under wide temperature range
3. Push Lock Fast Connection Structure
Push-to-lock design automatically locks after insertion, tool-free plug and separation for easy operation
Tight buckle engagement delivers reliable anti-vibration performance, preventing loose connection and power cut under continuous vibration
4. Universal M25 Standard Size
Standard M25 dimension matches most equipment panel holes, male and female heads align precisely without offset
Separated male & female matching design simplifies wiring, equipment assembly and later replacement maintenance
5. Broad Application Scope
Suitable for industrial control units, outdoor lighting, small new energy equipment, smart instruments and automation power connection lines
Key Features
- Push-lock quick release system for tool-free operation
- Multiple pin configurations available: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin, 5+2Pin, and 2+20Pin
- Field assembly versions: wire-to-wire and wire-to-board options
- High-current rated waterproof connector suitable for continuous 20A operation
- Cable assembly service supported with customization options
- OEM/ODM services welcome
Electrical Specifications
| Parameter |
Specification |
| Number of Poles |
5Pin waterproof connector |
| Current Rating |
20A maximum |
| Voltage Rating |
300VAC maximum |
| Durability Voltage |
1500VAC @ 60 seconds |
Technical Specifications
| Parameter |
Specification |
| Contact Resistance |
10 mΩ maximum |
| Insulation Resistance |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C to +105°C |
| IP Rating |
IP67 (1 meter / 30 minutes) |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
Operation Parameters
| Parameter |
Specification |
| Voltage Rating |
600VAC maximum |
| Current Rating |
30A maximum |
| Minimum Wire Size OD |
6.5mm - 10mm |
| Maximum Wire Size OD |
10.5mm - 18mm |
| Maximum Cable Cross Section Area |
0.5mm² - 6.0mm² |
Application Industries
- Communications equipment
- Product coding machines and inkjet systems
- Inventory product coding equipment
- Industrial inkjet equipment
- Solar power systems
- Electric power equipment
- Laboratory forensic & pathology equipment
- Heavy machinery
Production Dimensions
Technical Details
