Name: M19 3+3 Pin 15A+5A Molded Cable Connector PA66 Multi Pin Male Female Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Multi Pin Connectors Waterproof

M19 3+3 Pin 15A+5A Molded Cable Connector PA66 Multi Pin Male Female Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3+3 Pin Power&Signal	Waterproof Rating:	IP67
Current:	15A+5A	Temperature Range:	-40℃~+105℃
Flame-resistant Rating:	UL94-V0	Connecting Mode:	Push Locking
Highlight:	M19 3+3 pin waterproof connector , PA66 multi pin male female connector , 15A+5A molded cable connector

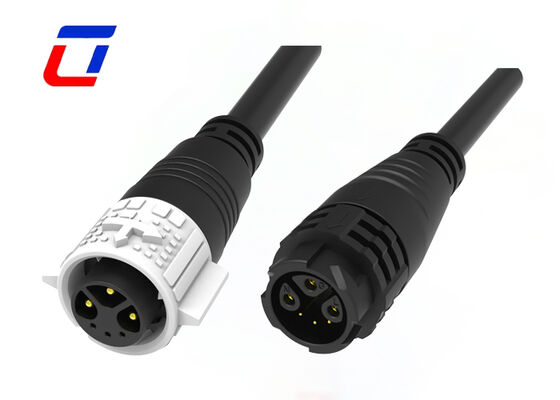

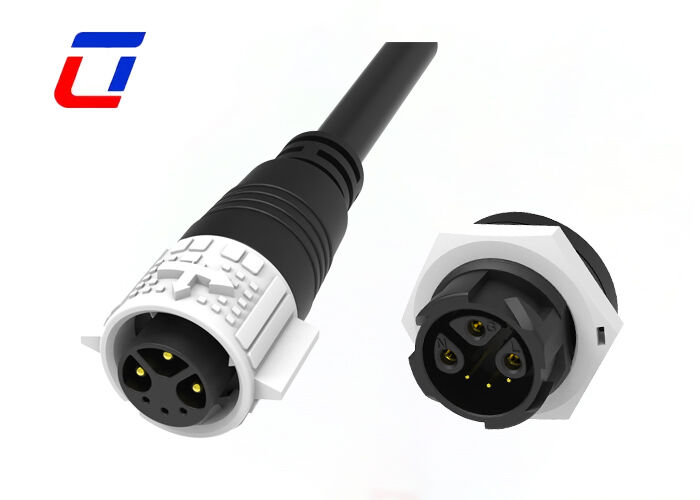

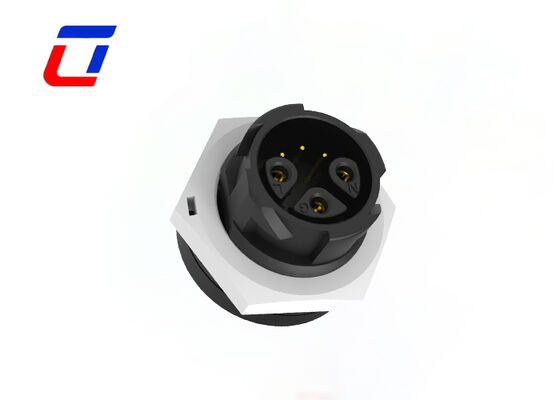

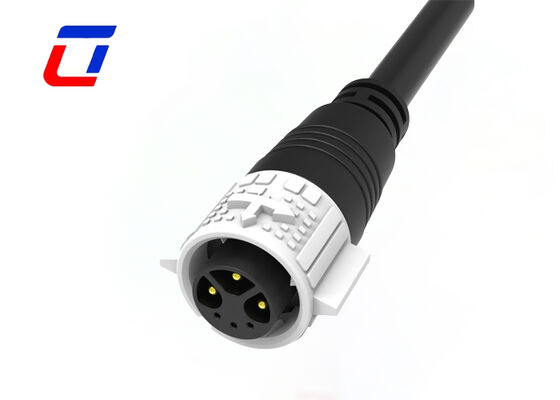

3+3 Pin M19 Cable Connector Quick Lock IP67 Waterproof Connectors 300V

Widely used in industrial automatic control equipment, outdoor intelligent electromechanical devices, landscape lighting systems, security monitoring electronic control systems, small new energy equipment, intelligent sensor integrated machines and building intelligent control devices. Ideal for integrated wiring scenarios requiring synchronous high-power power supply and multi-channel weak-current signal transmission, suitable for mass equipment production and standardized engineering supporting projects.

Product Overview

Dual Current Rating 3+3 Isolated Design: Adopting exclusive dual-spec current distribution, 3 dedicated pins stably support 15A high-current main power supply for equipment operation, while another 3 independent pins undertake 5A low-current precise signal transmission. Physical isolation between power and signal circuits completely avoids current interference, signal clutter and data mutation, ensuring stable power output and accurate signal synchronization simultaneously.
Flame-Retardant PA66 Industrial Housing: Made of modified PA66 engineering plastic with UL94-V0 flame retardant grade, the housing boasts outstanding impact resistance, compression resistance and deformation resistance. With professional weather-resistant treatment, it operates steadily within -40℃~+105℃ wide temperature range, resisting UV radiation, moisture corrosion and aging cracking, adapting to long-term indoor and outdoor industrial working conditions.
Integrated Molded Cable Structure for Superior Durability: The plug and cable are integrally injection-molded without splicing gaps, fundamentally preventing dust and water penetration. The reinforced cable root with stress buffer design withstands frequent bending, pulling and mechanical tension, effectively solving common faults such as loose core and wire breakage of assembled connectors.
Complete Male & Female Mating with High Compatibility: Precisely matched male and female pairs deliver smooth plugging and high fault tolerance, avoiding terminal damage and circuit failure caused by misplugging. The standard M19 circular dimension is universally compatible with most mainstream industrial control, electromechanical and lighting equipment, supporting multiple installation modes for flexible application.
Layered Insulation for Enhanced Electrical Safety: Each pin adopts thickened independent insulation isolation structure, with excellent voltage resistance and surge resistance. It effectively prevents electric leakage, short circuit and circuit crosstalk. The professional strong and weak current isolation design greatly improves operational safety during hybrid transmission, supporting long-term continuous equipment operation.
Integrated Wiring Saves Cost & Improves Efficiency: This all-in-one connector integrates power and signal transmission functions, replacing separate power and signal connectors. It simplifies internal wiring structure, reduces external interface quantity and assembly procedures, lowering production and maintenance costs while minimizing circuit failure points for mass production and standardized engineering wiring.

Key Features

Push lock quick release system for easy installation
Multiple core configurations: 2Pin, 3Pin, 4Pin, 5Pin for Power
Combined power/signal options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin, 2+20Pin
Signal-only options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin, 18Pin
Field assembly versions: wire to wire and wire to board options
20A current rating for continuous operation
Cable assembly service and OEM/ODM support available

Technical Specifications

Product Type Features	Cable-to-Cable, Sealable, Plastic Shell, Connector Kit
Configuration Features	3+3 Pin (3 power, 3 signal), Contacts Preloaded
Electrical Characteristics	600V AC/DC max operating voltage, 20A max contact current rating
Body Features	PA66 Shell Material, Low Fire Hazard Thermoplastic, IP67 Rated
Contact Features	Pin-Socket Contact Type
Mechanical Attachment	Cable Mount, Keyed Alignment, Mating Retention
Dimensions	Wire Size: 20AWG, 18AWG, 16AWG, 14AWG
Usage Conditions	Operating Temperature: -40°C to 105°C, IP67 Water/Dust Sealing
Industry Standards	UL 94V-0 Flammability Rating

Application Industries

Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Power Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Production Dimensions

Technical Details
