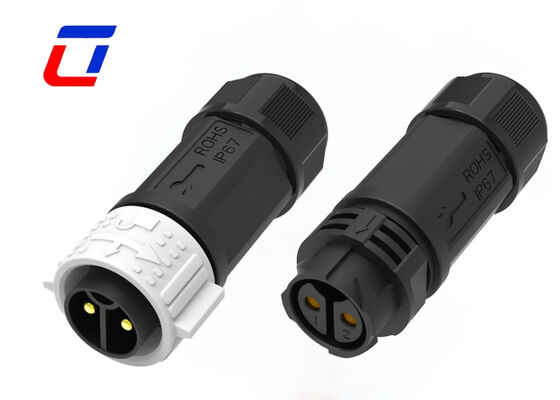

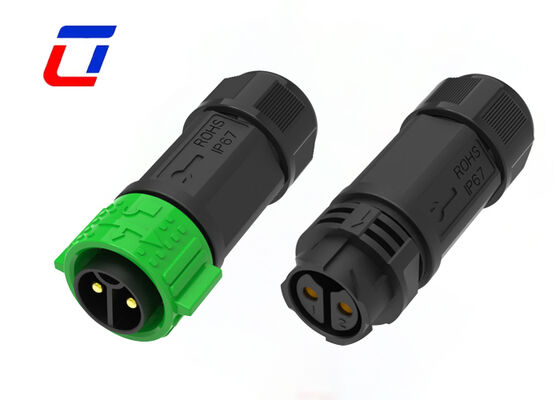

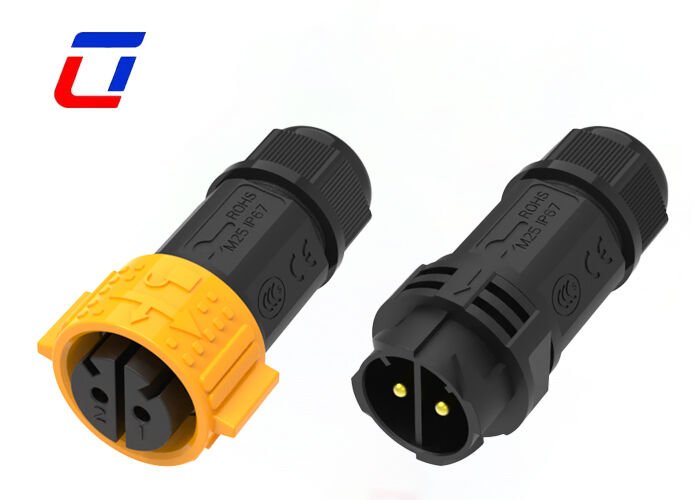

Name: High Current 50A M25 Waterproof Power Connector 2 Pin PA66 Ulinkcon Circular Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Home Products IP67 Waterproof Connector

High Current 50A M25 Waterproof Power Connector 2 Pin PA66 Ulinkcon Circular Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	2PIN For Power	Current:	50A
Waterproof Rating:	IP67	Temperature Range:	-40℃~+105℃
Material:	Nylon& Brass Gold-Planted	Flame-resistant Rating:	UL94-V0
Highlight:	50A M25 waterproof power connector , 2 pin PA66 circular connector , IP67 waterproof high current connector

50A M25 2 Pin High Current Power Connector 600V Waterproof Circular connector

Product Overview

The Ulinkcon M25 2Pin high-current circular waterproof connector is professionally optimized for stable power transmission of high-power equipment, featuring a streamlined structure and superior load-bearing capacity. Made of high-strength modified original PA66 nylon and equipped with a precision circular docking structure, this connector is tailor-made for diverse outdoor and industrial high-current power supply scenarios.

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin, 5+2Pin and 2+20Pin available
Field assembly version: both wire to wire and wire to board options
High current rated waterproof connector good choice up to 50A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Product Description

Dedicated 2-Pin High-current Design for Higher Power Transmission Efficiency: Featuring an independent dual-pin pure power supply structure, this connector realizes centralized circuit load distribution. Adopted thickened integrated high-conductivity copper terminals with ultra-low internal resistance, it produces negligible temperature rise and power loss under continuous 50A full-load operation, maintaining stable and efficient power output during long-duration high-power working conditions.
Modified PA66 Housing with Outstanding Comprehensive Protection Performance: The connector shell is made of upgraded flame-retardant PA66 material with specialized anti-shock and anti-brittle modification treatment. It delivers superior compression resistance, bending resistance and crack toughness compared with ordinary plastic materials. With reliable flame retardancy and insulation properties, it withstands long-term outdoor UV exposure, extreme temperature differences and mild chemical corrosion for durable outdoor service.
Precision Circular Self-locking Structure for Quick & Easy Mating: Designed with high concentricity for smooth plugging and effortless manual locking. The uniform thread engagement ensures tight, seamless and stable connection after locking. It effectively resists daily equipment vibration and mechanical shaking, completely avoiding hidden risks such as poor contact and intermittent power failure.
IP67 Integrated Waterproof Structure for All-Weather Reliable Operation: Equipped with integrated annular sealing gaskets and precision-fitted end faces, the connector achieves full-angle dead-angle-free sealing. It effectively blocks rainwater, dew, dust and humid air from penetrating internal connection parts, enabling steady operation in harsh environments including open-air installation, humid workshops and outdoor equipment cabins throughout the year.

Electrical Parameters

Number of Poles	2Pin waterproof connector
Current Rating	50A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC max
Current Rating	50A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max. Cable Cross Section Area	0.5mm² ~ 6.0mm²

Production Dimension

More Technical Details

Frequently Asked Questions

Are your products certified? What certifications do you have?

All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

Can I have custom label?

Yes, of course, you can make your own private label and package. If you need to design the packaging, we also have professional designer to serve you.

Are your products certified? What certifications do you have?

All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
