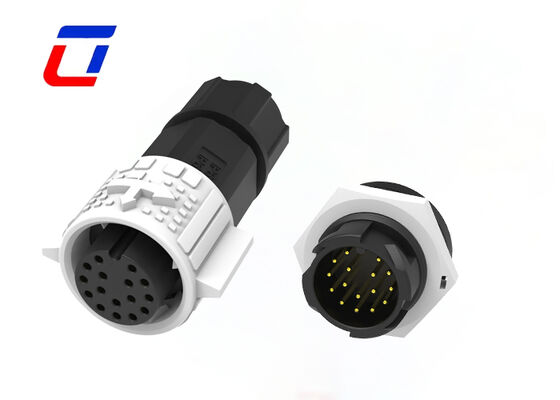

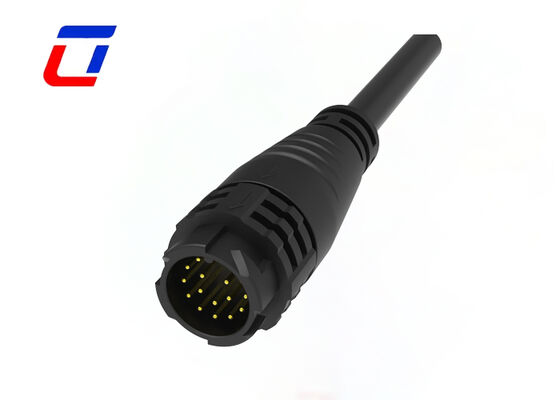

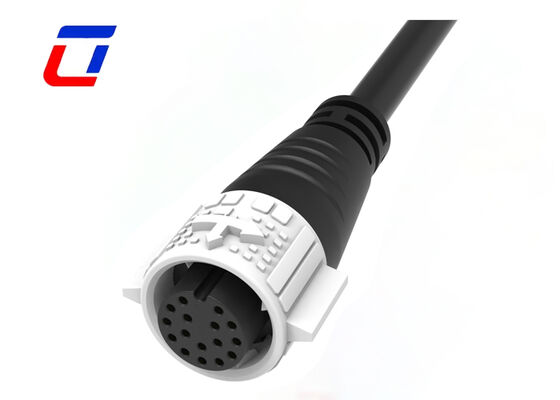

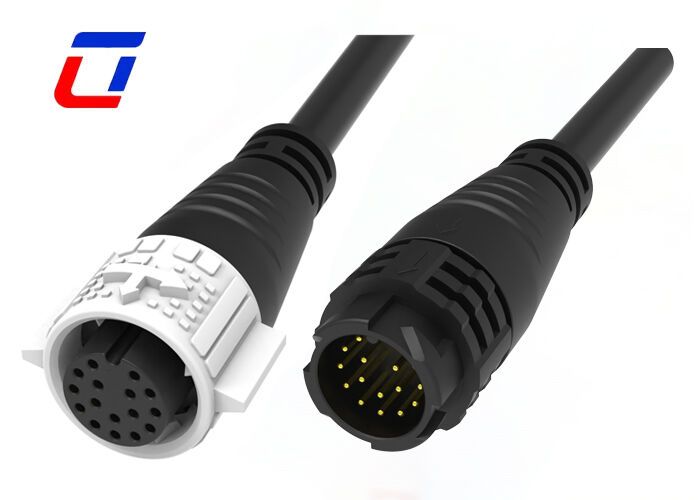

Name: M19 16 Pin Signal Male Female Connector Gold Plated IP67 Connectors Waterproof
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products IP67 Waterproof Connector

M19 16 Pin Signal Male Female Connector Gold Plated IP67 Connectors Waterproof

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Rated Voltage:	300V	Material:	Nylon
Operating Temperature:	-40℃-+105℃	Flame-resistant Rating:	UL94-V0
Sealing Material:	Waterproof O-Ring	Industry Fields:	Communication Equipment
Highlight:	M19 waterproof connector gold plated , 16 pin signal connector IP67 , male female waterproof connector

300V M19 Waterproof Connector 16 Pin Quick Lock Outdoor Data Connectors

M19 IP67 Circular Connectors 300V Male To Female Industrial Connector

Product Overview

Model: M19 standard circular connector, featuring a 16-pin precise layout, specifically designed to meet the needs of various signal transmission scenarios in electronic equipment.
Gold-plated pins: Adopt high-quality gold plating process on the pin surface, which can effectively reduce contact resistance, significantly enhance electrical conductivity and anti-oxidation performance, thus ensuring stable and uninterrupted signal transmission for a long time.
IP67 waterproof and dustproof: Equipped with a fully enclosed sealing structure and high-quality waterproof rubber ring, it can effectively resist the erosion of rain, dust and moisture in the environment, and is perfectly suitable for harsh outdoor and humid working environments.
Male-female pairing design: The male and female connectors adopt precise positioning structure, which can realize accurate alignment during installation. After connection, they are firmly locked, with excellent anti-vibration and anti-loosening performance, avoiding accidental disconnection caused by external factors.
Wide application: It is widely suitable for signal connection of various electronic equipment, including but not limited to industrial control equipment, outdoor lighting systems, automotive electronic accessories and other fields.

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Technical Specifications

Electrical Parameters

Number of Poles	16Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: How many materials you can provide?

A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.

Q: How can I get samples?

A: It's my honor to offer you samples, and the freight should be paid by yourself. You can let me know your courier number and your detail address, then I can send you sample at once.
