Name: M19 IP67 Waterproof 3+5 Pin Plug Socket Connector 20A Male Female Power Data Connector 8 Pin
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products IP67 Waterproof Connector

M19 IP67 Waterproof 3+5 Pin Plug Socket Connector 20A Male Female Power Data Connector 8 Pin

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Current Rating:	15A+5A	Rated Voltage:	300V
Connector Type:	Quick Connector	Material:	Nylon
Gender:	Male To Female Quick Lock	Color:	Blue,Red,Black,Yellow
Highlight:	IP67 waterproof 8 pin connector , 20A male female power connector , 3+5 pin waterproof socket

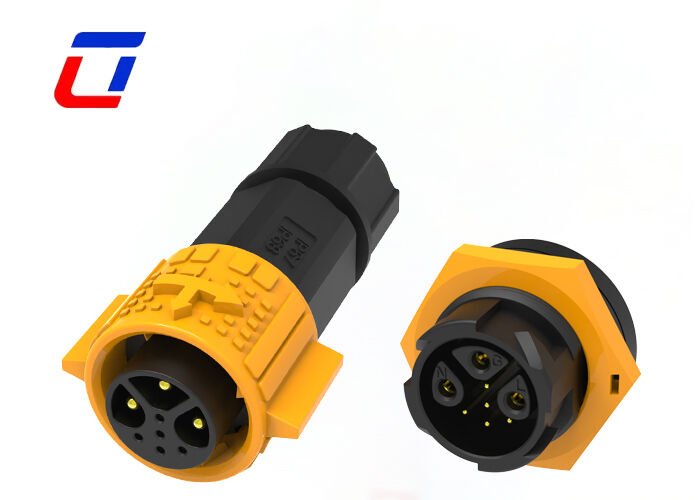

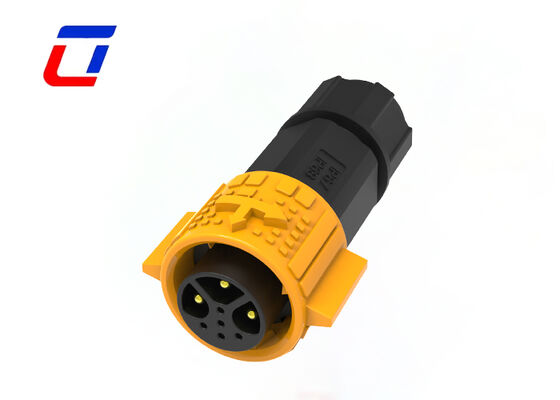

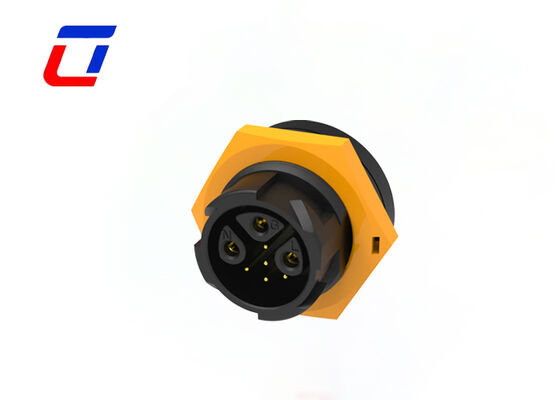

20A Waterproof Data Cable Connector 3 +5 Pin M19 IP67 Circular Connectors

Quick Description

Core Configuration: M19 circular self-locking design, 3+5 Pin (total 8 Pin) separate layout, 3 Pins for 15A power transmission and 5 Pins for data transmission. Male-female plug-in structure realizes synchronous power and data transmission, suitable for medium-power equipment, avoiding signal and power crosstalk.
Waterproof Protection: IP67 fully sealed design with double waterproof sealing rings. After self-locking fit, it is completely dustproof and can resist 1-meter water immersion for 30 minutes, effectively isolating water vapor and oil, suitable for harsh scenarios such as outdoor and wet industrial control.
Material & Reliability: Housing is made of weather-resistant engineering plastic, resistant to high and low temperatures (-40℃~105℃) and impact; gold-plated copper alloy pin cores have low contact resistance, strong oxidation resistance, smooth plugging and qualified mechanical life.
Electrical Performance: Rated current 20A, rated voltage 300V, insulation resistance ≥500MΩ, qualified withstand voltage, anti-electromagnetic interference, efficient power transmission and low data transmission attenuation, suitable for synchronous power and data transmission of various medium-power equipment.
Ease of Use: Self-locking design, tool-free manual plugging and unplugging, anti-loosening structure suitable for vibration conditions; compact structure, easy installation, balancing assembly efficiency and later maintenance convenience.

Electrical Parameters
Number of Poles	3+5Pin
Current Rating	15A +5Amax.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Design Sketch
