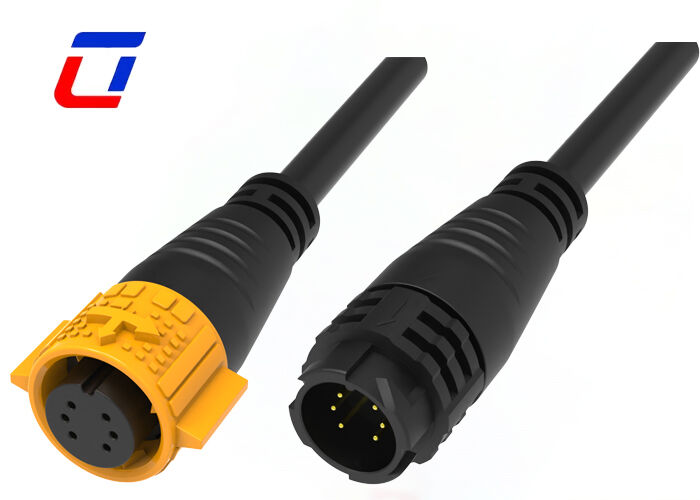

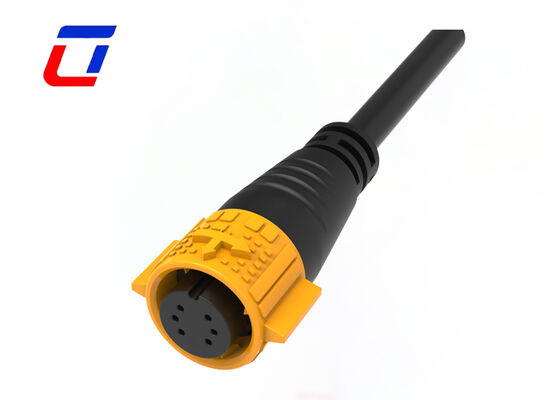

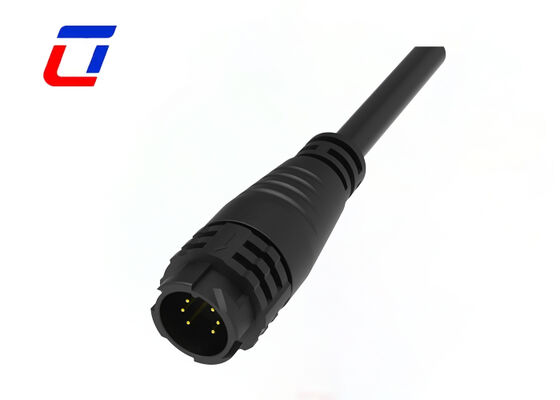

Name: M19 Male To Female Cable Connectors OEM 6 Pin Waterproof 300V Connector For Data
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products IP67 Waterproof Connector

M19 Male To Female Cable Connectors OEM 6 Pin Waterproof 300V Connector For Data

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/UL/TUV
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	6Pin	Current:	10A
Rated Voltage:	300V	Waterproof Rating:	IP67
Color:	Red Blue White Black Yellow	Contact Material:	Brass Gold-Plated
Highlight:	M19 waterproof cable connector , 6 pin male to female connector , IP67 waterproof data connector

300V 6 Pin IP67 Connector M19 Dustproof Waterproof Wire Splice Connector

Description of Industrial Waterproof Circular Connector

Product Configuration & Core Specifications: Adopts standard M19 circular threaded locking structure, exclusive 6-pin core arrangement, designed as male-to-female integrated cable docking configuration, different from panel-mount types, focusing on direct cable data transmission. Rated operating voltage 300V, suitable for low-voltage data transmission circuits, with equidistant precise pin layout to eliminate signal crosstalk, ensuring stable transmission of various low/medium-speed data signals without interference from power-signal mixing.
Waterproof Sealing Performance: Equipped with double sealing ring structure for male-female docking, with overall IP67 protection level. After locked docking, it can completely block dust, liquid water, oil and moist water vapor intrusion, suitable for long-term use in outdoor open-air, wet industrial control environments, outdoor sensor equipment and other scenarios. No leakage or signal interruption after immersion in 1-meter deep water for 30 minutes, and sealing life matches the whole machine service cycle.
OEM Customization Adaptability: Supports full-process OEM customization services, including cable length, core specification, terminal crimping process, housing color and logo printing customization as required, adapting to different equipment interface layout and wiring needs. Compatible with customer-exclusive molds and pin position definitions, supports multiple data transmission protocols, quickly adapts to mass production needs of terminal equipment, and reduces adaptation and transformation costs.
Material & Contact Reliability: Housing is made of high-strength weather-resistant engineering plastic, UV-resistant, anti-aging, wide temperature resistant (-40℃ to 105℃), no cracking or deformation after long-term outdoor use. Pin cores adopt high-conductivity copper alloy with gold-plated surface, featuring low contact resistance and strong oxidation resistance, smooth plugging without jamming, qualified mechanical insertion life, no poor contact or signal attenuation during long-term use.
Electrical & Signal Performance: Optimized specifically for data transmission with excellent insulation performance (insulation resistance ≥500MΩ) and qualified withstand voltage test, effectively suppressing external electromagnetic interference to ensure pure data signal transmission. Suitable for transmission of various sensor signals, control signals and low-speed communication data, with low signal attenuation and stable transmission, ideal for industrial control, outdoor monitoring, smart equipment and other data transmission scenarios.
Installation & Application Features: Male-female plug-in with threaded locking design, tool-free manual docking and disassembly, anti-loosening structure suitable for vibration working conditions. Pre-wired finished products leave the factory, plug-and-play on site, greatly shortening equipment assembly and on-site wiring period, suitable for mass production equipment, outdoor equipment quick wiring and after-sales replacement scenarios.

Main Feature

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for power
3+2,3+3,3+4,3+5,2+20Pin is Power and signal combination
9Pin,10Pin,12Pin,14Pin,16Pin,18Pin for signal
Field assembly version:both wire to wire and wire to board options
High current rated waterproof connector good choice up to 10A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters
Number of Poles	6Pin waterproof connector
Current Rating	10A max
Voltage Rating	300VAC max
Durability Voltage	1000VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Production Dimension

M19 Male To Female Cable Connectors OEM 6 Pin Waterproof 300V Connector For Data 0

More Technical Details

M19 Male To Female Cable Connectors OEM 6 Pin Waterproof 300V Connector For Data 1

FAQ

Q1:What is rated voltage?

A1:Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.

Q2:How to track my shipment?

A2: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real - time status online or contact our team for updates.

Q3:Who is responsible for customs clearance? Do you provide necessary documents?

A3: We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.
