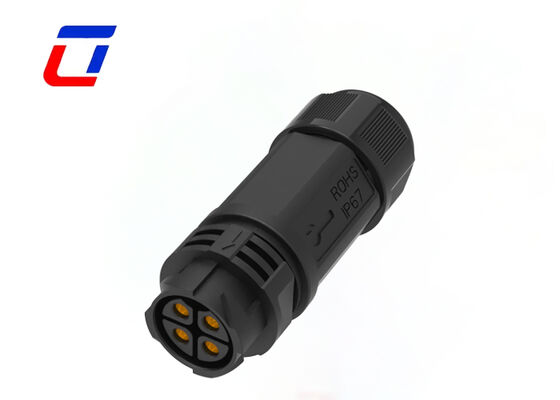

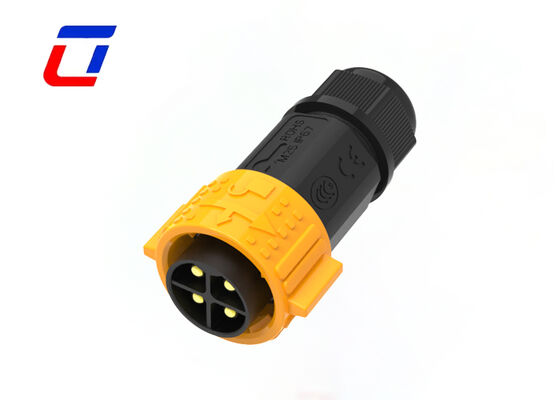

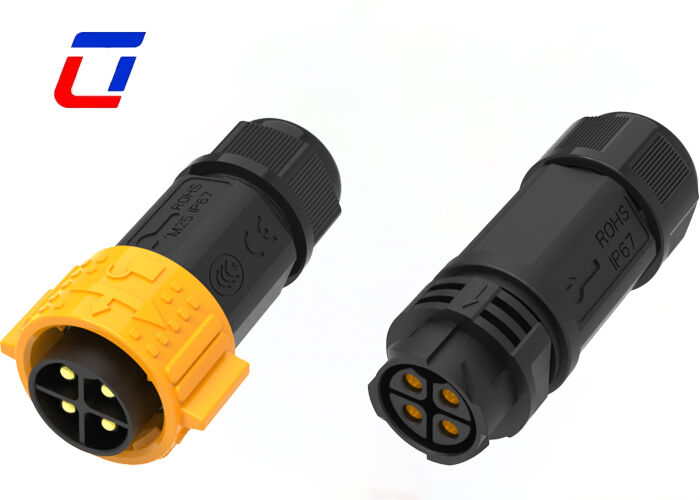

M25 4 Pin Waterproof Outdoor Wire Connectors 50A Power Connector Manufacturers

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	4Pin	Current:	50A
Material:	Nylon	Protection Level:	IP67
Flame-resistant Rating:	UL94-V0	Sealing Material:	Waterproof O-Ring
Color:	Blue,Black,Red

M25 4 Pin Waterproof Outdoor Wire Connectors 50A Power Connector

Product Overview

50A Waterproof Connectors M25 4 Pin Wire To Wire Power Connector with IP67 waterproof rating and 500V capacity. Designed for reliable high-power transmission in demanding outdoor environments.

Key Features

High-Power Performance

M25 round design with 4-pin layout, rated for 50A continuous operation. Foolproof pin design prevents reverse connection and equipment damage.

IP67 Waterproof & Dustproof

Built for harsh outdoor environments with integrated sealing structure and weather-resistant silicone sealing ring. Protects against rain, sand, fog, and temperature variations.

Weather-Resistant Construction

UV-resistant, anti-aging engineering plastic shell withstands -40°C to +105°C temperatures. Anti-oxidation pins ensure 10+ year service life.

Quick Installation

Push-lock quick release system requires no tools. Self-locking buckle design balances convenience with stability for efficient outdoor operations.

Main Features

Push lock quick release system
Multicore options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin, 5+2Pin and 2+20Pin available
Field assembly version: both wire to wire and wire to board options
High current rated waterproof connector suitable for up to 50A continuous operation
Cable assembly service supported with custom options available
OEM/ODM services welcome

Technical Specifications

Electrical Parameters

Number of Poles	4Pin waterproof connector
Current Rating	50A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC max
Current Rating	50A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max Cable Cross Section Area	0.5mm² ~ 6.0mm²

Application Industries

Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Technical Diagrams

Frequently Asked Questions

What is rated voltage?

Rated voltage, also known as operating voltage, depends on the connector insulation material and spacing between contact sizes. Some components may not function properly below their rated voltage.

What payment methods do you accept?

We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.

What shipping methods do you offer? How long is the delivery time?

We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.
