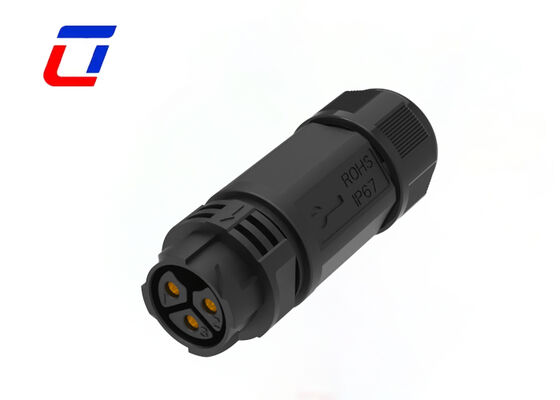

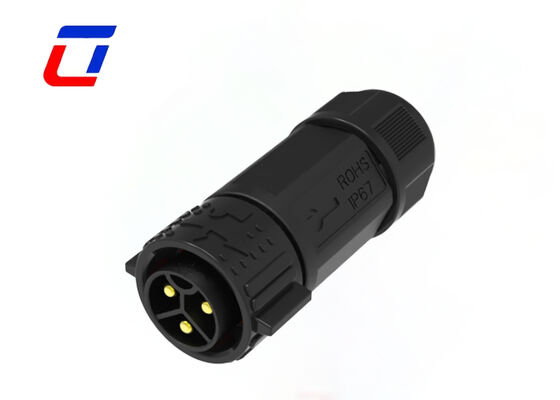

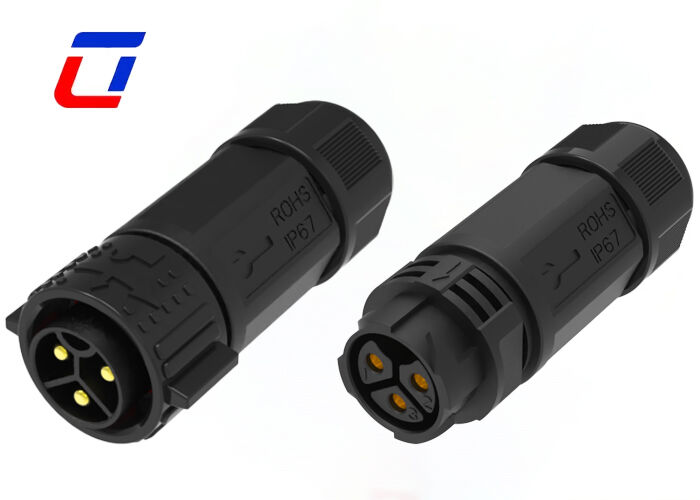

Name: M25 3 Pin 50A Male To Female Connector IP67 Waterproof Electrical Connectors 600V
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Home Products IP67 Waterproof Connector

M25 3 Pin 50A Male To Female Connector IP67 Waterproof Electrical Connectors 600V

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE,TUV,UL,RoHS
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C,Western Union
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Current:	50A Max. For Power	Number Of Pins:	3 Pin For Power
Operating Voltage:	600V	Waterproof Rating:	IP67
Operating Temperature:	-40℃-+105℃	Flame-resistant Rating:	UL94-V0
Industry Fields:	Industrial Automation

M25 3 Pin 50A Male To Female Connector IP67 Waterproof Electrical Connectors 600V

Outdoor M25 3 Pin Male Female Socket High Current Industrial Circular Connector

Product Features

Standard Parameter Configuration: M25 size design, 3-pin pure copper core structure, rated 50A large current and 600V high voltage, specially built for high-power power transmission. Suitable for three-wire power supply lines with stable conductivity and no voltage drop.
IP67 Sealed Waterproof: High-standard waterproof and dustproof sealing process, fully isolating dust, rain water, water mist, oil pollution and short-term shallow water immersion.
Male To Female Integrated Design: Direct plug design with precise docking, suitable for quick connection between cable to cable and equipment to cable.
Full Self-Locking Anti-Drop Structure: Self-locking buckle design without threads, resistant to strong vibration and external pulling, suitable for high-frequency vibration scenarios.
High-Quality Durable Material: Shell made of thickened high-temperature resistant insulating engineering plastic; internal conductive terminal made of high-purity tinned copper.
Wide Temperature Application: Compatible with working temperature range from -40℃ to 105℃, stable operation in harsh industrial environments.
Universal & Easy Installation: No welding required, quick crimping wiring, suitable for conventional high-power cable specifications.

Application Industries

Communications Applications Product Coding Machines Inventory Product Coding Systems Inkjet Systems Solar Systems Industrial Inkjet Equipment Electric Power Equipment Laboratory Forensic & Pathology Equipment Communications Equipment Heavy Machinery

Technical Parameters

Parameter	Specification
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Parameter	Specification
Voltage Rating	600VAC max
Current Rating	50A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max Cable Cross Section Area	0.5mm² ~ 6.0mm²

Product Images

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.

Q: Do you support product customization?

A: Yes, customization is available for specifications, colors, and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.

Q: Is there a discount for large-quantity orders?

A: Yes, we offer tiered discounts for bulk orders. The more you order, the more competitive the price. Please inform us of your expected quantity for a customized quotation.
