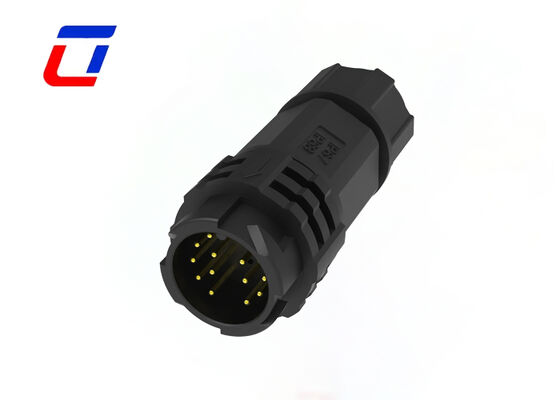

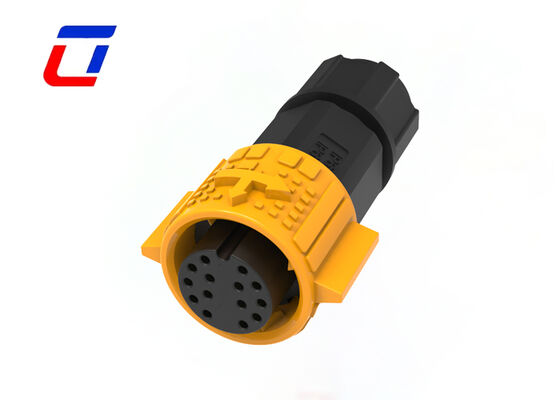

Name: Low Current M19 Circular Waterproof Connector OEM Push Lock 14 Pin Data Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products IP67 Waterproof Connector

Low Current M19 Circular Waterproof Connector OEM Push Lock 14 Pin Data Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	14Pin	Current Rating:	5A For Data
Material:	Nylon	Protection Level:	IP67
Flame-resistant Rating:	UL94-V0	Sealing Material:	Waterproof O-Ring

Low Current M19 Circular Waterproof Connector OEM Push Lock 14 Pin Data Connector

Product Overview

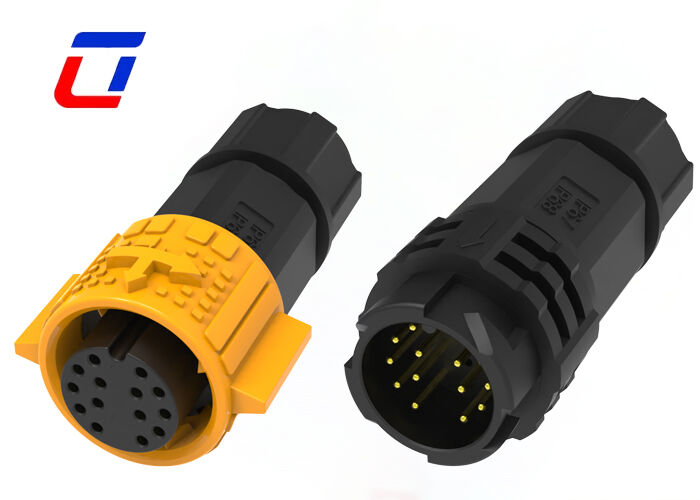

14 Pin Male Female Connector M19 300V Cable Connectors Waterproof

Quick Description

Core Specifications & OEM Service: Low current M19 circular waterproof connector with 14-pin design for data transmission, featuring push-lock connection and comprehensive OEM customization services including pin definition, contact spacing, shell size, and interface type modifications.
Circular Waterproof & Dustproof Performance: IP67 rated protection effectively isolates dust, moisture, and small particles, ensuring stable data transmission in humid, dusty, or outdoor environments.
Low Current Adaptability & Data Stability: Optimized for low-current data transmission with excellent signal anti-interference performance and reduced signal loss.
High-Quality Material & Structural Stability: Lightweight, high-strength engineering plastic shell with high-precision copper alloy pins for long-term reliable performance.
Push-Lock Design & Easy Operation: Quick connection system with push-lock mechanism for fast, secure installation and easy disassembly with anti-loosening performance.

Main Features

Push lock quick release system
Multicore options: 2Pin, 3Pin, 4Pin, 5Pin for Power
Power signal combinations: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
Signal options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
Field assembly version with wire-to-wire and wire-to-board options
Current rated 5A for continuous operation
Cable assembly service supported
OEM/ODM customization welcome

Technical Specifications

Electrical Parameters

Number of Poles	14Pin
Current Rating	5A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Design Sketch

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: How do I place an order? What is the process?

A: The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.

Q: Can I pay after receiving the goods?

A: For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.

Q: Is there a discount for large-quantity orders?

A: Yes, we offer tiered discounts for bulk orders. The more you order, the more competitive the price. Please inform us of your expected quantity for a customized quotation.
