Detailed Product Description

Current Rating:	20A	Material:	PA66 And Brass Tin Plated
Rated Voltage:	300V	Flame-resistant Rating:	UL94-V0
Temperature:	-40~105℃	Specific Application Scenarios:	Solar PV Plants

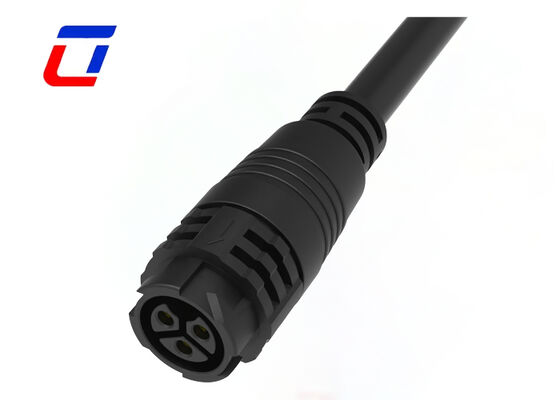

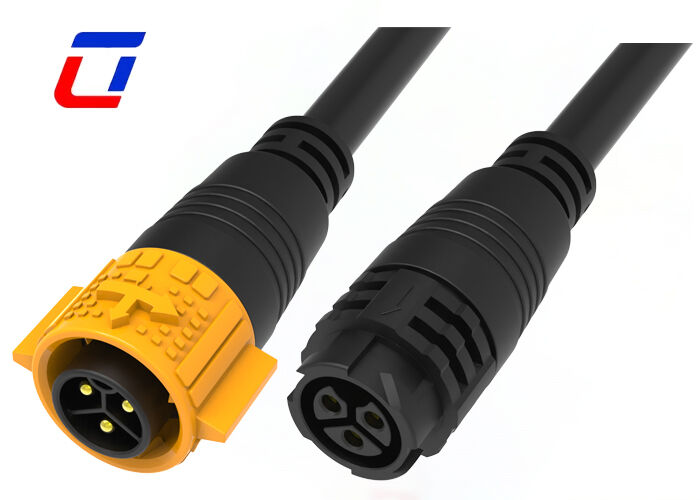

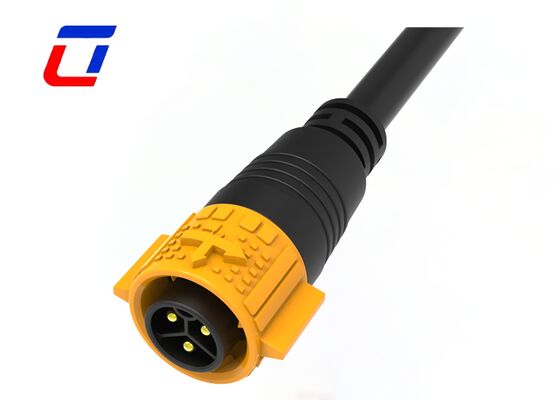

20A M19 3 Pin Waterproof Connector Self Locking High Current Power Connector

20A 3 Pin Power Cable Connector M19 DC Waterproof Quick Connector

Product Overview

M19 3 Pin 300V Waterproof Cable Connector Quick Lock For Power

Main Features

Item Name: M19 Waterproof Cable Connector
Specifications: Straight male-female mating, elbow male-female mating, front-mounted wire-to-board, rear-mounted wire-to-board, integrated injection molding
Coupling way: Self-locking
Pins number: 2-22 pins
Plug: Assembly type and Injection type available
Socket: Front Mount, Back Mount, PCB Mount
Waterproof grade: IP67/IP68
Connector type: Assembly lock screw; Assembly welding; Injection molding with cable
Wire gauge: 1.0-6.0mm² (18AWG-10AWG)
Wiring range Assembled: 6.0mm~16mm; Molding 6.0mm~16.5mm
Durability: 3000 times
Applicable temperature: -40℃~105℃

Quick Description

Core Specifications: Rated current 20A, M19 standard size, 3-pin configuration, designed for stable high-current power transmission.
Key Functions: Equipped with a reliable self-locking mechanism to prevent accidental disconnection; IP67 waterproof performance, suitable for harsh, outdoor and humid environments.
Core Advantages: Integrates reliability, waterproof protection and easy operation, serving as a cost-effective power connection solution for industrial and outdoor equipment.

Technical Specifications

Electrical Parameters

Number of Poles	3 pin
Current Rating	20A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²
