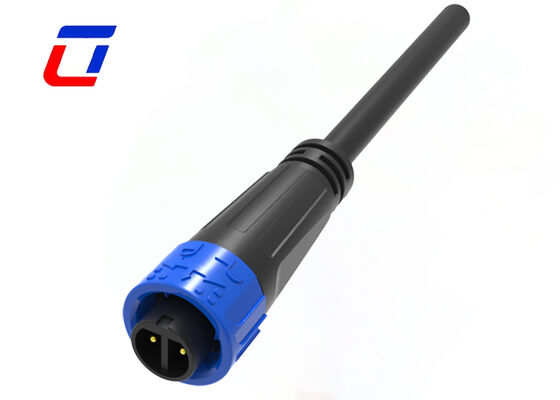

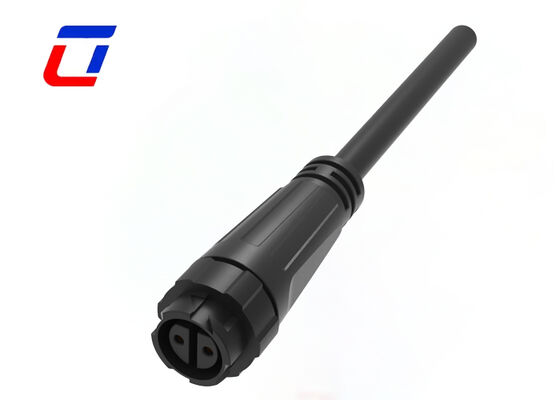

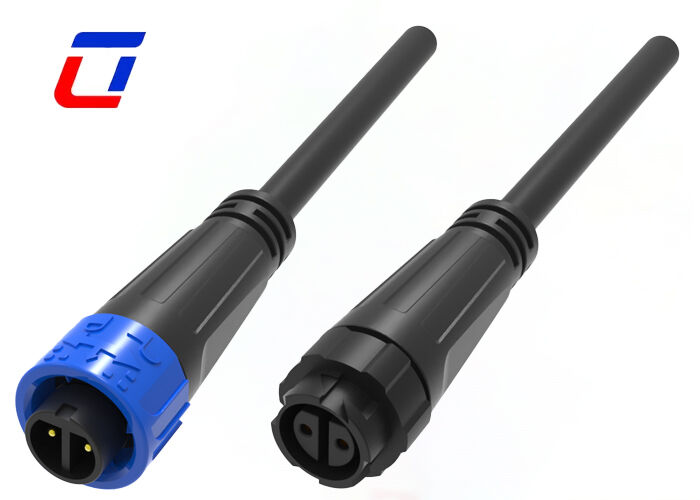

M16 10A IP67 2 Pin Waterproof Connector Electrical Outdoor Male Female Connector

M16 10A IP67 2 Pin Waterproof Connector Electrical Outdoor Male Female Connector

  • M16 10A IP67 2 Pin Waterproof Connector Electrical Outdoor Male Female Connector
  • M16 10A IP67 2 Pin Waterproof Connector Electrical Outdoor Male Female Connector
  • M16 10A IP67 2 Pin Waterproof Connector Electrical Outdoor Male Female Connector
M16 10A IP67 2 Pin Waterproof Connector Electrical Outdoor Male Female Connector
Product Details:
Place of Origin: China
Brand Name: Ulinkcon
Certification: CE/Rohs/UL/TUV
Model Number: M16
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: High Quality export carton
Delivery Time: 3~6 working days
Payment Terms: T/T,D/A,D/P,MoneyGram,L/C
Supply Ability: 100000 pairs each month
Contact Now
Detailed Product Description
Number Of Pins: 2Pin Current: 10A Max. For Power
Rated Voltage: 300V Waterproof Rating: IP67
Flame-resistant Rating: UL94-V0 Color: Blue/Green/Yellow/Red

M16 10A IP67 2 Pin Waterproof Connector Electrical Outdoor Male Female Connector
2 Pin Power Connector M16 300V Waterproof Male Female Wire Connector

M16 10A IP67 2 Pin Waterproof Connector, with a male-female plug-in structure, is specially designed for outdoor power transmission scenarios. With IP67 waterproof protection and 10A rated current as its core advantages, it is a key connection accessory for stable power supply of outdoor electrical equipment.

The 2-pin exclusive layout is precisely adapted to outdoor low-voltage power transmission needs. The terminals have tight contact and excellent conductivity, which can stably carry 10A current with low transmission loss, effectively ensuring continuous and stable power supply for outdoor equipment and avoiding equipment failures caused by unstable current.

It reaches IP67 waterproof and dustproof level, adopting a professional sealed structure design, which can resist the invasion of harsh outdoor environments such as heavy rain, sand, humidity and low temperature, and can work normally even after being immersed in 1m water for 30 minutes, suitable for various outdoor electrical scenarios.

Main Features
  • Push lock quick easy release system
  • Multi-core can be chosen: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
  • Field-installable variants: both wire-to-wire and wire-to-board configurations
  • High-current-rated waterproof connector: an ideal solution for prolonged operation up to 10A
  • Cable assembly services provided - customization is welcome
  • OEM/ODM partnerships are warmly accepted
Electrical Parameters
Number of Poles 2Pin waterproof connector
Current Rating 10A max
Voltage Rating 300VAC max
Durability Voltage 1500VAC @ 60 s
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Application Industries
  • Communications Application
  • Product coding machines
  • Inventory product coding
  • Inkjet systems
  • Solar System
  • Industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic & pathology equipment
  • Communications equipment
  • Heavy machinery
Production Dimension
M16 10A IP67 2 Pin Waterproof Connector Electrical Outdoor Male Female Connector 0
More Technical Details
M16 10A IP67 2 Pin Waterproof Connector Electrical Outdoor Male Female Connector 1 M16 10A IP67 2 Pin Waterproof Connector Electrical Outdoor Male Female Connector 2
Frequently Asked Questions
How can I get samples?
It's our honor to offer you samples, and the freight should be paid by yourself. You can let us know your courier number and your detail address, then we can send you sample at once.
Are your products certified? What certifications do you have?
All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
How many materials you can provide?
There are different materials for connectors and cables. We usually use PVC/Nylon material to produce connectors, while PVC/Rubber/Silicone materials are used in cables. Of course, we can also choose materials according to your requirements.
