Name: 3 Phase Waterproof Panel Mount Connector M16 OEM Electrical Connectors 300V
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products IP67 Waterproof Connector

3 Phase Waterproof Panel Mount Connector M16 OEM Electrical Connectors 300V

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3Pin	Current:	10A Max
Rated Voltage:	300V	Waterproof Rating:	IP67
Color:	Red Blue White Black Yellow	Sealing Material:	Waterproof O-Ring
Flame-resistant Rating:	UL94-V0	Contact Material:	Brass Gold-Plated
Highlight:	3 phase waterproof electrical connector , M16 panel mount connector 300V , IP67 waterproof OEM connector

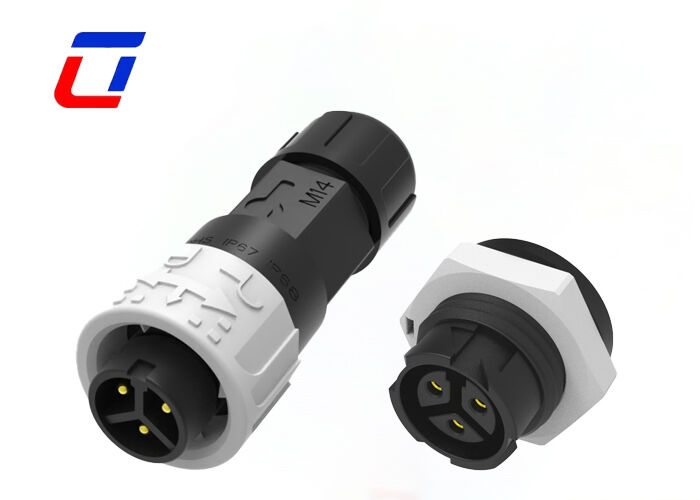

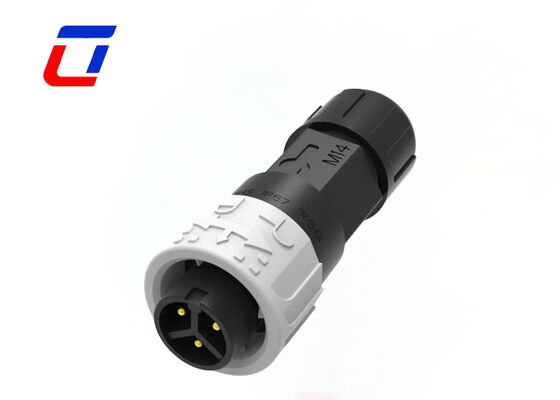

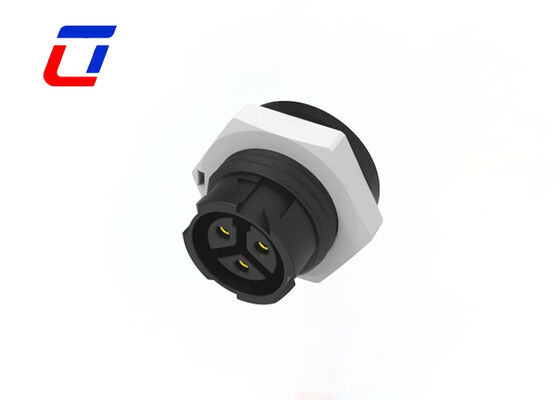

3 Phase Waterproof Panel Mount Connector M16 OEM Electrical Connectors 300V

3Pin Waterproof Cable To Board M16 Push Locking Power Connector

Product Overview

300V Rated Voltage, Stable Transmission: Suitable for 3-phase low-voltage power transmission. Excellent insulation, low contact resistance, safe and long-lasting operation.

OEM Customization Available: Support customization of pin count, cable, length, logo and more to meet different equipment and brand requirements.

Self-Locking Structure, Stable Connection: Thread-free self-locking design for easy plugging, shockproof and anti-loose to ensure stable power supply.

High-Grade Materials, Long Service Life: Heat-resistant and anti-aging insulation shell with gold-plated contacts. Good conductivity, wear and corrosion resistance.

Easy Installation, Higher Efficiency: Panel-mount pre-installed structure with simple wiring. Fast assembly for equipment, reducing installation and maintenance cost.

Key Features

Push lock quick release system for easy operation
Multiple pin configurations available: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
Field assembly versions: wire to wire and wire to board options
High current rating up to 10A for long-term operation
Cable assembly service supported with customization options
OEM/ODM services available

Technical Specifications

Electrical Parameters

Number of Poles	3Pin waterproof connector
Current Rating	10A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Production Dimension

Technical Details

Frequently Asked Questions

Can I have custom label?

Yes,of course,you can make you own private label and package,if you need to design the packaging ,we also have professionaldesigner to serve you.

Can I pay after receiving the goods?

For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.
