Name: M19 Round Connector Types 3+4 Pin Waterproof Plastic PA66 Power Data Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Multi Pin Connectors Waterproof

M19 Round Connector Types 3+4 Pin Waterproof Plastic PA66 Power Data Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	3+4Pin	Rated Voltage:	300V
Current Rating:	15+5A	Connector Type:	Quick Connector
Material:	Nylon	Protection Level:	IP67
Highlight:	M19 waterproof power connector , 3+4 pin PA66 connector , waterproof data connector plastic

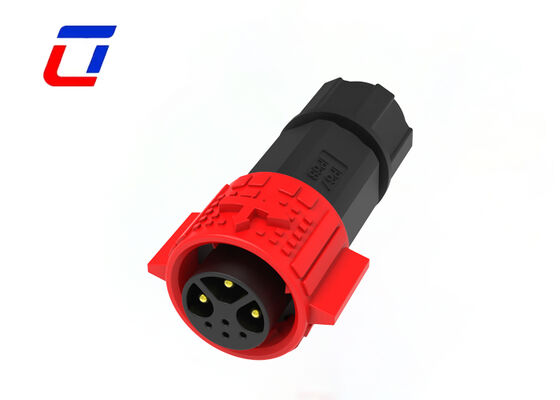

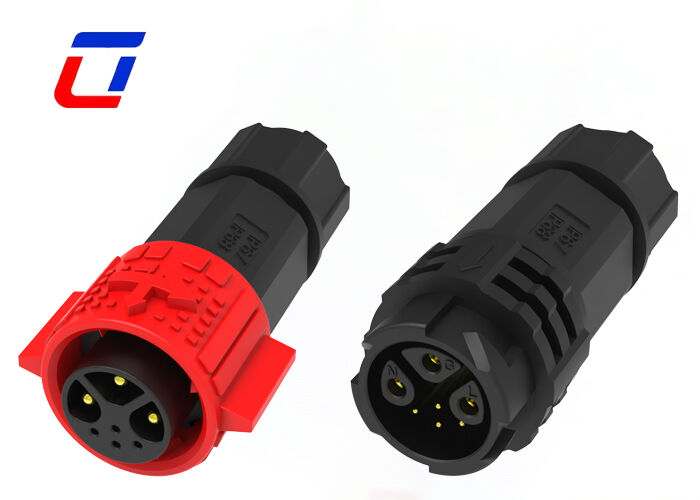

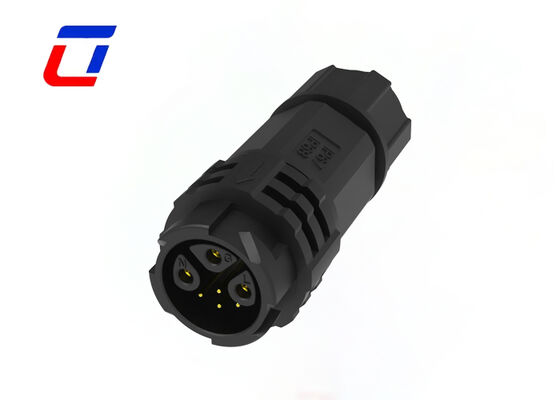

M19 Male Female Connector 300V Outdoor 3+4 Pin Power And Signal Connector

Product Overview

Outdoor Waterproof Connector M19 3+4 Pin IP67 Waterproof Connector Wire To Board

Quick Description

1.3+4 Pin Hybrid Channel Design

3 pins for stable power transmission and 4 pins for high-quality data transmission, realizing integrated synchronous transmission to meet dual needs of power supply and signal communication.

2. High-Quality PA66 Plastic Housing

Made of high-strength corrosion-resistant PA66 engineering plastic, with excellent insulation, heat resistance and anti-aging, extending service life in complex environments.

3. IP67 Waterproof & Dustproof Performance

IP67 protection with integrated sealing and waterproof rubber ring, resisting rain, dust and moisture for stable operation outdoors and in harsh conditions.

4. M19 Round Structure Advantage

M19 round interface, compact and compatible, with easy alignment and quick docking for various industrial installation scenarios.

5. Power & Data Dual-Function

Integrates power and data transmission, no separate connectors needed, simplifying wiring and improving installation efficiency.

6. Stable Contact Performance

High-conductivity pin cores with precise positioning, stable contact, low loss and strong anti-interference, ensuring smooth power and clear data transmission.

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported
OEM/ODM welcome

Technical Specifications

Electrical Parameters
Number of Poles	3+4Pin
Current Rating	20A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.
Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Operation Parameters

Voltage Rating	600VAC max
Current Rating	20A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: Who is responsible for customs clearance? Do you provide necessary documents?

A: We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.

Q: Do you accept other payment currencies besides USD?

A: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.
