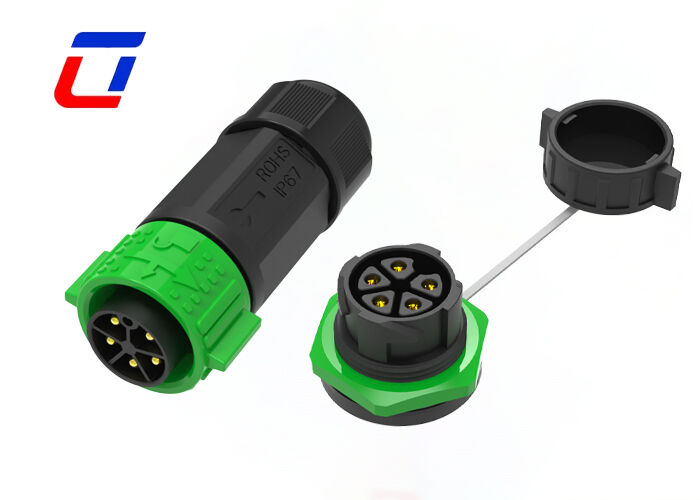

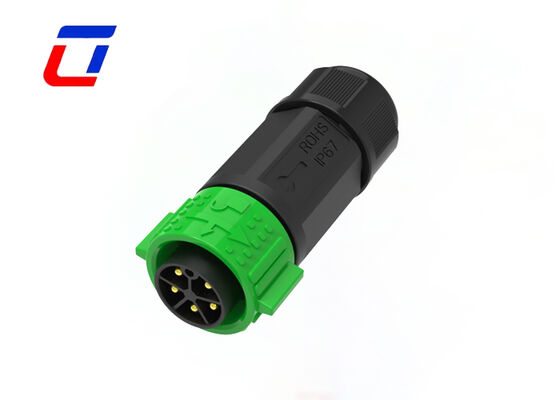

5 Pin Industrial Waterproof Power 300V M25 Cable Push Lock Male To Female Connector
Main Features
- Push lock quick release system
- Multic-core options: 2Pin,3Pin,4Pin,5Pin,3+2Pin,3+3Pin,3+9Pin,3+13Pin,5+2Pin and 2+20Pin available
- Field assembly version:both wire to wire and wire to board options
- High current rated waterproof connector good choice up to 50A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
Quick Details of 2Pin waterproof Panel Connector
50A High Current Carrying Capacity
Designed for high-power transmission with a rated current up to 50A, providing stable and efficient power delivery for industrial equipment, power modules, and high-load electrical devices.
5-Pin Precise Electrical Configuration
Standard 5-pin layout with optimized terminal spacing and contact structure, ensuring low contact resistance, stable voltage output, and reliable signal or power transmission.
IP67 Waterproof & Dustproof Rating
Fully sealed circular structure effectively blocks dust, moisture, rain, and oil contamination. Suitable for long-term outdoor, humid, and harsh industrial environments.
Lightweight High-Strength Plastic Housing
Made of engineering-grade plastic material with high mechanical strength, heat resistance, corrosion resistance, and flame-retardant properties, while keeping the connector lightweight and easy to install.
Male & Female Plug‑Socket Matching System
Complete male and female connector set with precise alignment and tight fit, reducing poor contact, loosening, or wear during long‑term use.
M25 Standard Circular Interface
Adopts universal M25 circular size and mounting specifications, with high compatibility for panel mounting, cable assembly, and equipment replacement.
Shockproof & Anti‑Loosening Structure
Stable connection design enhances anti‑vibration and anti‑shaking performance, maintaining secure connection even under mechanical vibration and outdoor movement.
| Electrical Parameters |
| Number of Poles |
5Pin waterproof connector |
| Current Rating |
50A max |
| Voltage Rating |
600VAC max |
| Durability Voltage |
1500VAC @ 60 s. |
Application industries
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
| Technical Parameters |
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
| Operation Parameters |
| Voltage Rating |
600VAC max |
| Current Rating |
50A max |
| Min Wire Size OD |
6.5mm ~ 10mm |
| Max Wire Size OD |
10.5mm ~ 18mm |
| Max.Cable Cross Section Area |
0.5mm2 ~ 6.0mm2 |
Production Dimension
More Technical Details
FAQ
