Name: M25 IP67 Round Waterproof Connector 3+3 Pin Data And Power Quick Lock Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Home Products Multi Pin Connectors Waterproof

M25 IP67 Round Waterproof Connector 3+3 Pin Data And Power Quick Lock Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3+3PIN	Waterproof Rating:	IP67
Current:	15A	Temperature Range:	-40℃~+105℃
Material:	Nylon	Type:	Wire To Wire Connector
Mechanical Functions:	Quick Connect/Disconnect
Highlight:	M25 waterproof connector 3+3 pin , IP67 round quick lock connector , waterproof power and data connector

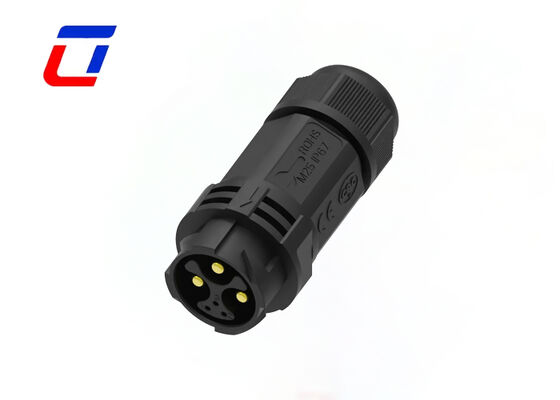

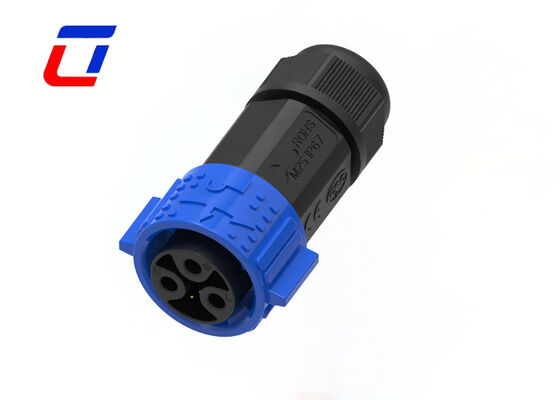

M25 3+3 Pin Reliable PA66 Waterproof Connectors IP67 Circular Connector

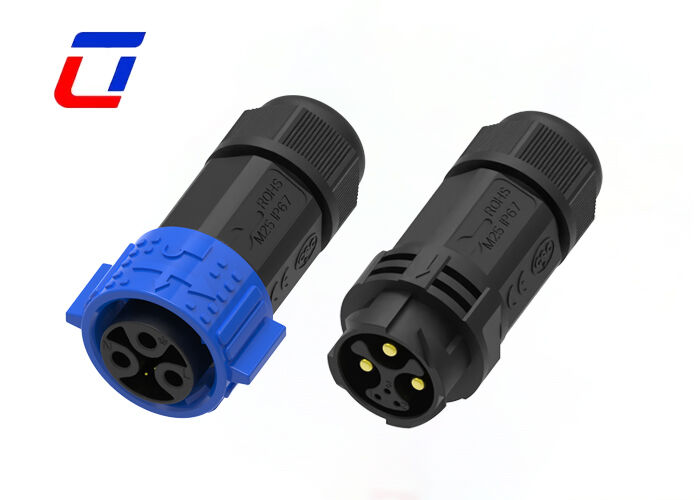

Waterproof Connector M25 3+3 Pin IP67 15A Male Female Quick Lock connectors

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin and 2+20Pin
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Product Overview

IP67 Waterproof & Dustproof Protection: Adopts round structure design with IP67 high-level protection, which can completely prevent dust intrusion and resist short-term immersion in 1m deep water for 30 minutes. It effectively isolates moisture, dirt and other impurities in outdoor or harsh environments, ensuring the safety and stability of internal components and signal/power transmission.
3+3 Pin Dual-Function Configuration: Featured with 3+3 pin design (3 data pins + 3 power pins), realizing independent separation of data transmission and power supply. It can synchronously complete stable data transmission and reliable power supply, meeting the dual needs of equipment for signal interaction and energy supply, and improving the integration of connection.
Quick Lock Connection Design: Equipped with one-click quick lock structure, which can realize fast connection and disassembly between the connector and the matching part without additional tools. The locking is firm and not easy to loosen, effectively improving the efficiency of on-site installation, maintenance and replacement, and reducing labor costs.
Dual Transmission of Data & Power: Specialized in synchronous transmission of data and power, with low contact resistance and strong anti-interference ability. The data transmission is smooth without packet loss, and the power supply is stable without voltage fluctuation, which is suitable for equipment that needs simultaneous data interaction and power supply.

Technical Specifications

Connector System	Wire to Wire
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Number of Positions	3+3
Number of Signal Positions	3
Contacts Preloaded	Yes
Operating Voltage (VAC)	600V max.
Operating Voltage (VDC)	600V max.
Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Entry Style	Side
Environmental Protection Type	Elastomer Sealed, Hermetically Sealed
O-Ring Material	Elastomer Sealed, Hermetically Sealed
Environmental Protection	Yes
Contact Current Rating (Max) (A)	15A max.
Circular Connector Contact Type	Pin-Socket
Connector Mounting Type	Cable Mount (Free-Hanging)
Mating Alignment Type	Keyed
Mating Retention	With
Wire Size (AWG)	20AWG, 18AWG, 16AWG, 14AWG
Operating Temperature Range (°C)	-40 ~105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
UL Flammability Rating	UL 94V-0
