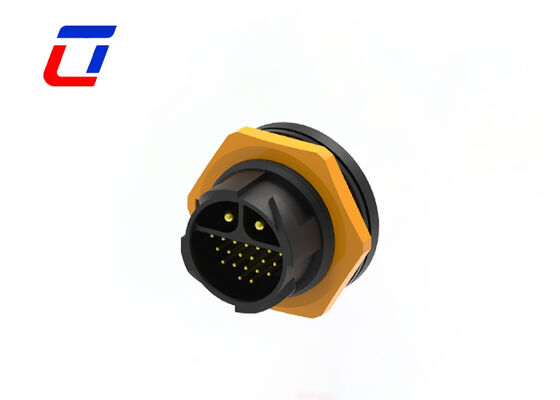

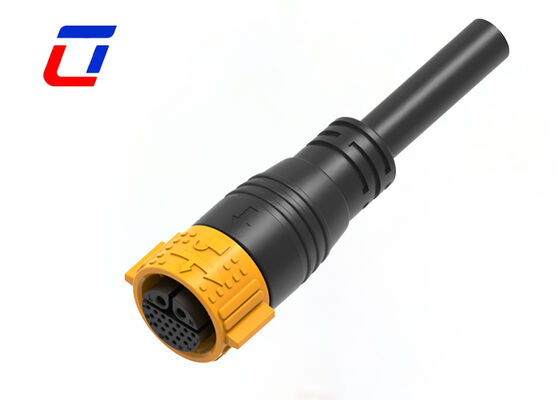

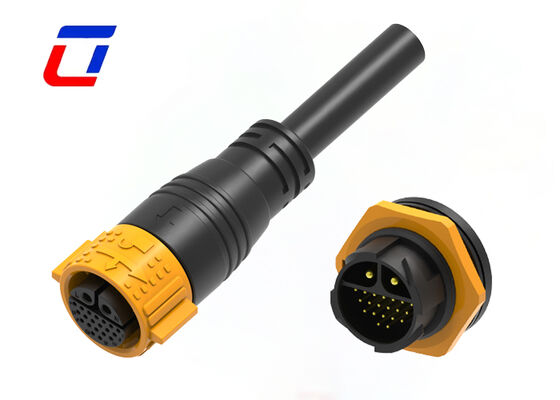

M25 2+20 Pole Cable Connector Quick Release IP67 Solar Wire To Board Connectors

M25 Power Signal Connector 2+20 Pin IP67 20A+5A Wire To Board Connector

Product Overview

Signal And Power Multi Connectors M25 2+20 Pin Waterproof 300 Volt Wire To Board

Key Features

Dual-Circuit 2+20 Pin Layout: Dual-independent circuit design with 2+20 pin split layout, separating power and data signal transmission channels. The 2 dedicated pins are optimized for high-power transmission, while the 20 pins support multi-channel data signal transmission with strong anti-interference performance.
M25 Standard Interface with Tool-Free Quick Lock: Compliant with M25 standard interface for strong compatibility. Tool-free push-lock mechanism allows one-second installation with automatic vibration-proof connection to prevent accidental disconnection.
Combined Power & Signal Design: Integrates power and signal transmission into one connector, saving installation space and simplifying equipment wiring while reducing component quantity and installation costs.
Custom Cable Assembly Solutions: Ulinkcon provides personalized custom cable assembly solutions with customization of cable length, material, and pin definition according to specific application scenarios and equipment parameters.
Reliable Performance in Harsh Environments: Optimized for outdoor and industrial harsh environments with excellent waterproof and dustproof performance. High-grade shell material is anti-aging and corrosion-resistant for long-term stable operation.

Application Industries

Communications Equipment
Product Coding Machines & Inkjet Systems
Solar Systems
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery
Industrial Inkjet Equipment

Technical Specifications

Electrical Parameters

Number of Poles	22pin wire to board connector
Current Rating	20A +5A
Voltage Rating	300VAC max
Durability Voltage	2500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC max
Current Rating	40A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max Cable Cross Section Area	0.5mm² ~ 6.0mm²

Product Configuration

Product Dimension

Technical Details

Frequently Asked Questions

What is rated voltage?

Rated voltage, also known as operating voltage, depends on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly below their rated voltage.

Is there a discount for large-quantity orders?

Yes, we offer tiered discounts for bulk orders. The more you order, the more competitive the price. Please inform us of your expected quantity for a customized quotation.

How to track my shipment?

Once goods are shipped, we provide tracking numbers and logistics platform links. You can track real-time status online or contact our team for updates.
