M25 3+3 Pin LED Connector Quick Lock Wire Splice Connector

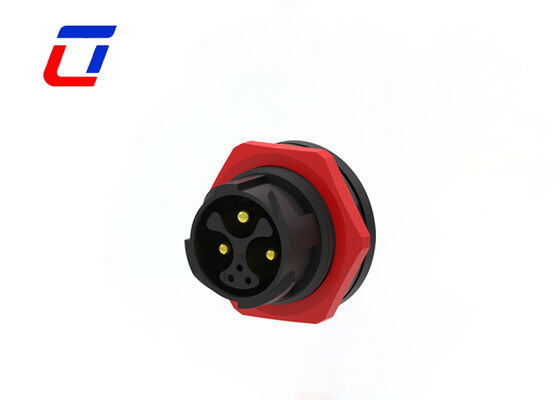

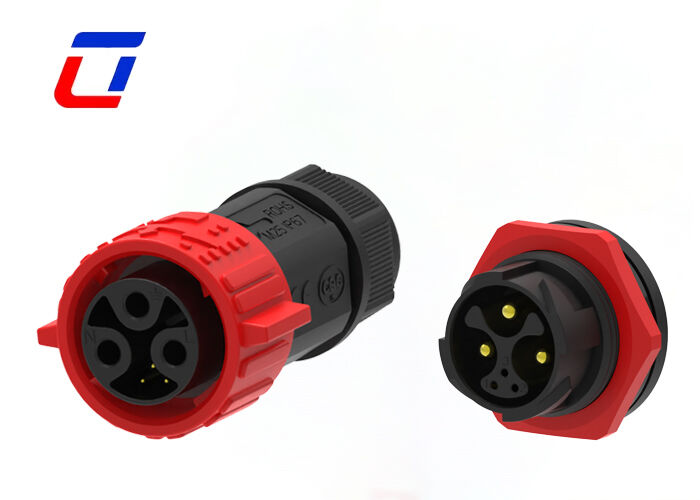

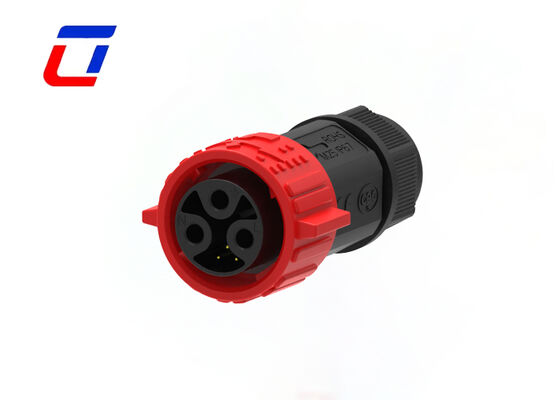

M25 3+3 Pin Reliable PA66 Waterproof Connectors IP67 Panel Mount Circular Connector with 15A Male Female Quick Lock Plug Socket

Main Features

Push lock quick release system for easy installation
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin and 2+20Pin
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Product Overview

The M25 3+3 pin connector features a dual-group layout design with two groups of pins rated at 15A and 5A respectively, providing flexible power adaptation for LED equipment. This design accurately meets the power splice needs of LED lamps and modules with different power requirements, enabling quick wire docking without complex transfer.

The quick-lock splice system allows wire connection and locking to be completed by hand without tools, ensuring convenience and efficiency. Once locked, the connection remains firm and tight, effectively resisting pulling and equipment vibration while preventing detachment and poor contact for stable LED equipment power supply.

With IP67 high-level waterproof performance, the connector features an integrated sealed structure with custom waterproof rubber ring that effectively blocks rainwater, sand, moisture, oil stains and other impurities. Suitable for complex outdoor and humid environments, it prevents short circuits and power interruptions while extending connector and equipment service life.

Technical Specifications

Connector System	Cable-to-Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Number of Positions	3+3
Number of Signal Positions	3
Contacts Preloaded	Yes
Operating Voltage (VAC)	600V max.
Operating Voltage (VDC)	600V max.
Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Entry Style	Side
Environmental Protection Type	Elastomer Sealed, Hermetically Sealed
O-Ring Material	Elastomer Sealed, Hermetically Sealed
Environmental Protection	Yes
Contact Current Rating (Max) (A)	15A max.
Circular Connector Contact Type	Pin-Socket
Connector Mounting Type	Cable Mount (Free-Hanging)
Mating Alignment Type	Keyed
Mating Retention	With
Wire Size (AWG)	20AWG, 18AWG, 16AWG, 14AWG
Operating Temperature Range (°C)	-40 ~105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
UL Flammability Rating	UL 94V-0
